SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.
We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

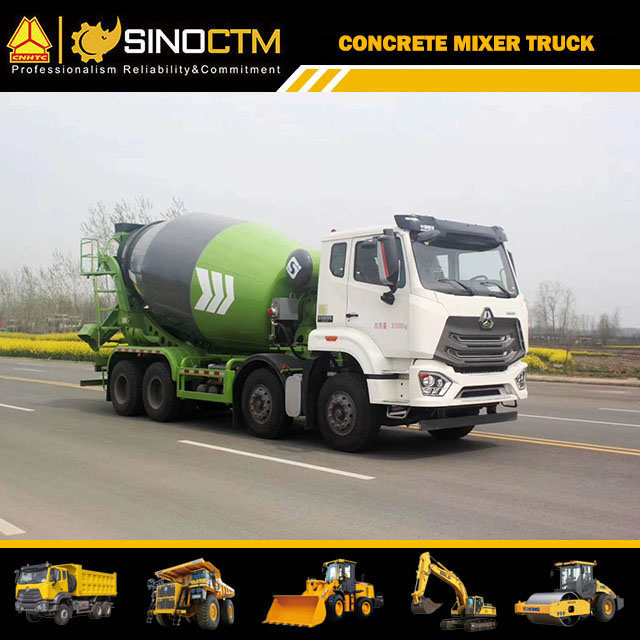

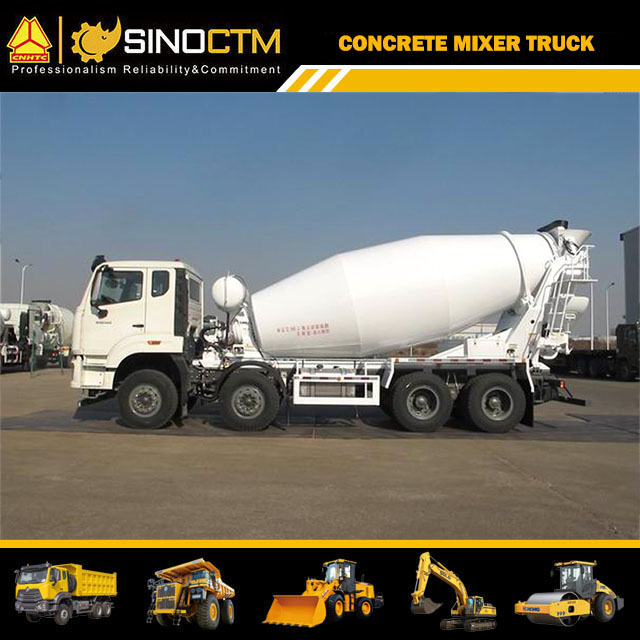

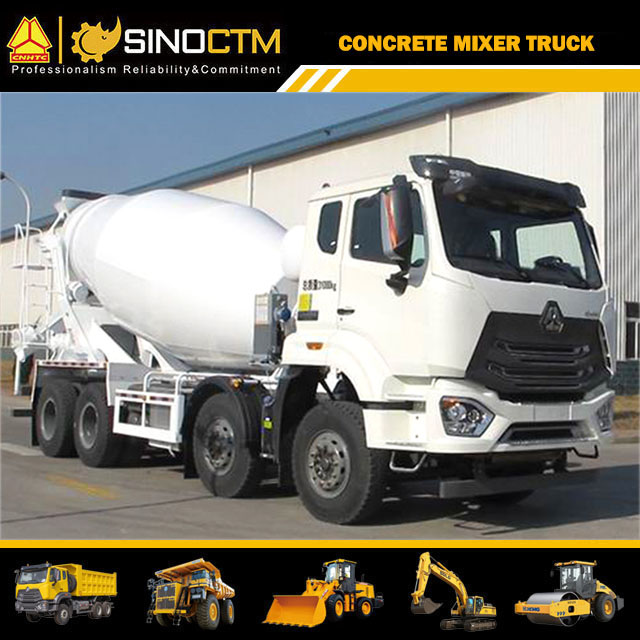

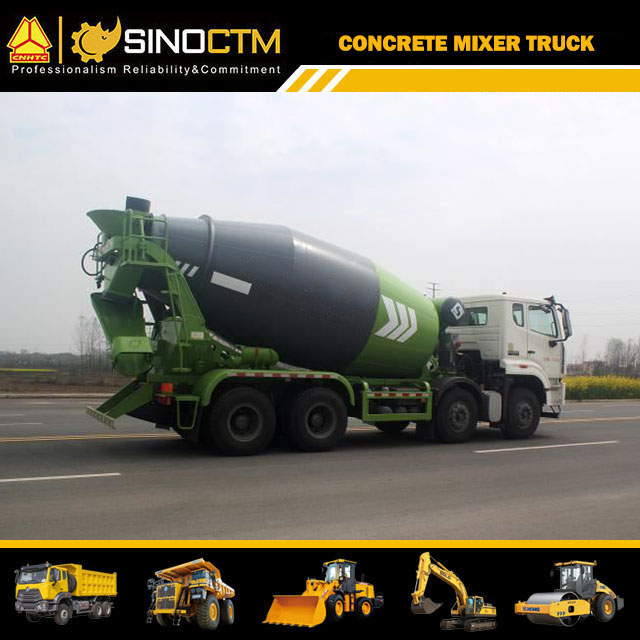

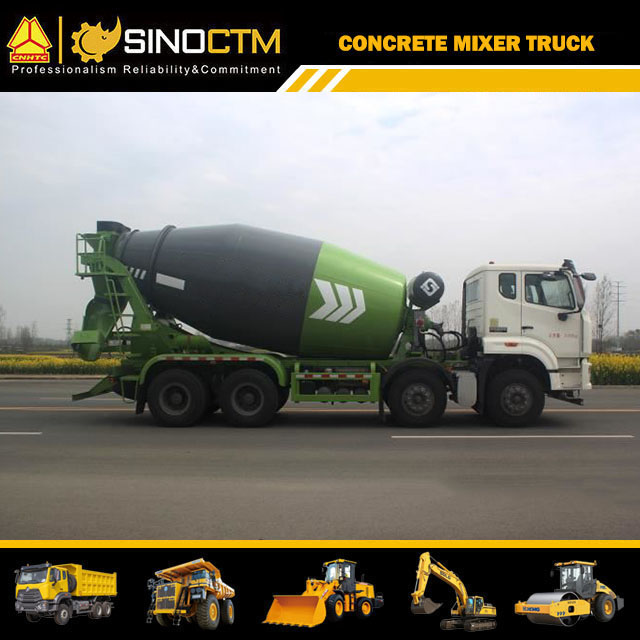

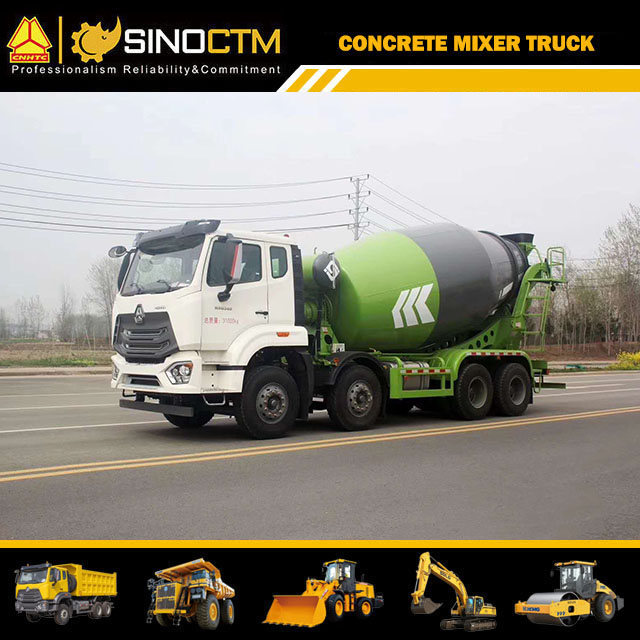

| SINOTRUK HOHAN 8x4 CONCRETE MIXER TRUCK SPECIFICATIONS |
| Truck Model | ZZ1317V326JB1(Left Hand Drive ) |
| Truck Brand | SINOTRUK-HOHAN |
| Dimension (LxWxH) (unloaded)mm | 10350×2550×3950 |
| Tank volume(m³) | Pump+Motor+Reducer(PMP)Mixing Volume(M³):12m³ |
| Approaching angle/ Departure angel (°) | 16/18 |
| Overhang (front/rear) (mm) | 1500/2300 |
| Wheel base (mm) | 1800+3200+1350 |
| Max. Driving speed (km/h) | 95 |
| Front axle loading capacity (kg) | 2*9500 |
| Rear axle loading capacity(kg) | 2*16000 |
| Curb weight (kg) | 14600 |
| Gross vehicle weight | 41000 |
| Cab Model | SINOTRUK H77L Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner. |
| Engine Model | Model | WP12.400E201(EURO II),400hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
| Rated Power(kw/rpm) | 294/2100 |
| Make WEICHAI, Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan |
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
| Transmission | Model | SINOTRUK HW19710 transmission ,10 forward and 2 reverse. |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking Brake(emergency brake) | Spring energy, compressed |
| Steering system | Model | BOSCH Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving) |
| Front axle | SINOTRUK 2*VGD95 Front Axle,new 2*9.5-ton front axles of equipped with drum brakes. |
| Rear axle | SINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. |
| Wheels &Tire | Rims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.Option:12R22.5 tubeless;315/80R22.5 tubeless;13R22.5 tubeless. |
| Electrical system | Electrics Operating voltage | 24V,negative grounded |
| Starter | 24V,7.5 Kw |
| Alternator | 3-phase,28V,1500 W |
| Batteries | 2x12 V,165 Ah |
| horn,headlamps,fog lights,brake lights,indicators and reverse light。 |
| Oil Tank | 400L fuel tank |
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
| The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |

Concrete mixer truck series
Our concrete mixing transporter has ten series, more than 60 varieties, best-selling throughout the country and more than 20 countries in the world. This product has more than 20 patents, which automatic centering of the four roller mechanism, not only overcame the generated the noise and vibration of tank when the high-speed rotation, and greatly improve the stability, security and reliability of the vehicle. Mixer blades manufactured by a large three-dimensional stamping molding, within the tank welding into two complex curved spiral, realized three-dimensional mixing, ensure uniform concrete mixing, no segregation, fast front-rear feeding and discharging speed, the residual amount of concrete is almost zero.
Our concrete mixing tank production line is composed of 26 sets of large tooling and equipment, adopted a number of advanced technologies. Through the steel sheet blanking, mould pressing blade, drum, plastic, automatic assembling, welding and so on more than ten working procedure to complete the manufacture of tanks. This production line can produce 10 kinds of specifications of the concrete mixing truck tanks volume. The technical level in the domestic leading position.
Our concrete mixing truck compact structure, rational layout, beautiful shape, advanced technology, praised and loved by foreign users.

Other products:
1. Dump Truck / Tipper Truck
2. Hohan tractor Truck/ prime mover truck
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement trailer
10. High-altitude operation truck
11. Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )
