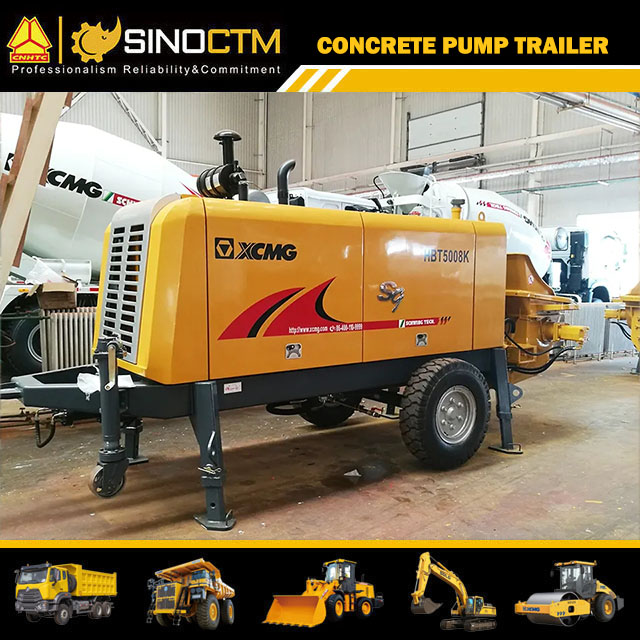

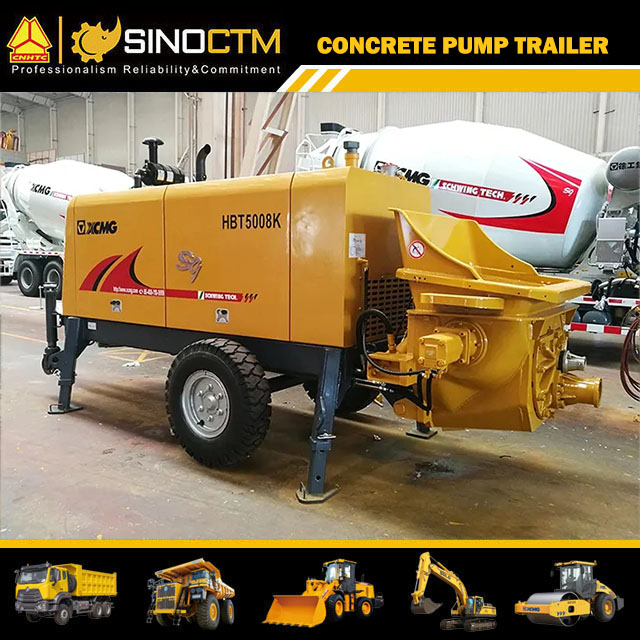

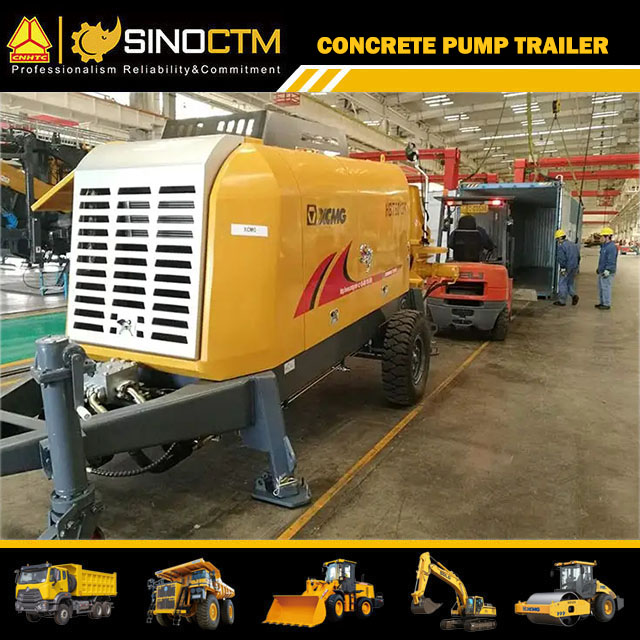

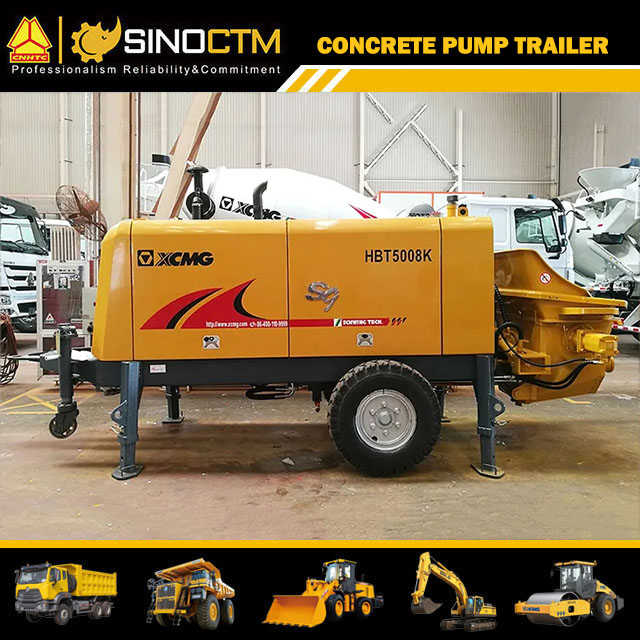

HBT5008K Concrete Pump Trailer 50m³/h

›

‹

›

HBT5008K Concrete Pump Trailer 50m³/h
HBT5008K Concrete Pump Trailer
Whole machine quality:5035kg
Engine:WP4G110E220;82/2200 kw/rpm
Concrete conveying capacity:50m³/h
Maximum output pressure:8Mpa
Conveying distance (vertical / horizontal):100m/400m
Inquiry Now →

Product Description

HBT5008K Concrete Pump Trailer 50m³/h

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

HBT5008K Concrete Pump Trailer 50m³/h

CONCRETE PUMP TRAILER
Shape sizemm5623×1884×2606
Whole machine qualitykg5035
Concrete conveying capacitym3/h50
Maximum output pressureMpa8
Conveying distance (vertical / horizontal)m100/400
Hopper volume / feeding heightm3/mm0.6/1320
Concrete slumpmm80-230
Concrete delivery bore diameter / strokemm180/1400
Active engine-diesel engine
Model/WP4G110E220
Rated powerkw82
Rated speedr/min2200
Hydraulic system
type/open
Hydraulic system pressureMpa32
Main oil pump
Model type/A11VLO130
Rated working flowL/min224
Pump cylinder diameter / strokemm90/1400
Hydraulic tank volumeL250
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

HBT5008K Concrete Pump Trailer 50m³/h

XCMG HBT5008K Concrete pump is a construction equipment which conveys concrete by pressure through pipeline.



Technical Characteristics:

1.It is equipped with special pipeline.

2.It can continuously complete horizontal and vertical conveyance of concrete along pipeline.

3.It is an ideal kind of existing concrete conveyance equipment.

4.It combines the production of ready-mixed concrete with pumping construction and uses coagulation.

5.The soil mixing truck carries out intermediate operation, which can realize continuous pumping and pouring of concrete.

6.It is used for conveying concrete in large concrete projects.

HBT5008K Concrete Pump Trailer 50m³/h
