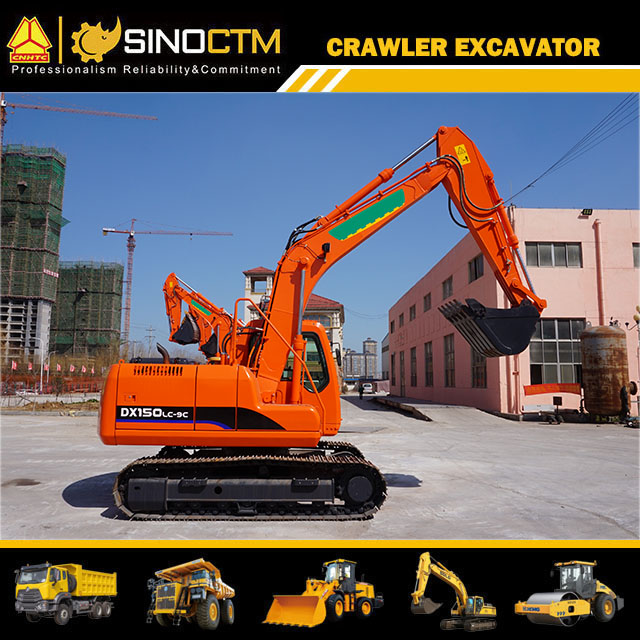

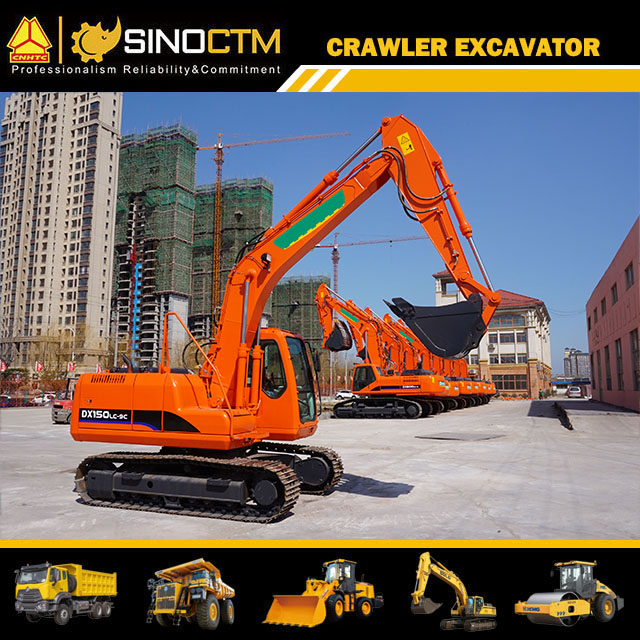

DX150PC-9 Excavator 15T

›

‹

›

DX150PC-9 Excavator 15T
DX150PC-9 Excavator
Bucket capacity:0.58m³
Operating weight:14800kg
Engine Model: CUMMINS QSB3.9
Gross Power:117/2200kW/rpm
Travel speed:5.04/3.01km/h
Max. digging height:8750mm
Max. digging depth:5625mm
Max. digging distance:8020mm
Transport Dimension:7662x2530x2980mm
Inquiry Now →

Product Description

DX150PC-9 Excavator 15T

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

DX150PC-9 Excavator 15T


DX150PC-9 EXCAVATOR SPECIFICATIONS
Basic parameters
Operating weight (kg)14800
Bucket capacity (m3)0.58
Bucket breakout force77.4/81.3
Swing speed (r/min)10.1
Gradeability35
Boom length (mm)4600
Arm length (mm)2500
Engine
ModelCUMMINS QSB3.9/ISUZU 4BG1
Power (HP)117 / 125
Rated rotation speed(rpm)2200
Emission limitEuro 2
Track
Travel motor modelDoosan TM18VC
Track length (mm)3750
Track length on the ground (mm)3035
Track gauge(mm)1990
Travel speed5.04/3.01
Ground specific pressure(Km/h)35-36
Number of bottom rollers(Mpa)14
Number of carrier rollers2
Number of track shoes92
Hydraulic system
Hydraulic pump modelKawasaki K3V63
Swing motor modelDoosan M2X63CHB
Main control valve modelParker AV170
Flow rate(L/min)2*114
Relief valve setting(Mpa)32.34/34.3
Fuel tank capacity (L)273
Hydraulic tank capacity (L)152
Dimensions
Total length (mm)7662
Total width (mm)2530
Total height (boom top)(mm)2980
Total height (cab top)(mm)2742
Ground clearance(mm)894
Minimum ground clearance (mm)412
Tail swing radius (mm)2202
Width of undercarriage2590
Track shoe width (mm)600
Width of upper structure (mm)2530
Minimum swing radius (mm)2207
Maximum height at minimum swing radius (mm)6100
Counter weight clearance (mm)1910
Track length on the ground (mm)3035
Working range
Maximum digging height8750
Maximum dumping height6300
Maximum digging depth5625
Maximum vertical digging depth (mm)4650
Digging depth @ 2.5m5510
Maximum digging reach8160
Maximum digging reach at ground8020
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


DX150PC-9 Excavator 15T

Product features:

☆ Exclusive highly efficient hydraulic control system

☆Engine: ISUZU or Cummins

☆Main pump: Kawasaki

☆Control valve: Kawasaki or Parker Optional

☆Travel motor: Sunjin (Korea)

☆Swing motor: Sunjin (Korea)

☆Powerful travel traction

☆Effectively prevent mixing of soil and rock

☆Highly efficient and rapid operations

☆High-strength frame structure and greater ground clearance

☆Safe and open engine hood

☆Convenient and swift maintenance
