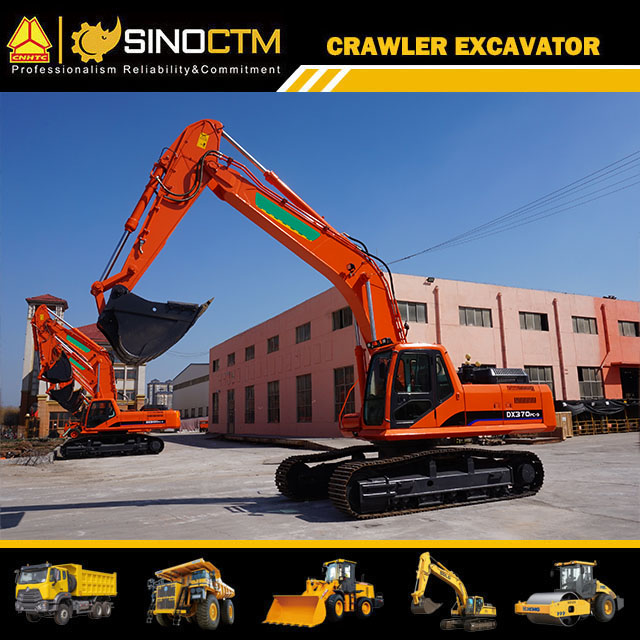

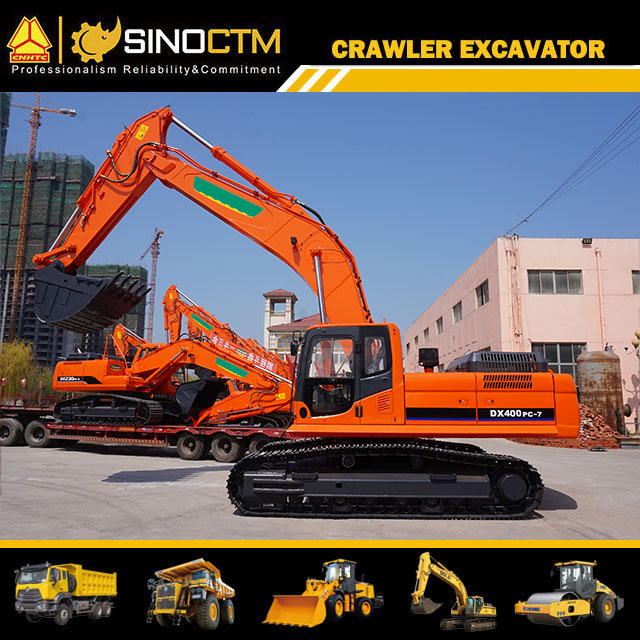

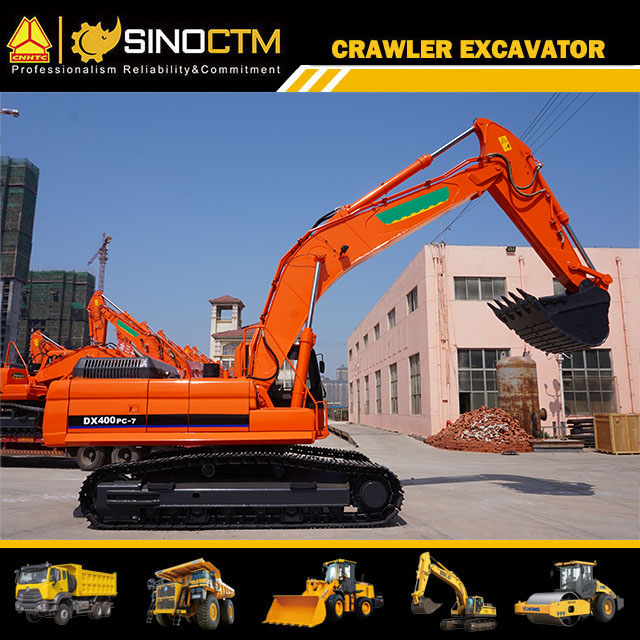

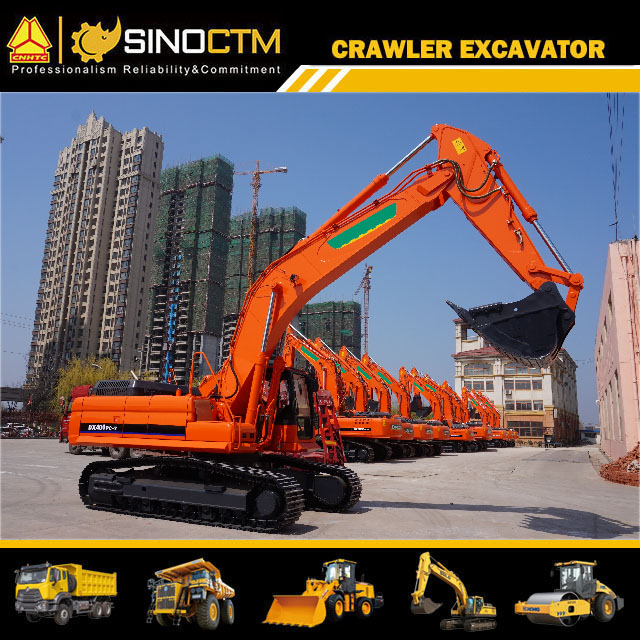

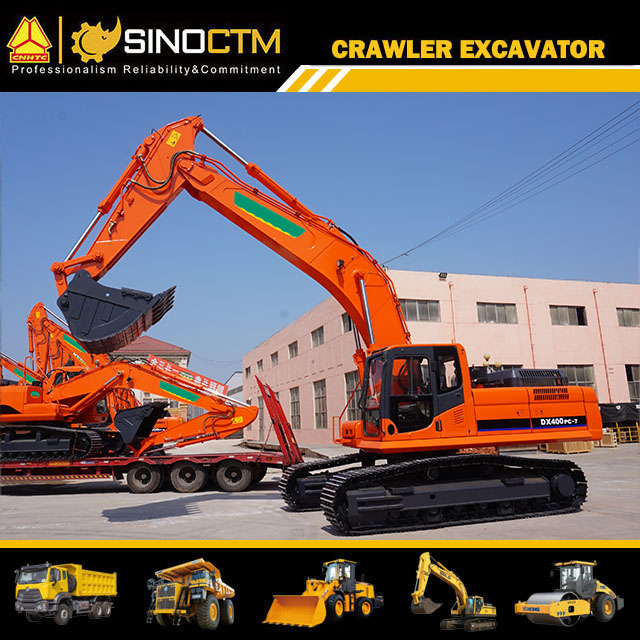

DX400PC-9 Excavator 38T

›

‹

›

DX400PC-9 Excavator 38T
DX400PC-9 Excavator
Bucket capacity: 1.9m³
Operating weight:37800kg
Engine Model: CUMMINS QSM11
Gross Power:340/1800kW/rpm
Travel speed:4.9/2.9km/h
Max. digging height:10100mm
Max. digging depth:7135mm
Max. digging distance:10635mm
Transport Dimension:11380x3350x3720mm
Inquiry Now →

Product Description

DX400PC-9 Excavator 38T

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

DX400PC-9 Excavator 38T


DX400PC-9 EXCAVATOR SPECIFICATIONS
Basic Parameters
Operating weight (T)37800
Bucket capacity (m3)1.9
Bucket breakout force240
Swing speed (r/min)8.2
Gradeability35
Boom length (mm)6500
Arm length (mm)2902
Engine
ModelCUMMINS QSM11
Power (HP)340
Rated rotation speed(rpm)1800
Emission limitEuro 2
Track
Travel motor modelDoosan TM70VC
Track length (mm)4975
Track length on the ground (mm)4050
Track gauge(mm)2750
Travel speed4.9/2.9
Ground specific pressure(Km/h)69
Number of bottom rollers(Mpa)16
Number of carrier rollers4
Number of track shoes96
Hydraulic System
Hydraulic pump modelKawasaki K3V180
Swing motor modelDoosan M2X250CGB
Main control valve modelKYB KVMG270
Flow rate(L/min)2*282
Relief valve setting(Mpa)34.3
Fuel tank capacity (L)624
Hydraulic tank capacity (L)415
Dimensions
Total length (mm)11380
Total width (mm)3350
Total height (boom top)(mm)3720
Total height (cab top)(mm)3200
Ground clearance(mm)1250
Minimum ground clearance (mm)545
Tail swing radius (mm)3530
Width of undercarriage3350
Track shoe width (mm)600
Width of upper structure (mm)3155
Minimum swing radius (mm)4485
Maximum height at minimum swing radius (mm)7900
Counter weight clearance (mm)2315
Track length on the ground (mm)4050
Working Range
Maximum digging height10100
Maximum dumping height7180
Maximum digging depth7135
Maximum vertical digging depth (mm)3810
Digging depth @ 2.5m6635
Maximum digging reach10635
Maximum digging reach at ground10485
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


DX400PC-9 Excavator 38T

Product features:

☆Exclusive highly efficient hydraulic control system

☆Engine:Cummins,ISUZU

☆Main pump: Kawasaki

☆Control valve: Kawasaki or KYB

☆Travel motor: Sunjin (Korea)

☆Swing motor: Sunjin (Korea)

☆Powerful travel traction

☆Effectively prevent mixing of soil and rock

☆Highly efficient and rapid operations

☆High-strength frame structure and greater ground clearance

☆Safe and open engine hood

☆Convenient and swift maintenance

DX400PC-9 Excavator 38T

Other products:

1. Dump Truck / Tipper Truck

2. Hohan tractor Truck/ prime mover truck

3. Truck with crane / Truck mounted crane

4. Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement trailer

10. High-altitude operation truck

11. Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )
