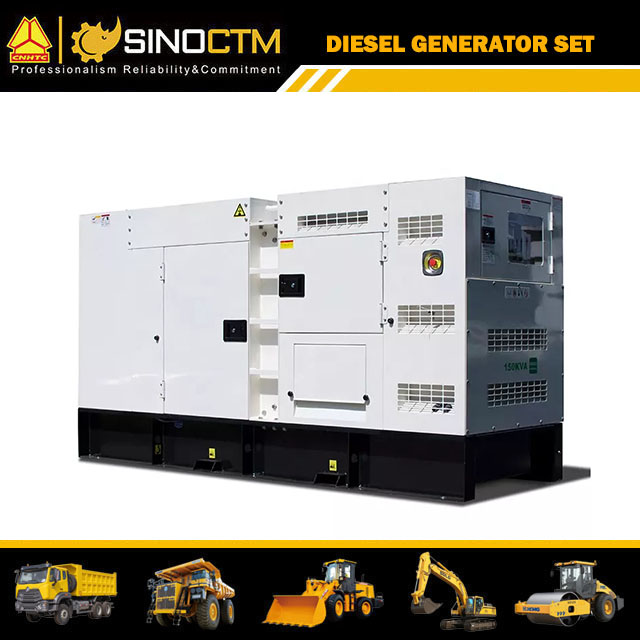

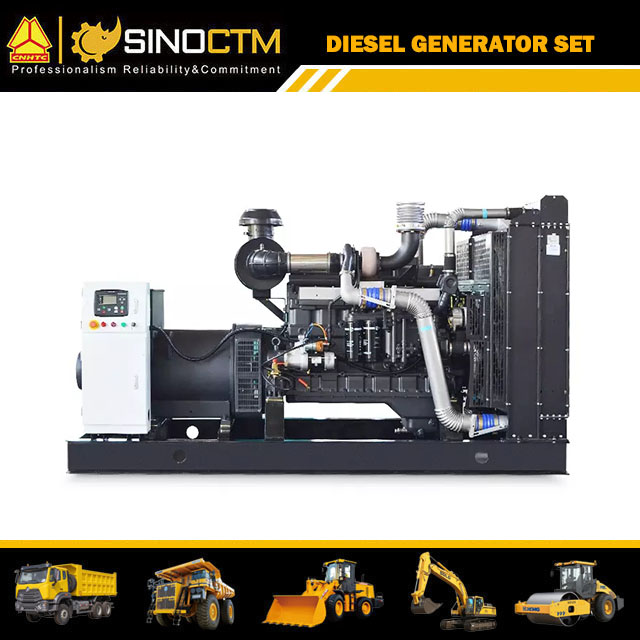

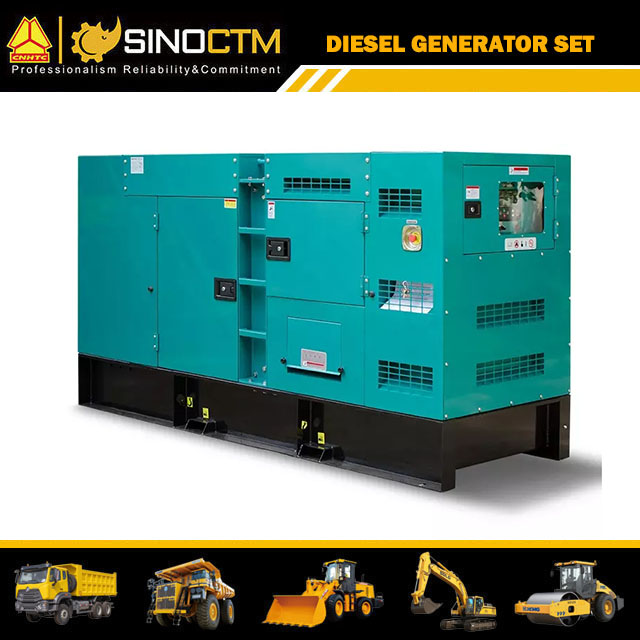

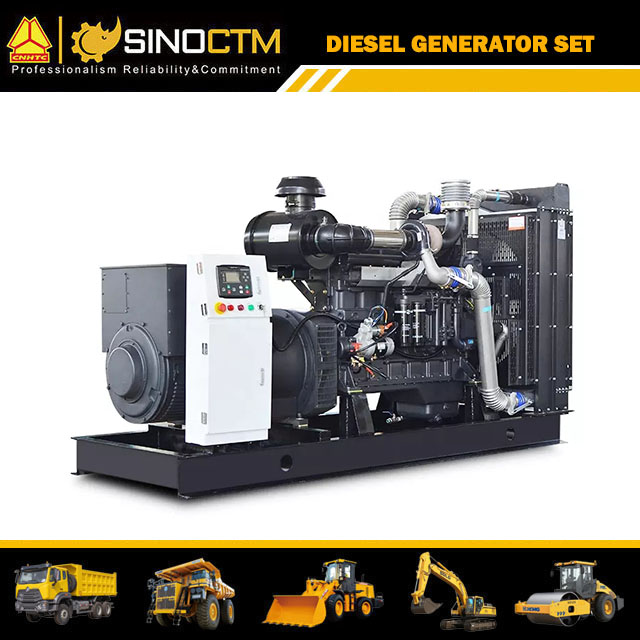

DIESEL GENERATOR SET SHANGCHAI SERIES(Power Range:50KW-1600KW)

›

‹

›

DIESEL GENERATOR SET SHANGCHAI SERIES(Power Range:50KW-1600KW)
Shangchai series diesel engine generator units are selected from Dongfeng 135 of Shanghai Diesel Engine Co.,Ltd D114,and C121.Supported by our corporation's engines and counterparts of other national brands,the units are favored by customers due to the good power,economy,reliability,low operation cost,and national chain warrant and accessories supply.
Inquiry Now →

Product Description

DIESEL GENERATOR SET SHANGCHAI SERIES(Power Range:50KW-1600KW)

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

DIESEL GENERATOR SET SHANGCHAI SERIES(Power Range:50KW-1600KW)


Set TyreRated OutputMotor TypePrime/StandbyOverall Size(L*W*H)Weight
XG-50GF50/62.5KW/KVASC4H95D262/68KW1950*750*1300mm950kg
XG-75GF75/93.75KW/KVASC4H115D278/86KW1900*900*1300mm1050kg
XG-100GF100/125KW/KVASC4H160D2105/116KW2000*900*1300mm1150kg
XG-120GF120/150KW/KVASC4H180D2120/132KW2100*900*1300mm1300kg
XG-150GF150/187.5KW/KVASC7H230D2154/170KW2500*900*1630mm1600kg
XG-200GF200/250KW/KVASC8D280D2204KW2600*900*1630mm1950kg
XG-250GF250/312.5KW/KVASC9D340D2255KW3100*1020*1780mm1950kg
XG-300GF300/375KW/KVASC12E460D2338KW3100*1020*1780mm2700kg
XG-350GF350/437.5KW/KVASC15G500D2373KW3100*1020*1780mm2850kg
XG-400GF400/500KW/KVA12VBZD404/445.5KW3500*1400*1850mm4000kg
XG-450GF450/562.5KW/KVA12VBZD2460/505KW3500*1400*1850mm4500kg
XG-500GF500/625KW/KVA12VBZD1505/555KW3600*1400*1850mm4500kg
XG-550GF550/687.5KW/KVAS6RZ-PTA-C575/635KW4023*1810*1953mm5750kg
XG-600GF600/750KW/KVAS6RZ-PTAA-C455/710KW4023*1810*1953mm5750kg
XG-700GF700/875KW/KVASC33W990D2726KW4850*1750*2200mm6280kg
XG1000GF1000/1250KW/KVAS12R-PTA-C1080/1190KW4650*2100*2600mm9100kg
XG1100GF1100/1375KW/KVAS12R-PTA2-C1165/1285KW4595*2156*2700mm9600kg
XG1200GF1200/1500KW/KVAS12R-PTAA2-C1277/1404KW4595*2156*2700mm10000kg
XG1400GF1400/1750KW/KVAS16R-PTA-C1450/1950KW5040*2486*2931mm11100kg
XG1500GF1500/1875KW/KVAS16R-PTA2-C1600/1895KW5382*2486*2931mm11750kg
XG1600GF1600/2000KW/KVAS16R-PTAA2-C1684/1895KW5875*2392*3453mm14400kg


DIESEL GENERATOR SET SHANGCHAI SERIES(Power Range:50KW-1600KW)

We supply multiple brands of generator set, such as: Cummins, Volvo, Deutz, Doosan Daewoo, MTU, Ricardo, Perkins, Shangchai, Weichai, Yuchai etc. The style of genset is varied, such as: container genset, trailer genset, portable trailer genset, soundproof genset, low noise genset, and silent genset, etc. Besides, we also supply design and construction of the noise reduction project up to the customer's requirements.



At present, ours many of generator sets are being reliably operated in fields like telecommunications, banking, security industry, airports, hospital, transportation, oil fields, military industry and the clients have been distributed around the globe. All staff in ours sparing no efforts to make the ours brand a symbol for reliable quality, advanced technology, first-class performance, an environment friend, and long operating life.

DIESEL GENERATOR SET SHANGCHAI SERIES(Power Range:50KW-1600KW)

Characteristics of Our low noise diesel generators

1. Low noise, overall compact structure, little space occupation;

2. The box body is detachable structure, it is made of steel plate, and the surface is coated with high performance antirust paint; Meanwhile,

it is with noise reduction

and rainproof function.

3. The inside of the boby adopts multilayer barrier impedance mismatch noise elimination structure and built in large impedance silencer.

4. The box body structure design is reasonable; A large capacity oil tank is arranged inside the body; At the same time, two inspection doors

are arranged at the left

and right side of the body in order to facilitate the genset troubleshooting.

5. At the same time, the observation window and the emergency stop button are set on the box body so as to observe the running state of the genset as well as stop

the machine at the fastest speed in case of emergency so as to avoid damage to the genset.

6. Bottom fuel tank for 8-12 hours operation

DIESEL GENERATOR SET SHANGCHAI SERIES(Power Range:50KW-1600KW)
