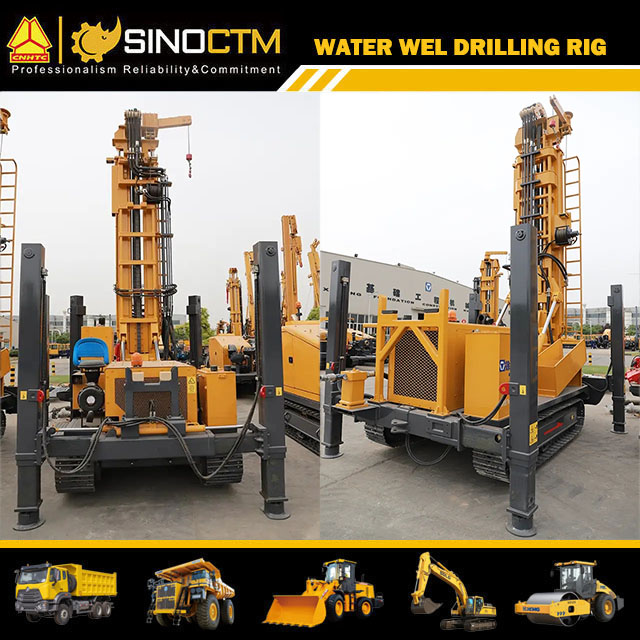

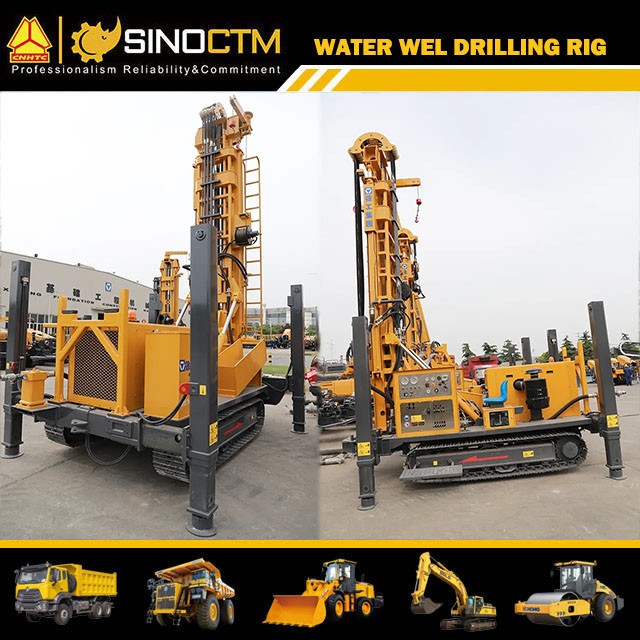

XCMG official 13.5ton water rig drilling machine XSL7/360

›

‹

›

XCMG official 13.5ton water rig drilling machine XSL7/360
Water Well Drilling Rig
Model:XSL7/360
Max. diameter of working floor:φ500mm
Drilling Depth:700m(φ102)
Engine:YUCHAI YC6J210-T300,154/2200kw/rpm
Max. Speed:3km/h
Grade ability:39%
Gross vehicle weight:13500kg
Transport Size(LxWxH):5390*2500*2880mm
Inquiry Now →

Product Description

XCMG official 13.5ton water rig drilling machine XSL7/360

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

XCMG official 13.5ton water rig drilling machine XSL7/360


XSL7/360 Water Well Drilling Rig configuration list
ParameterUnitXSL7/360
Drilling capabilityDrilling depthm700(φ102)
Max. diameter of working floormmφ500
Feeding systemMax. liting capacitykN360
Max. feeding capacitykN150
Max. lifting speedm/min32
Max. feeding speedm/min60
Strokemm7000
Top driveMax. torqueN.m14500/7250
Max. speedr/min150/75
I.Dmmφ55
Deck engineType
YC6J210-T300
Rated powerkW154
Tool winchHoisting capacitykN15
Breakout deviceMax. breakout torqueN.m32000
Mud pipeI.Dmmφ55
Max. pressureMPa8
ChassisHighest speedkm/h3
Max. climbing gradient%39
Max. ground clearance of crawlermm1320
Max. inner distance between front support legsmm3020
Max. iner dstance between back support legsmm2840
Working dimensionmm4850*2840*9900
Transportation dimensionmm5390*2500*2880
Weightt13.5
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


XCMG official 13.5ton water rig drilling machine XSL7/360

XCMG official 13.5ton water rig drilling machine XSL7/360

XSL series deep(water) well drlling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency.

Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.

The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
