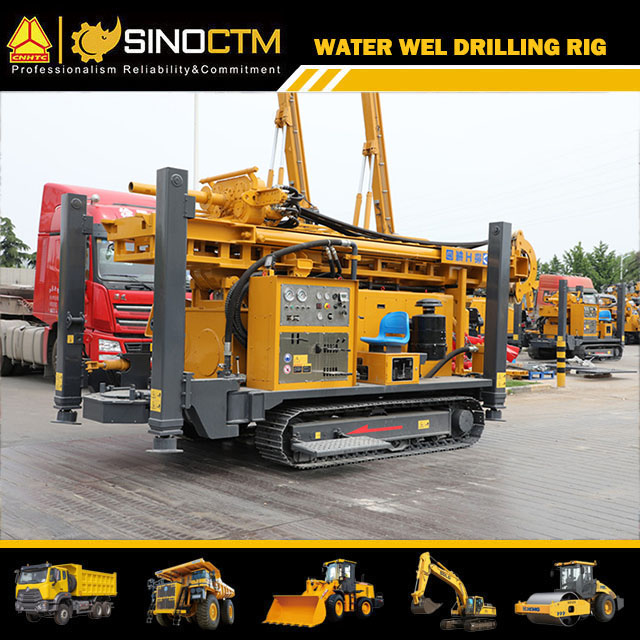

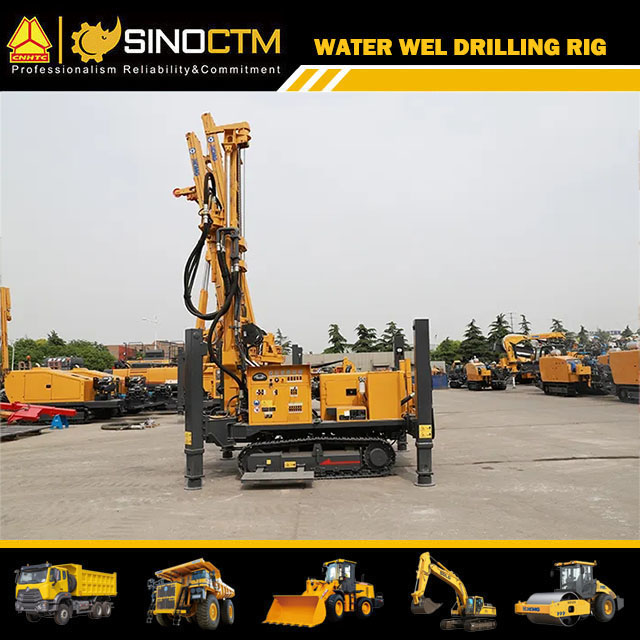

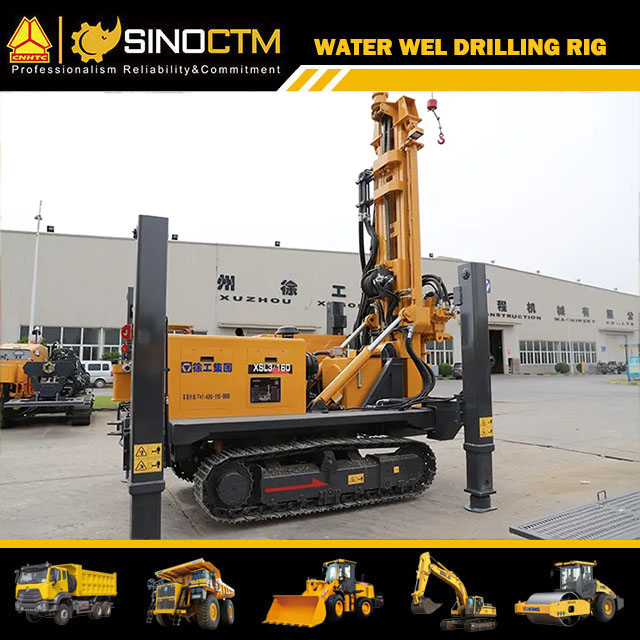

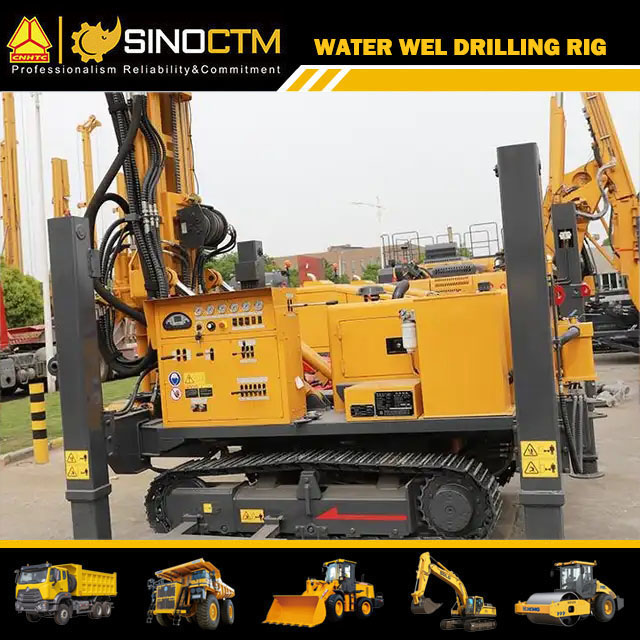

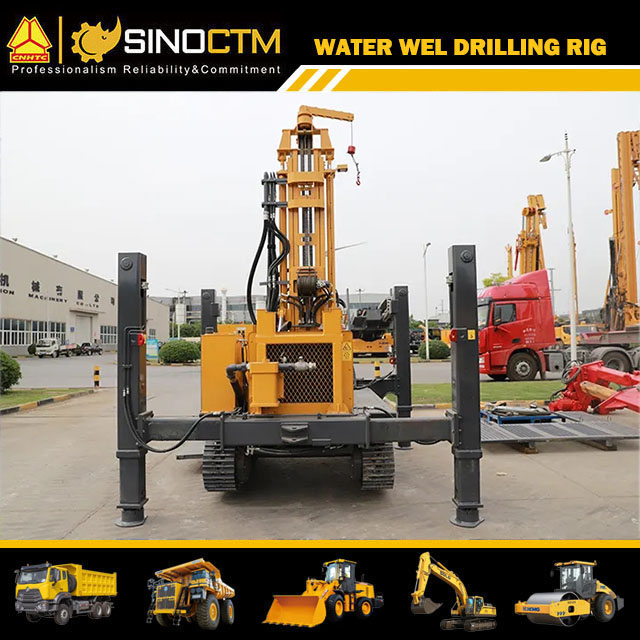

Water Well Drilling Rig
Model:XSL10/500
Max. diameter of working floor:φ500mm
Drilling Depth:1000m(φ89)
Engine:YUCHAI YCA08260-T301,191/2100kw/rpm
Max. Speed:3km/h
Grade ability:39%
Gross vehicle weight:19500kg
Transport Size(LxWxH):12730*2250*3030mm
Inquiry Now →

Product Description

XCMG official 19.5ton rig water well drill machine XSL10/500

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

XCMG official 19.5ton rig water well drill machine XSL10/500


ParameterUnitXSL10/500
Drilling capabilityDrilling depthm1000(φ89)
Max. diameter of working floormmφ500
Feeding systemMax. liting capacitykN520
Max. feeding capacitykN160
Max. lifting speedm/min31
Max. feeding speedm/min46
Strokemm7000
Top driveMax. torqueN.m20000/10000
Max. speedr/min70/140
I.Dmmφ105
Deck engineType
YCA08260-T301
Rated powerkW191
Tool winchHoisting capacitykN15
Breakout deviceMax. breakout torqueN.m40000
Mud pipeI.Dmmφ76
Max. pressureMPa8
ChassisHighest speedkm/h3
Max. climbing gradient%39
Max. ground clearance of crawlermm1300
Max. inner distance between front support legsmm3000
Max. iner dstance between back support legsmm2840
Working dimensionmm6800*3250*12900
Transportation dimensionmm12730*2250*3030
Weightt19.5



XCMG official 19.5ton rig water well drill machine XSL10/500

XCMG official 19.5ton rig water well drill machine XSL10/500

XSL series deep(water) well drlling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency.

Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.

The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.

XCMG official 19.5ton rig water well drill machine XSL10/500

XCMG official 19.5ton rig water well drill machine XSL10/500
