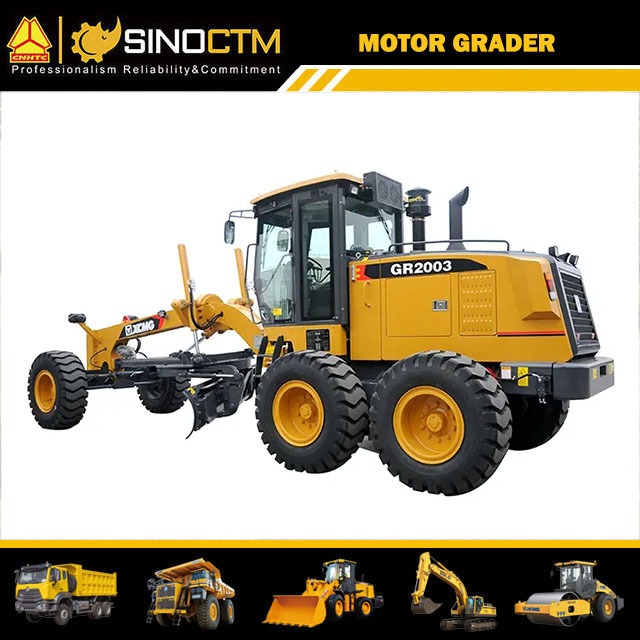

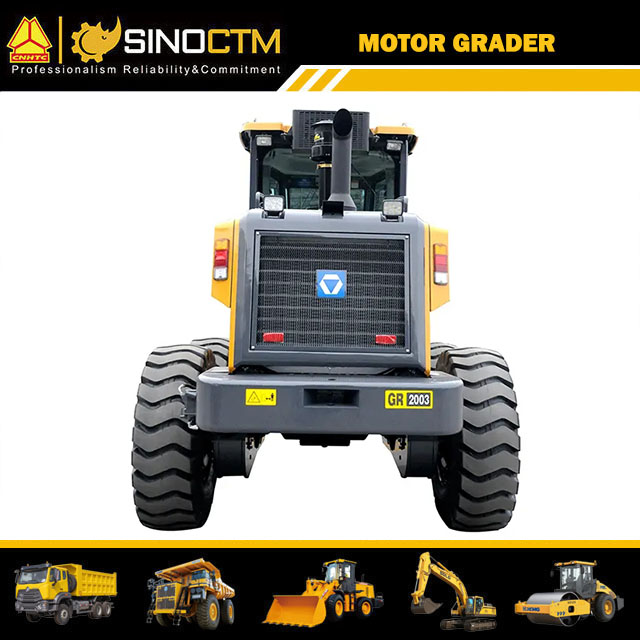

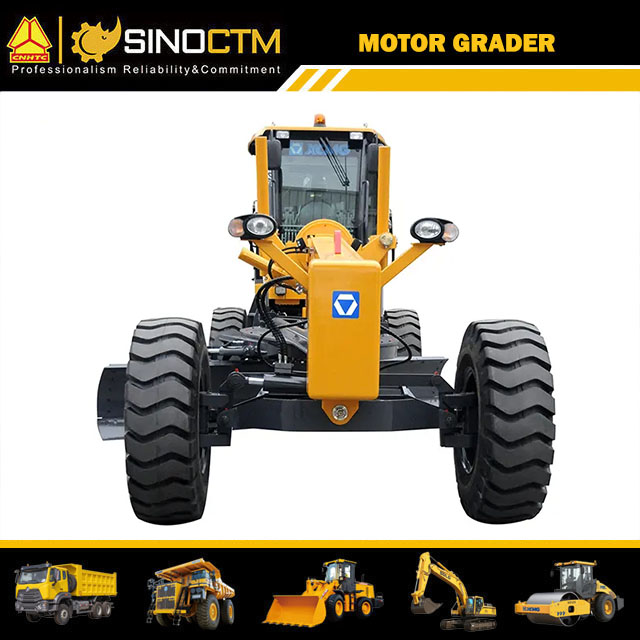

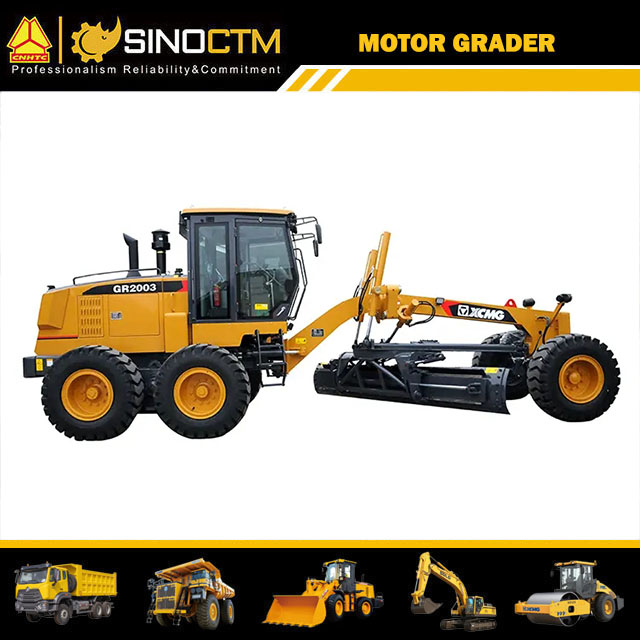

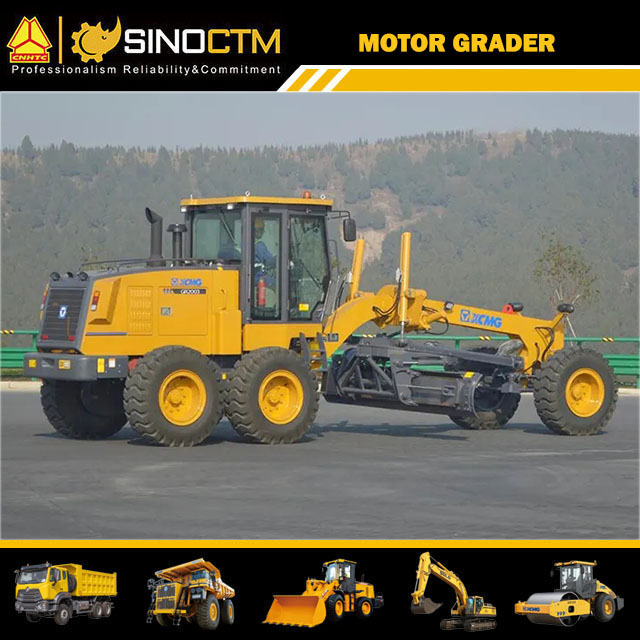

XCMG 200HP Large Motor Grader Gr2003 with Blade and Ripper

›

‹

›

XCMG 200HP Large Motor Grader Gr2003 with Blade and Ripper
GR2003 Motor Grader
Total weight:16000kg
Engine:SC9DK200.1G3
Rated Power:147KW/2200rpm
Cutter size(length*height):4270x610mm
Max tractive force:82kN
Max speed ( forward/reverse ):38/23 km/h
Overall dimension:8900x2625x3420mm
Optional:Front dozer,Rear ripper
Inquiry Now →

Product Description

XCMG 200HP Large Motor Grader Gr2003 with Blade and Ripper

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

XCMG 200HP Large Motor Grader Gr2003 with Blade and Ripper


XCMG GR2003 MOTOR GRADER SPECIFICATIONS
Basic parametersEngine modelSC9DK200.1G3
Rated power/speed147kW/2200rpm
Overall dimension (standard)8900x2625x3420mm
Total weight (standard)16000 kg
Tire specification17.5-25
Ground clearance (front axle)430mm
Tread2156mm
Space of front and rear axles6219 mm
Space of middle and rear wheels1538 mm
Performance parametersForward velocity5/8/11/19/23/38km/h
Reverse speed5/11/23km/h
Tractive effort f=0.7582 kN
Maximum gradeability25%
Tire inflation pressure260kPa
Working system pressure20MPa
Transmission pressure1.3-1.8Mpa
Working parametersMaximum steering angle of front wheel±48°
Maximum slant angle of front wheel±17°
Maximum oscillating angle of front axle±15°
Maximum oscillating angle of equilibrium box±15°
Maximum steering angle of frame±27°
Minimum turning radius7.3m
Scrape knifeMaximum lift height400mm
Maximum cutting depth500mm
Maximum tilt angle90°
Cutting angle28°-70°
Angle of revolution360°
Length & chord height4270x610mm
Oil filling amountCoolant50L
Fuel tank280L
Engine24L
Transmission38L
Balancing box46L
Drive axle28L
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


XCMG 200HP Large Motor Grader Gr2003 with Blade and Ripper

XCMG Brand New 200HP Gr2003 Motor Graders China RC Tractor Road Wheel Motor Grader Price for Sale

1.Energy-saving and noise-reducing: adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%

2.Strong Power: Adopting Sichai High-efficiency State III Variable Power Engine.

3.With load rotation: to improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.

4.Efficient operation: The displacement of the hydraulic pump and the hydraulic motor is increase
