Cimc Tri-Axle 40FT 60t Flatbed Container Chassis Semi Trailer Truck Trailer Tractor Trailer

›

‹

›

Cimc Tri-Axle 40FT 60t Flatbed Container Chassis Semi Trailer Truck Trailer Tractor Trailer

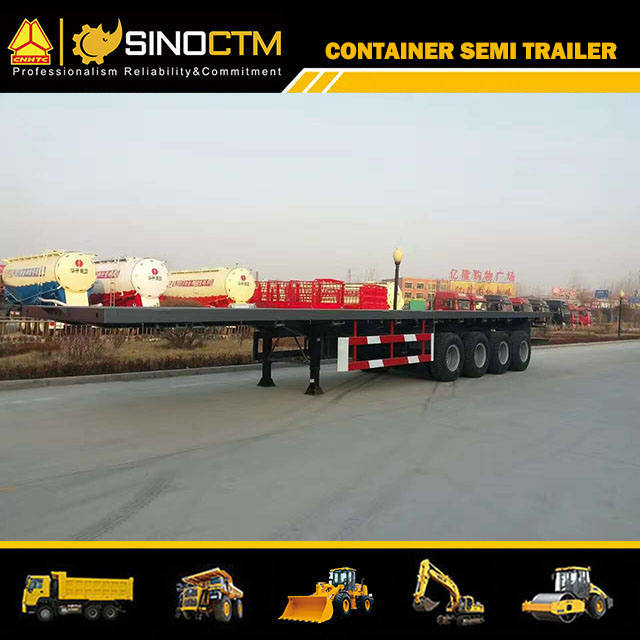

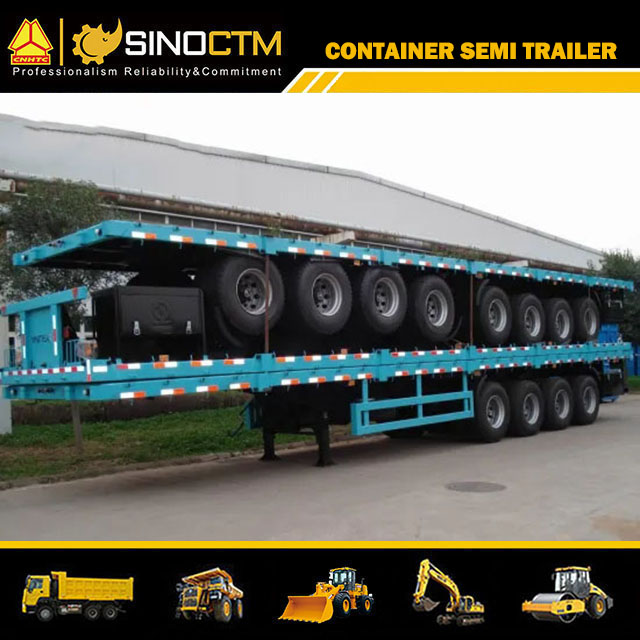

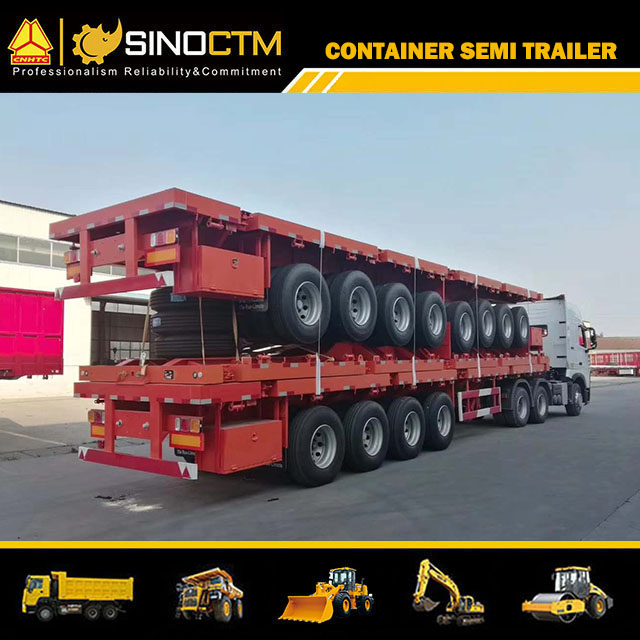

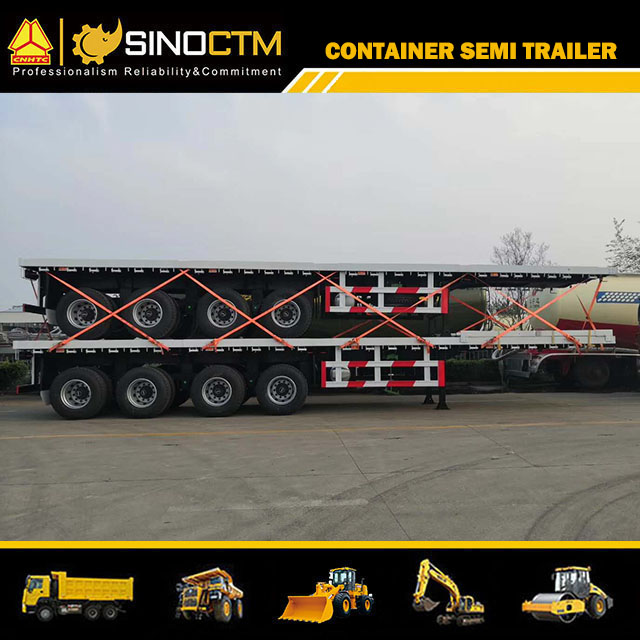

Four Axle Flatbed Semi-Trailer
Size:12500mm*2500mm*1550mm
Axles: FUWA Brand 13Ton *4axles
Tire:12.00R20 *16pcs
Payload:60000kg
12units for 1x20ft 2x20ft 1x40ft
Inquiry Now →

Product Description

Cimc Tri-Axle 40FT 60t Flatbed Container Chassis Semi Trailer Truck Trailer Tractor Trailer

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

Cimc Tri-Axle 40FT 60t Flatbed Container Chassis Semi Trailer Truck Trailer Tractor Trailer


FOUR AXLE CONTAINER SEMI TRAILER SPECIFICATIONS
Tare weight8000kg
Size12500*2500*1550mm(12600*2650*1650mm)
Payload60Ton
Main beamHeavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14 mm; Bottom flange 16mm;Middle Flange 8mm;Height 500mm.
Side beam16# channel steel(Q235)
Cross member10# channel steel(Q235)
Floor3mm checkered plate
Front boardWithout
Side wallWithout
AxleFUWA brand 13T *4axles; Front axle liftable function;
SuspensionFront axle with air suspension series ,Rear 3axles leaf spring suspension
TyreTraingle brand 12.00R20  *16pcs
Wheel rim8.5-20  *16pcs
Kingpin2”/3.5” bolt-in king pin
Landing gear28Ton manual operating ,heavy duty landing gear
Braking systemRE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABSWithout
Twist lock12units for 1x20ft 2x20ft 1x40ft
Electrical systemVoltage 24V, Receptacle 7 ways (7 wire harness), Use high-grade LED lights. One set 6-core standard Cable.
PaintingComplete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint;Wax spray.
AccessoriesOne standard tool box;Two spare tire carrier;One crank;One shaft head wrench.
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


Cimc Tri-Axle 40FT 60t Flatbed Container Chassis Semi Trailer Truck Trailer Tractor Trailer

Main Features

Container Flatbed Semi Trailers, offer the container trailers to maximize the payload. Our flatbed container trailer adopt advanced design concept. After fully understanding and analysing the transportation environment in different countries. Also the length of the trailers can be customized, like 45ft, 48ft, or 53ft container transportation trailers.



Our Container flatbed trailer is designed for stevedoring and transporting 1x40', 1x 20'or 2x20'ISO Cargo Containers and loose cargos. To make sure the servise life of the semi trailers, all the apare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.



Cimc Tri-Axle 40FT 60t Flatbed Container Chassis Semi Trailer Truck Trailer Tractor Trailer


Introduction of production process

A.Steel auto cutting

B.Main beam auto submerged arc welding

C.Chassis reversal ensure every part been welding well

D.Shot blasting for rust cleaning

E.F.Welding by experienced worker

G.Final cleaning welding slag by worker

H.Dust-free painting line

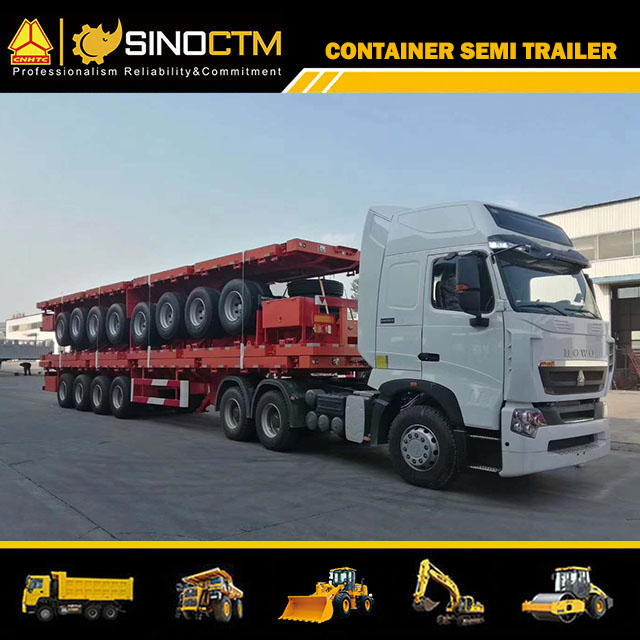

Our flatbed truck semi trailer with multi-function , It's designed to carry long log , tube , 20ft 40ft container or bulk cargo. Our flatbed trailer can be match with SHACMAN , HOWO , FAW , BENZ ,  VOLVO , HINO , MAN and other brand tractor truck well.  In this case , our truck semi trailer makes the transportation much more flexible .

Cimc Tri-Axle 40FT 60t Flatbed Container Chassis Semi Trailer Truck Trailer Tractor Trailer

Other products:

1. Dump Truck / Tipper Truck

2. Hohan tractor Truck/ prime mover truck

3. Truck with crane / Truck mounted crane

4. Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement trailer

10. High-altitude operation truck

11. Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )
