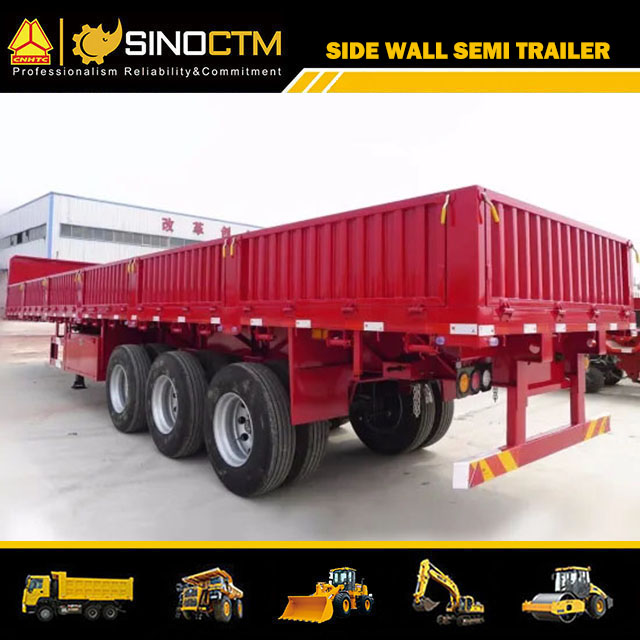

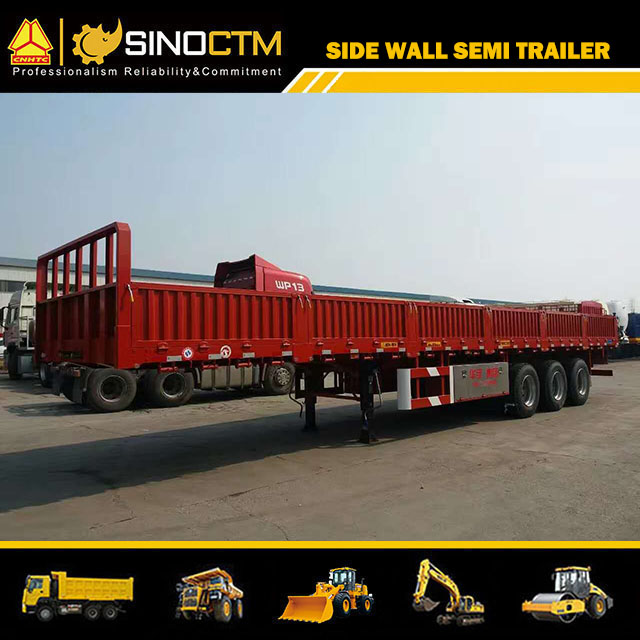

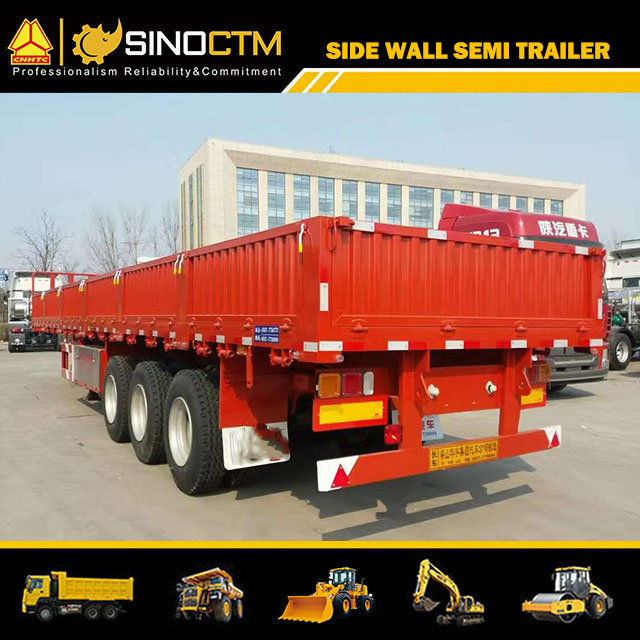

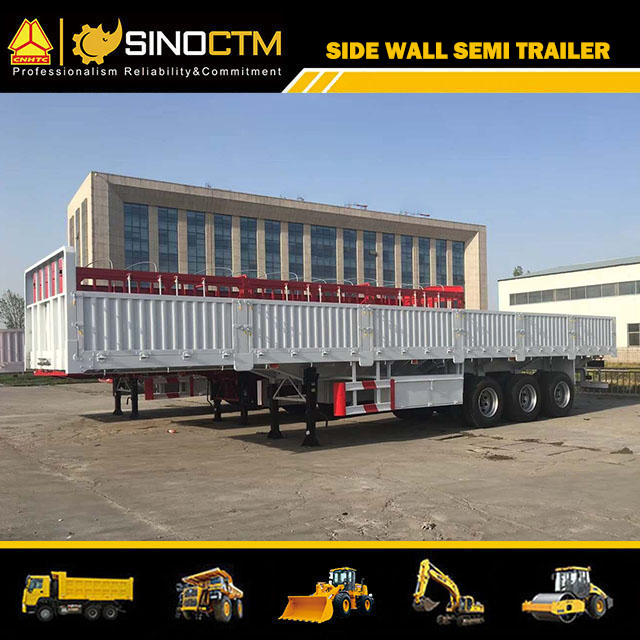

3axles Side Wall/Side Board/Side Drop Semi Trailer for Container and Cargo

›

‹

›

3axles Side Wall/Side Board/Side Drop Semi Trailer for Container and Cargo
Three Axle Sidewall Semi-Trailer
Total outside approx.:12700*2650*2860mm
Dead weight approx.:6500kg
Payload approx:50000kg
Axles: 13Ton *3axles
Tire:12R22.5 *12 units
Bucket dimensions:
12500*2650*800mm
Inquiry Now →

Product Description

3axles Side Wall/Side Board/Side Drop Semi Trailer for Container and Cargo

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

3axles Side Wall/Side Board/Side Drop Semi Trailer for Container and Cargo


THREE AXLE SIDE WALL SEMI TRAILER
Tare weight6500kg
Payload40-50Ton
Overall Size12700mm*2650mm*2860mm
Inside Size12500*2650*800mm
Main beamHeavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes.Upper flange 14mm;Bottom flange 16mm;Middle Flange 8 mm ,Height 500mm;
Side beam16# channel steel(U-steel)
Cross member10# channel steel(U-steel)
Floor3mm checkered plate
Side wallHeight 600mm thickness 1.2mm
Front boardManufacture Standard Height 1200mm
AxleFUWA  brand 13T *3 axles
SuspensionMechanical suspension American type
Leaf springLeaf spring 10pcs*90mm*13mm
Tyre12R22.5 *12units
Wheel rim9.0-22.5 *12pcs
Kingpin2"/3.5" bolt-in king pin Optional upon choice
Landing gear28T two-speed, manual operating ,heavy duty landing gear
Braking systemRE6 relay valve ;T30/30 spring brake chamber;40L air tanks .Parking braking spring energy, compressed air operating on rear wheels
ABSNo.  Optional upon choice
Electrical systemVoltage 24V, Receptacle 7 ways (7 wire harness),LED lights,One set 6-core standard cable.
PaintingComplete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint,Use high-grade polyurethane paint,wax spray.
Twist lock12units or As clients order
AccessoriesOne standard tool box.One spare wheel carrier chained mode.One crank.One shaft head wrench.Rope hook casting model.Tight rope device *10units per side.
OtherAccording to requirtments
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


3axles Side Wall/Side Board/Side Drop Semi Trailer for Container and Cargo

We are the top one and professional semi-trailer supplier.

 We can give you better product and favorable price.

 SINOCTM Vehicle has successfully entered into over 50 countries around the world.



 The sidewall cargo semi trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo. The high side cargo trailer can be added with a container turn lock to transport the container.



Two axle sidewall trailer, Three axle dropside trailer, 4 axle high side trailer, grain trailer and the sidewall drawbar trailer. And load capacity has 30/40/60/80/100 tons for your choice. Customizable side wall height.

3axles Side Wall/Side Board/Side Drop Semi Trailer for Container and Cargo

SINOCTM produce high quality drop sides cargo flatbed semi-trailer is a specialized for carrying bulk cargo. Also the side walls can be disassembled, easy to deal with. It can save the shipping cost when shippment. All the key component and accessories of flat bed trailer with fence are purchased from qualified suppliers, Like JOST landing leg, famous German WABCO braking valve. Adopts 800mm and the height of fence is 300mm, the side wall without removing when carry the 40ft 20ft containers.
