LPG tanker semi-trailer , LPG transportation semitrailer , bullet lpg tanker trailer

›

‹

›

LPG tanker semi-trailer , LPG transportation semitrailer , bullet lpg tanker trailer

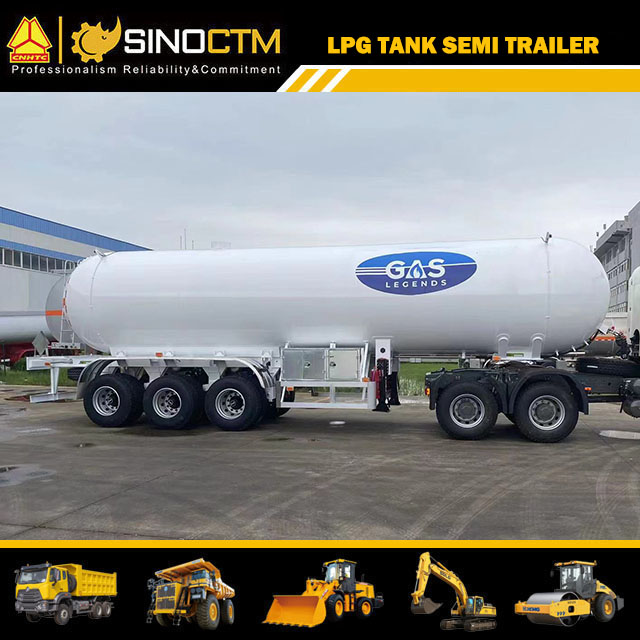

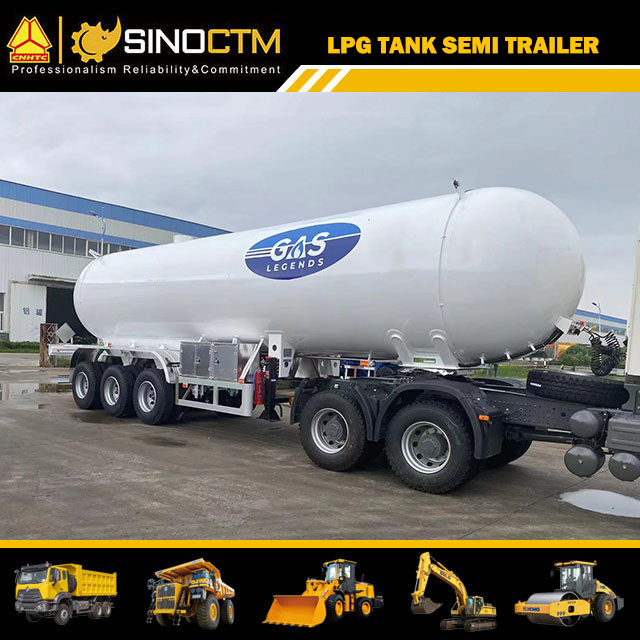

Three Axles 61.9CBM LPG Tanker Semi-Trailer
Tare weight:14100kg
Size:13580×2540×4000mm
Axles:13Ton *3 axles
Tire:12R22.5 tubeless Tyre *16sets
Volume:61.9CBM
Inquiry Now →

Product Description

LPG tanker semi-trailer , LPG transportation semitrailer , bullet lpg tanker trailer

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

LPG tanker semi-trailer , LPG transportation semitrailer , bullet lpg tanker trailer


THREE AXLES LPG TANK SEMI TRAILER SPECIFICATIONS
Tanker capacity61.9 cubic
Dimension13580*2540*4000mm
Design pressure1.61mpa
Design temperature-40-50℃
Filling mediumLPG
Hydraulic test pressure2.1MPa
Radiographic proportion100%
Air tight test pressure1.61MPa
ManholeDN450
Equipped with tanks reflective logo
Axles13ton FUWA*3
Suspensionmechanical suspension
Electric system1
Brake valve2
Energy storage brake2
Steel rim12
Tire12R22.5*12
Landing gear28T FUWA
Kingpin90#
Spare tire levelers2
The accessory tools1
Spare tire crank1
Landing gear crank1
Tire socket board1
Emergency cut-off valveGas phase QGJ43F-25 Liquid phase QGJ43F-25
Ball valveGas phase CQA-25P Liquid phase CQA-25P
Operation modeMachinery
LiquidometerUQZ-25P(200-2310mm)
Pressure indicating thermometersWTQ-280(-40-50℃)
Pressure gaugeYN-100T 0-1.61MPa
Valve box2
Tool box1
Safety valveA412F-25-20H
Fire extinguisher8Gg
Electrostatic drag stripC type
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


LPG tanker semi-trailer , LPG transportation semitrailer , bullet lpg tanker trailer

 LPG is the abbreviation of Liquefied Petroleum Gas.


LPG Trailer as known as a Propane semi Trailer is mainly used to transport various liquefied gases, including liquid ammonia,

propane, propylene, dimethyl ether, isobutyl fat, and butadiene.


Other liquefied gases that can be transported in the Propane tank hauler Trailer are methylamine and acetaldehyde. Under ideal

conditions, the maximum working pressure of the transporter is greater than or equal to 0.1 MPa.

LPG tanker semi-trailer , LPG transportation semitrailer , bullet lpg tanker trailer

GAS LPG tanker, is a special vehicle used for road transportation of liquefied gases (liquefied petroleum gas, propane, propylene, liquid ammonia, butadiene, isobutane, butane, isobutylene, etc.). Our LPG tank trailer choose carbon high-tensile steel material, welded by automatic Submerged-Arc processes. We adopt world famous brand of parts, like JOST, WABCO braking valve etc.

LPG Tanker trailer will be inspected before painting ensure every detail in good condition.

LPG tanker semi-trailer , LPG transportation semitrailer , bullet lpg tanker trailer

Other products:

1. Dump Truck / Tipper Truck

2. Hohan tractor Truck/ prime mover truck

3. Truck with crane / Truck mounted crane

4. Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement trailer

10. High-altitude operation truck

11. Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )

LPG tanker semi-trailer , LPG transportation semitrailer , bullet lpg tanker trailer
