| DD6857C10-COACH (Diesel) SPECIFICATION |
| OVERALL PARAMETERS |
| Overall Length (mm) | 8545 |
| Overall Width (mm) | 2500 |
| Overall Height(mm) | 3189/3289(AC) |
| GVW (kg) | 11500 |
| Axle Load (kg) | 3600/7900 |
| Wheelbase (mm) | 4300 |
| Curb Weight(kg) | 8300(AC), 7950 |
| Max Speed (km/h) | 100 |
| Rated Passenger Capacity(persons) | 37+1,2+2 |
| Front/rear Overhang(mm) | 1760/2485 |
| Approach/Departure Angle(°) | 12/9 |
| Front /Rear Tread (mm) | 1940/1800 |
| Fuel Type | Diesel |
|
|
| CHASSIS PART |
| Engine | YC4G200,147KW/2300rpm,200hp |
| Clutch | φ380 coil spring |
| Clutch Master & Slave Cylinder | CHINA BRAND |
| Transmission | S6-80/QI JIANG, 6 gear, manual |
| Speed Shift Control | Double flexible shaft control |
| Front Axle | 3.6T/DONGFENG |
| Rear Axle | 8T/DONGFENG |
| Braking System | Front disc rear drum |
| ABS | CHINA BRAND |
| Suspension | Air suspension |
| Tyre & Spare Tyre | 255/70R22.5, with spare tire |
| Rim | 8.25X22.5 |
| Centralized Lubrication | N/A |
| Steering Gear | Integral power steering/China Brand |
| Auxiliary Braking | Exhaust braking |
| Dryer | CHINA BRAND |
| Braking System Valves | CHINA BRAND |
| Expansion Tank | Stainless steel |
| Cooling System | Belt transmission structure |
| Fuel Tank Capacity | 150L |
| BODY PART |
| Body Structure | Semi-monocoque |
| Air Conditioning | 18000 KCal |
| Front Passenger Door | Single pneumatic aluminum alloy outward swing door |
| Middle Passenger Door | N/A |
| Windshield | Front windshield:laminated glassRear windshield: tempered glass |
| Driver Window | Sliding type, F green |
| Side Window | Sliding type, F green |
| Front Curtain | Single manual front sun visor |
| Seat Layout | 2+2,37+1 |
| Driver Seat | SJ-JZP-3A |
| Passenger Seat | LY-PBT-01 |
| Guide Seat | N/A |
| Step Number | Three steps |
| Floor & Floor Covering | Wooden floor, wear resistant floor covering |
| Instrument Panel | Softened type |
| Interior Mirror | Standard |
| Rear View Mirror | Manual electric defrosting rear view mirror |
| Heating | No heating with defroster |
| Ventilation | 2 pcs hatches without ventilators |
| Roof Light | 3 pcs roog lights |
| Driver Fan | Equipped |
| Driver Cup Holder | Equipped |
| CAN bus | CAN bus instrument |
| Audio-visual | MP3 player |
| Wiper | Horizontal type |
| Battery | 2 pcs 6QA-165 batteries |
| GPS Tachograph | Equipped, with 2 cameras |
| Fire Extinguishers | 2 pcs 4kg fire extinguishers in passenger compartment2 pcs in rear engine compartment |
| Safety Belt | Equipped |
| Safety Hammer | 5 pcs safety hammers with alarm function |
| Engine Compartment High Temperature Alarm | Equipped |
| Rear Compartment False Start | Equipped |
| Painting | Solid color paint/CHINA BRAND |
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
| The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |

Exceptional Quality Secures Driving Enjoyment
Safe, energy-saving and environmental design philosophy and proven workmanship bring exceptional and steady quality, which can fully meet with customers' diverse demands, naely passenger transportation, tourism and group activity; the ergonomic design makes the driver happy and worry free;
Intensive Caring, More Comfort

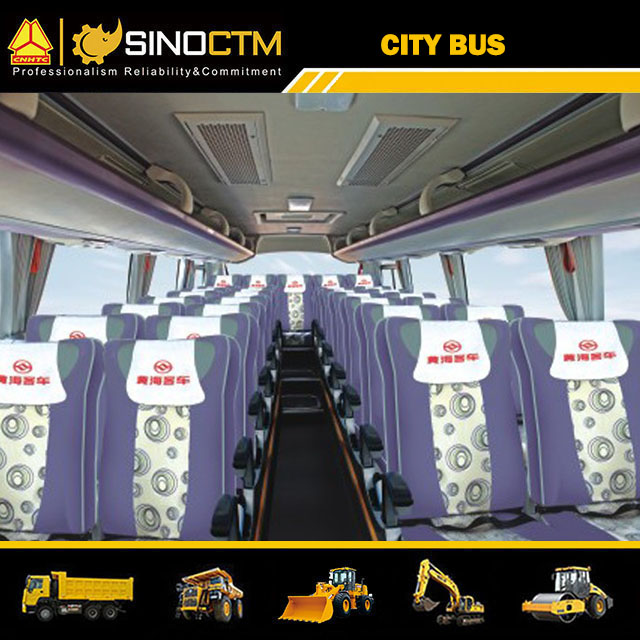

Beside the soft tone, the interior style is concise and generous; the onboard audio-visual system enriches the journey; the passenger door is equipped with LED lamp so that passengers may safely get on/off the vehicle at night; space between seats is maximized so that passengers can be fully extended.
Calm Driving, Mobility Enjoyment

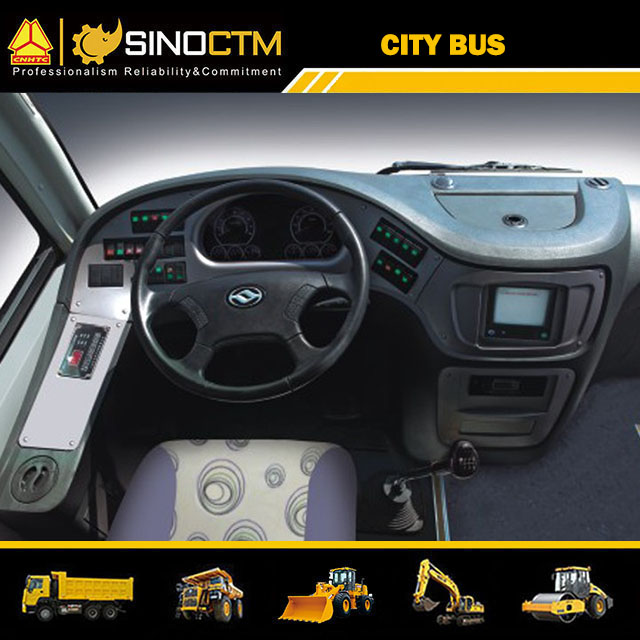

More spacious driver zone can provide a comfortable maneuverability environment; the foot pedal specially intended for the driver can effectively alleviate tiredness during long-haul driving; the dashboard is integrated with more advanced factors, and steady structure of the complete vehicle makes the driver calmly cope with changeable road conditions.
