SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.
We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

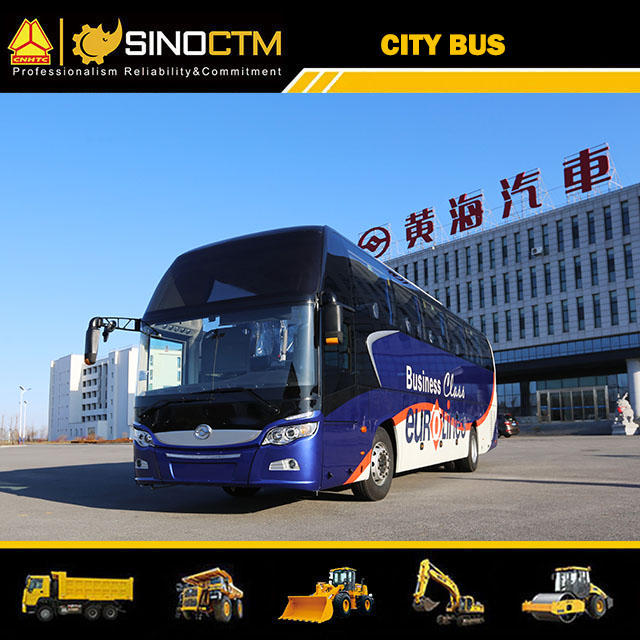

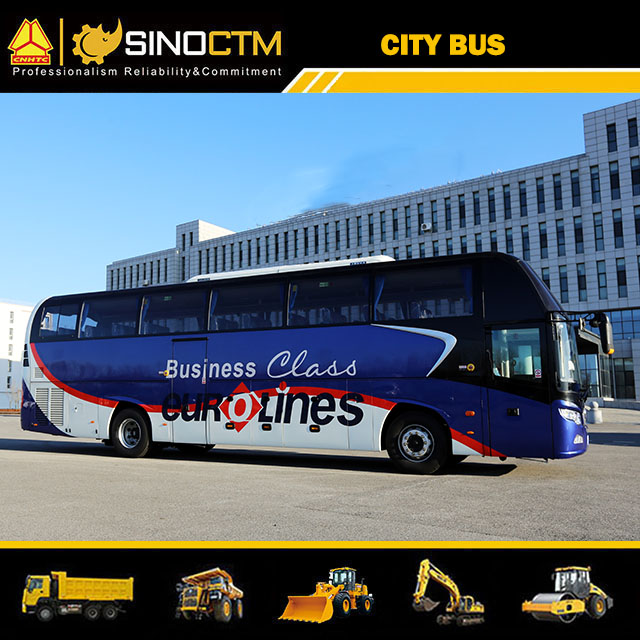

| DD6128C05-COACH (Diesel) SPECIFICATION |
| OVERALL PARAMETERS |
| Overall Length (mm) | 111985 |
| Overall Width (mm) | 2500 |
| Overall Height (mm) | 3815 |
| GVW (kg) | 18000 |
| Axle Load (kg) | 6500/13000 |
| Wheelbase (mm) | 6000 |
| Curb Weight (kg) | 13700 |
| Max Speed (km/h) | 100 |
| Rated Passenger Capacity (persons) | 51+1+1 |
| Front/Rear Overhang (mm) | 2535/3450 |
| Approach/Departure Angle (°) | 9/9 |
| Front/Rear Tread (mm) | 2077/1871 |
| Fuel Type | Diesel |
| Fuel Consumption | 23.8L/100km |
| CHASSIS PART |
| Engine | WP10 375(WEICHAI),276KW/2200rpm,375hp |
| Clutch | φ430 diaphragm spring clutch (SACHS BRAND) |
| Clucth Master & Slave Cylinder | CHINA BRAND |
| Transmission | 6DS150T, 6-gear, manual (FAST BRAND) |
| Speed Shift Control | Three flexible shaft control |
| Front Axle | 6.5T |
| Rear Axle | 13T/SG |
| Brake | Front disc, rear drum |
| ABS | WABCO |
| Suspension System | Air suspension |
| Tyre | 295/80R22.5 |
| Rim | 22.5X8.25 |
| Centralzied Lubrication | N/A |
| Steering Gear | Intergral power steering ( ZF BRAND) |
| Auxiliary Braking | Eddy current retarder +main reducer+generator |
| Dryer | WABCO |
| Braking System Valves | CHINA BRAND |
| Expansion Tank | Stainless steel |
| Cooling System | Huanghai Standard |
| Fuel Tank | 2x200L |
| BODY PART |
| Body Structure | Monocoque, through type |
| Air Conditioning | 28000Kcal |
| Front & Middle Passenger Doors | Front passenger door: single pneumatic aluminum alloy outward-swing door Middle passenger door: single pneumatic aluminum alloy outward-swing door |
| Windshield | Front windshield: laminated glass; upper windshiled greyRear windshield: tempered glass, grey |
| Driver Window | Built-in sliding type, F green |
| Side Window | Fixed glass, built-in sliding glass at the rear of both sides, grey |
| Front Curtain | Upper windshield: electric curtainLower windshield: manual curtain |
| Driver Side Sunshade | Equipped |
| Side Curtain (including rear curtain) | Equipped |
| Seat Layout | 2+2,52+1 |
| Driver Seat | SJ-YZP-3A |
| Passenger Seat | LY-HTG1-01 |
| Guide Seat | N/A |
| Step Number | Front 3 rear 5 steps |
| Floor | Wooden floor |
| Floor Covering | Wear resistant floor covering /CHINA BRAND |
| Instrument Panel | Softened type |
| Interior Mirror | Standard |
| Rear View Mirror | Manual electric defrosting |
| Heating | Independent heater +radiator, 180w internal and external circulation defroster |
| Ventilation | 2 hatches with ventilation fan |
| Roof Lamp | Light strips on both sides |
| Driver Fan | N/A |
| Driver Cup Holder | Equipped |
| CAN Bus | Equipped |
| Electronic Clock | Electronic clock with temperature display |
| Audio-Visual System | Disc player+ front 19' LCD+ microphone+color liquid crystal monitor |
| Wiper | Horizontal type (lower windshield) |
| Battery | 2 units 6QA-195 |
| GPS | Equipped |
| Fire Extinguisher | 2 units 4kg fire extinguishers;2 units automatic fire extinguishers in engine compartment |
| Safety Belt | Safety belt for whole vehicle |
| Safety Hammer | 5 pcs with alarm function |
| Engine Compartment & Retarder High Temperature Alarm | Equipped |
| Rear Compartment False Start | Equipped |
| Painting | Metallic paint/CHINA BRAND |
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
| The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |

Exceptional Quality Secures Driving Enjoyment
Safe, energy-saving and environmental design philosophy and proven workmanship bring exceptional and steady quality, which can fully meet with customers' diverse demands, naely passenger transportation, tourism and group activity; the ergonomic design makes the driver happy and worry free;
Intensive Caring, More Comfort

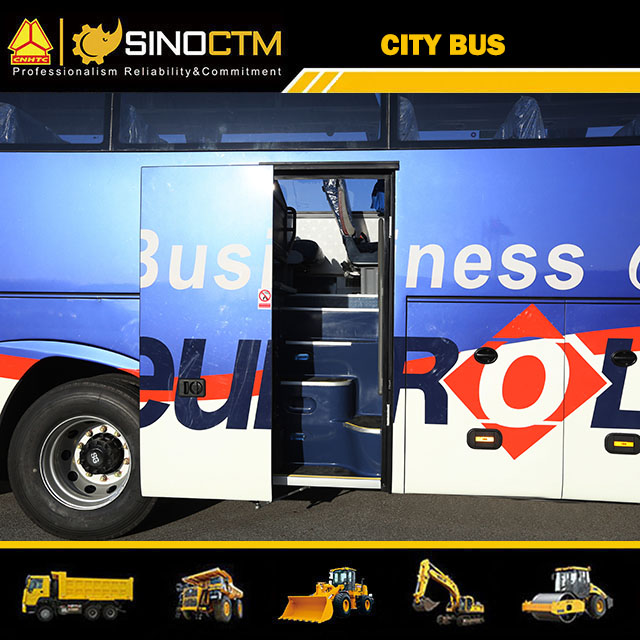

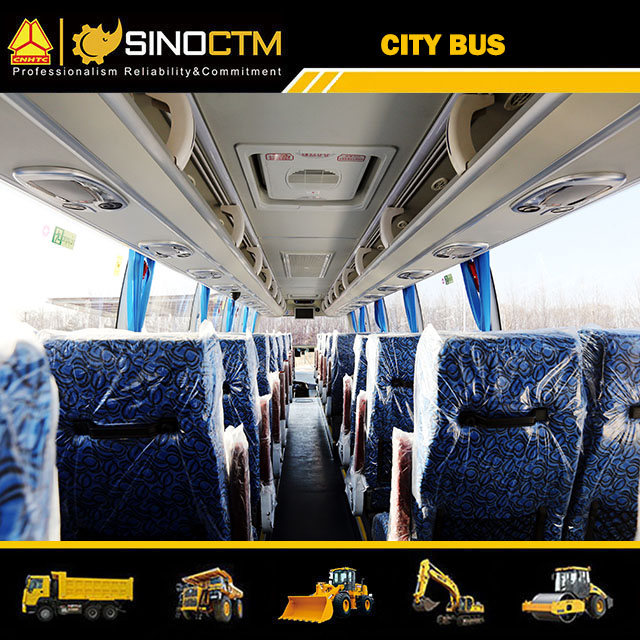

Beside the soft tone, the interior style is concise and generous; the onboard audio-visual system enriches the journey; the passenger door is equipped with LED lamp so that passengers may safely get on/off the vehicle at night; space between seats is maximized so that passengers can be fully extended.
Calm Driving, Mobility Enjoyment

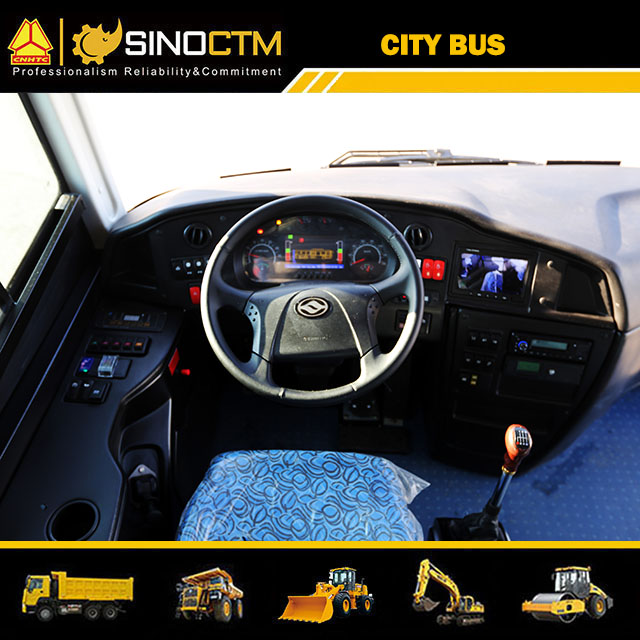

More spacious driver zone can provide a comfortable maneuverability environment; the foot pedal specially intended for the driver can effectively alleviate tiredness during long-haul driving; the dashboard is integrated with more advanced factors, and steady structure of the complete vehicle makes the driver calmly cope with changeable road conditions.
