| DD6129C71-COACH (Diesel) SPECIFICATION |
| OVERALL PARAMETERS |
| Overall Length (mm) | 11650 |
| Overall Width (mm) | 2550 |
| Overall Height (mm) | 3480(AC) |
| GVW (kg) | 16400 |
| Axle Load (kg) | 5500/10900 |
| Wheelbase (mm) | 5920 |
| Curb Weight (kg) | 11770(AC) |
| Max Speed (km/h) | 100 |
| Rated Passenger Capacity (persons) | 49+1 |
| Front/Rear Overhang (mm) | 2380/3350 |
| Approach/Departure Angle (°) | 8/8 |
| Front/Rear Tread (mm) | 2085/1860 |
| Fuel/NG Type | Diesel |
| CHASSIS PART |
| Engine | YC6L280,206KW/2200rpm,280hp |
| Clutch | φ430 coil spring clutch |
| Clucth Master & Slave Cylinder | CHINA BRAND |
| Transmission | 6DS100T, 6-gear, manual (FAST BRAND) |
| Speed Shift Control | Two flexible shaft control |
| Front Axle | 5.5T (SG BRAND) |
| Rear Axle | 11T(SG BRAND) |
| Brake | Front disc, rear drum |
| ABS | Equipped |
| Suspension System | Leaf spring |
| Tyre | 11R22.5, with spare tire |
| Rim | 22.5X8.25 |
| Centralzied Lubrication | N/A |
| Steering Gear | Integral power steering (CHINA BRAND) |
| Auxiliary Braking | Eddy current retarder +main reducer+generator |
| Dryer | CHINA BRAND |
| Braking System Valves | CHINA BRAND |
| Expansion Tank | Stainless steel |
| Cooling System | standard |
| Fuel Tank Capacity | 200L |
| BODY PART |
| Body Structure | Monocoque |
| Air Conditioning | 26000Kcal |
| Front & Middle Passenger Doors | Front passenger door: single pneumatic alluminum alloy outward swing door Middle passenger door: single pneumatic alluminum alloy outward swing door |
| Windshield | Front windhield: laminated glassRear windshield: tempered glass, F green |
| Driver Window | Sliding type, F green |
| Side Window | Sliding type, F green |
| Front Curtain | Single manual type |
| Driver Side Sunshade | Equipped |
| Side Curtain (including rear curtain) | Equipped |
| Seat Layout | 2+2,49+1 |
| Driver Seat | SJ-YZP-3A |
| Passenger Seat | LY-PBT-01 |
| Guide Seat | N/A |
| Step Number | Front 4 rear 4 |
| Floor | Wooden floor |
| Floor Covering | Wear resistant floor covering /CHINA BRAND |
| Instrument Panel | Softened type |
| Interior Mirror | Standard |
| Rear View Mirror | Manual electric defrosting |
| Heating | No heating with defroster |
| Ventilation | 2 hatches without ventilation fan |
| Roof Lamp | 3 units roof lamps |
| Driver Fan | Equipped |
| Driver Cup Holder | Equipped |
| CAN Bus | Equipped |
| Electronic Clock | Equipped |
| Audio-Visual System | MP3 player |
| Wiper | Horizontal wiper |
| Battery | 2 units 6QA-195 batteries |
| GPS | Equipped |
| Fire Extinguisher | 2 units 4kg fire extinguishers;2 units automatic fire extinguishers in engine compartment |
| Safety Belt | Safety belt for whole vehicle |
| Safety Hammer | 5 pcs with alarm function |
| Engine Compartment & Retarder High Temperature Alarm | Equipped |
| Rear Compartment False Start | Equipped |
| Painting | Solid color paint(CHINA BRAND) |
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
| The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |

Exceptional Quality Secures Driving Enjoyment
Safe, energy-saving and environmental design philosophy and proven workmanship bring exceptional and steady quality, which can fully meet with customers' diverse demands, naely passenger transportation, tourism and group activity; the ergonomic design makes the driver happy and worry free;
Intensive Caring, More Comfort

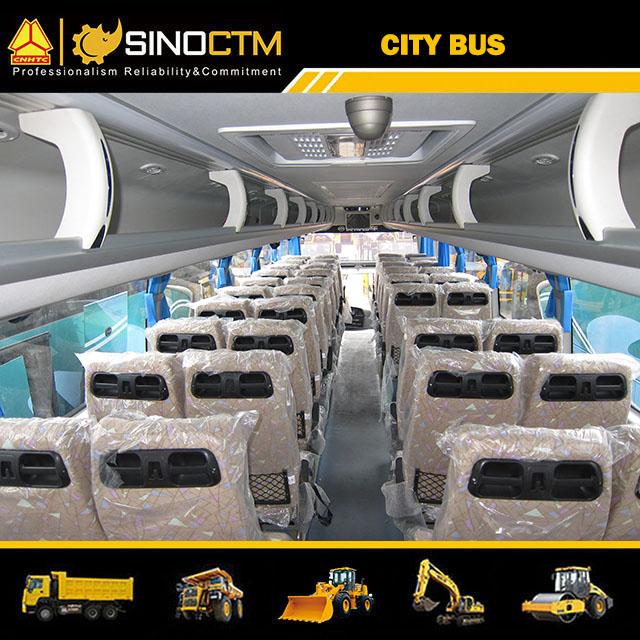

Beside the soft tone, the interior style is concise and generous; the onboard audio-visual system enriches the journey; the passenger door is equipped with LED lamp so that passengers may safely get on/off the vehicle at night; space between seats is maximized so that passengers can be fully extended.
Calm Driving, Mobility Enjoyment

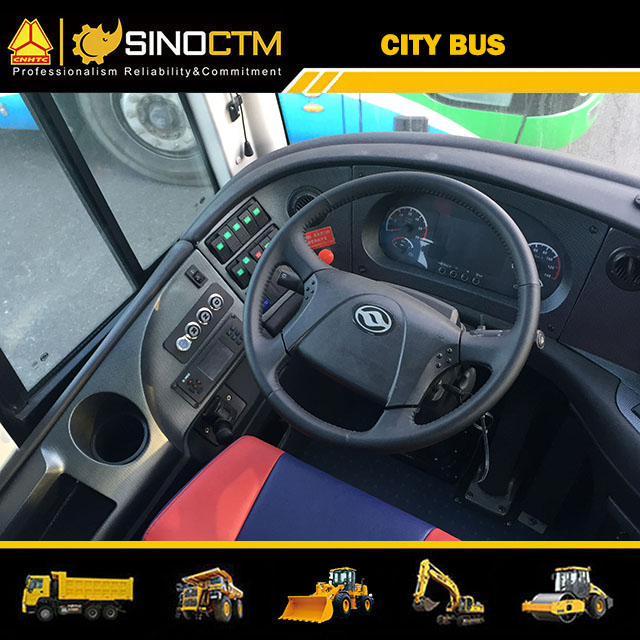

More spacious driver zone can provide a comfortable maneuverability environment; the foot pedal specially intended for the driver can effectively alleviate tiredness during long-haul driving; the dashboard is integrated with more advanced factors, and steady structure of the complete vehicle makes the driver calmly cope with changeable road conditions.
