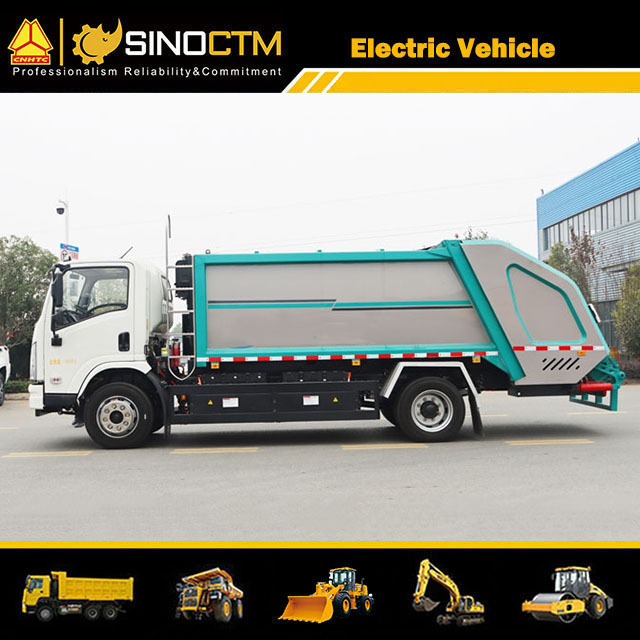

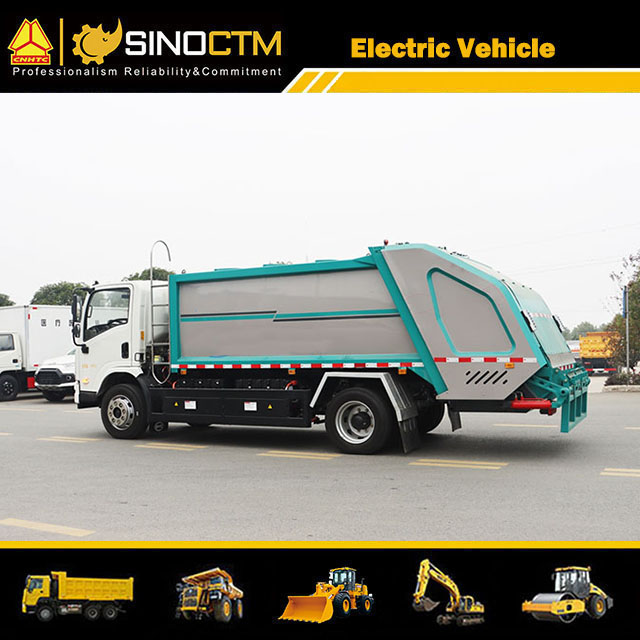

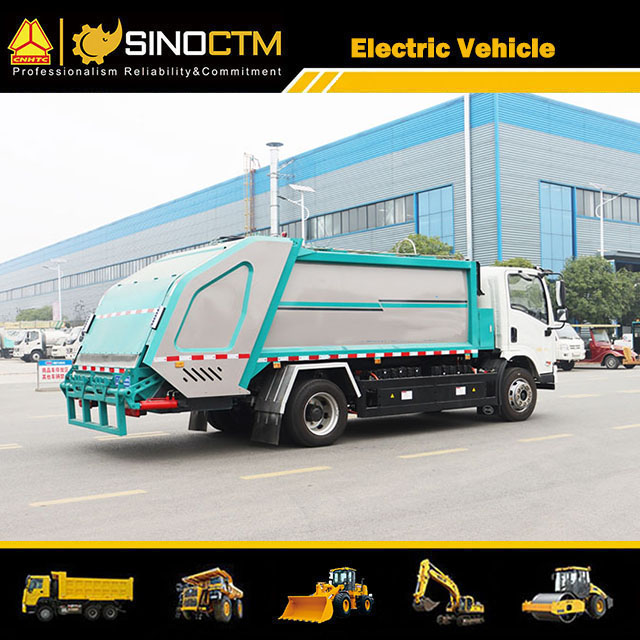

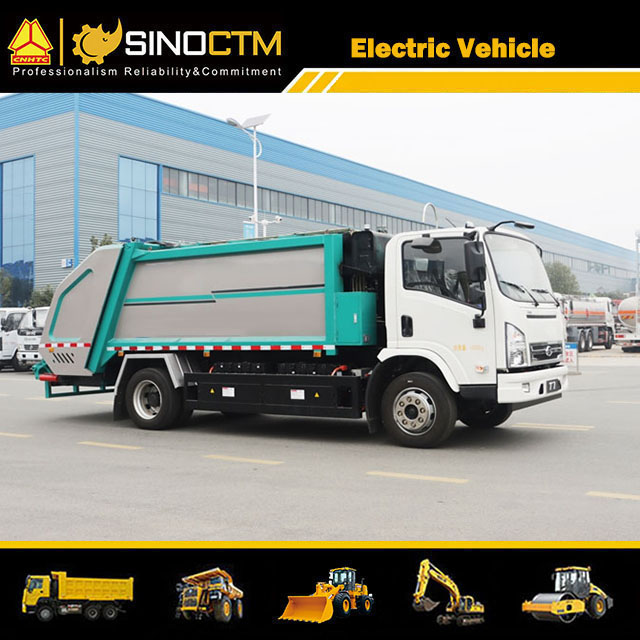

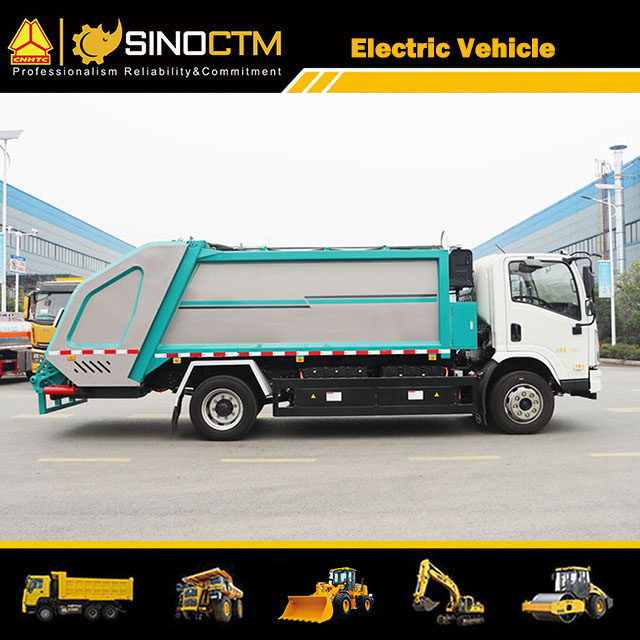

China New Energy Vehicle 10m3 15m3 20m3 6X4 4X2 Electric Compactor Garbage Truck

›

‹

›

China New Energy Vehicle 10m3 15m3 20m3 6X4 4X2 Electric Compactor Garbage Truck
BYD Electric Compression Garbage Truck 8 CBM
Model:BYD112014EBEVD
Motor Type:Permanent magnet synchronous motor
Rated voltage of battery pack: 515V
Battery power: 177KWH
Max Power:160kw/rpm
Battery:Lithium Iron Phosphate Battery
Installed motor rated power: 30KW
Battery consumption per hour: 25KWH
Recommended charging pile power: 120KW
Charging Time(Quick/Slow):1.5 h
Driving range:230km
Max Speed:95km/h
Tire:245/70R19.5 with one spare tire.
L*W*H:7860×2350×2960mm
Curb weight:8480kg
Inquiry Now →

Product Description

China New Energy Vehicle 10m3 15m3 20m3 6X4 4X2 Electric Compactor Garbage Truck

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

China New Energy Vehicle 10m3 15m3 20m3 6X4 4X2 Electric Compactor Garbage Truck


ELECTRIC COMPRESSION GARBAGE TRUCK SPECIFICATION
Truck ModelBYD112014EBEVD(Left Hand Drive )
Truck BrandBYD T7
Dimension (LxWxH) (unloaded)mm7860×2350×2960
Approaching angle/ Departure angel (°)19/9
Overhang (front/rear) (mm)1205/2325
Wheel base (mm)3850
Max. Driving speed (km/h)95
Front axle loading capacity (kg)3650
Rear axle loading capacity(kg)8150
Curb weight (kg)8480
Gross vehicle weight (kg)11800
Tire245/70R19.5 with one spare tire.
Effective volume of dustbin8 m³
Tank capacity220L
Capacity of filling bucket0.55m³
Width of filling hopper inlet1430mm
Pressure filling operation cycle time≤16s
Feeding operation cycle time (s)≤10s
Unloading operation cycle time (s)≤18s
Garbage compression density0.77t/m³
Maximum crushing compression force100KN
Maximum shirking150KN
Working pressure of hydraulic system19.5Mpa
The rear of the vehicle is equipped with a double 240L garbage bin lifting device, through the carriage, filler and shovel and other special devices, garbage pouring, crushing or flattening, strong loading, garbage squeezed into the carriage and compaction and shifting, reduce the operator's labor intensity, the whole process can be easily completed by only one person to operate the switch.
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

This truck is a new type of sanitation vehicle specially used for collecting and transporting garbage. It mainly collects and transports urban domestic garbage and is an ideal garbage collection and transportation vehicle for urban sanitation departments, factories, mines, and docks.

The pure electric compressed garbage truck in the absorption of a variety of domestic and foreign similar products on the basis of the advantages of independent research and development, design of a new generation of products.This series model adopts pure electric vehicle chassis, which is beautiful in appearance, powerful, reliable, safe, environmental protection and economic, and has the leading level in China.



The rear of the vehicle is equipped with a double 240L garbage bin lifting device, through the carriage, filler and shovel and other special devices, garbage pouring, crushing or flattening, strong loading, garbage squeezed into the carriage and compaction and shifting, reduce the operator's labor intensity, the whole process can be easily completed by only one person to operate the switch.



The vehicle is mainly suitable for the collection and transfer of barreled, bagged and bulk living garbage in urban residential areas, communities, large factories and mines, institutions and colleges and narrow streets in the old city.This series of compressed garbage truck has the characteristics of simple and beautiful appearance, long continuous working time, low noise and low carbon, humanized control mode, high efficiency and environmental protection, and its comprehensive performance has reached the advanced level of similar international products.

China New Energy Vehicle 10m3 15m3 20m3 6X4 4X2 Electric Compactor Garbage Truck
