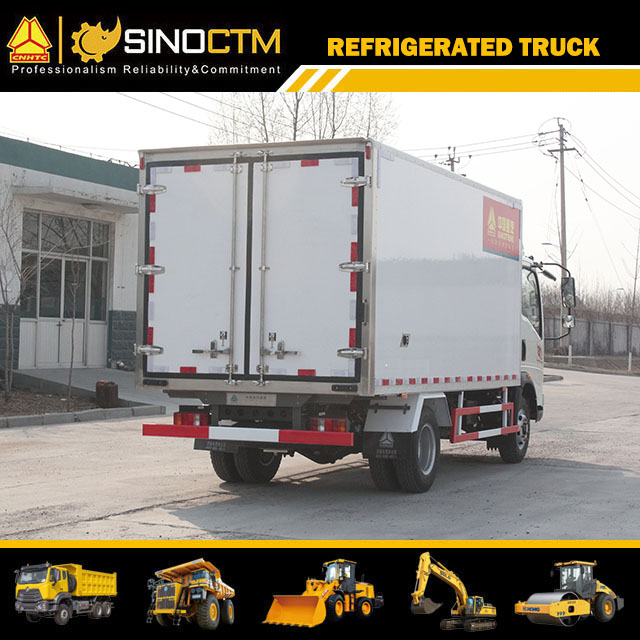

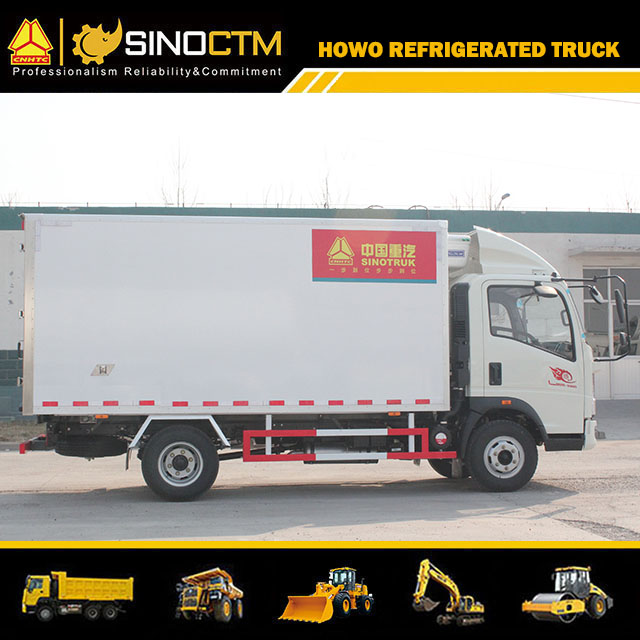

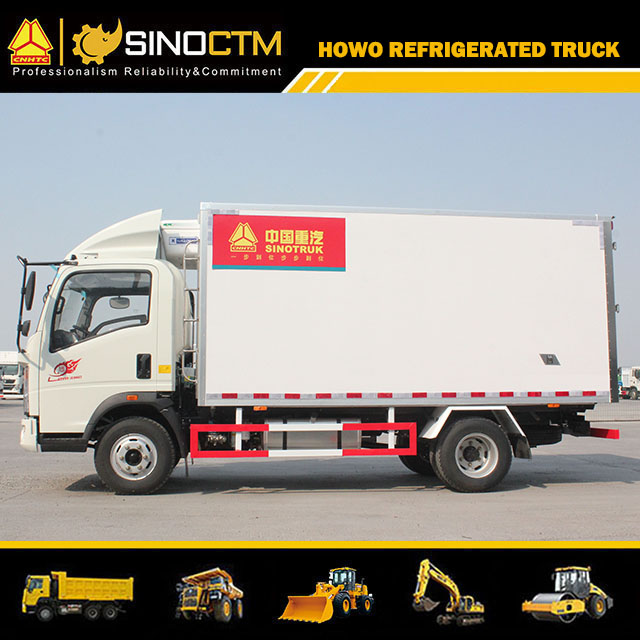

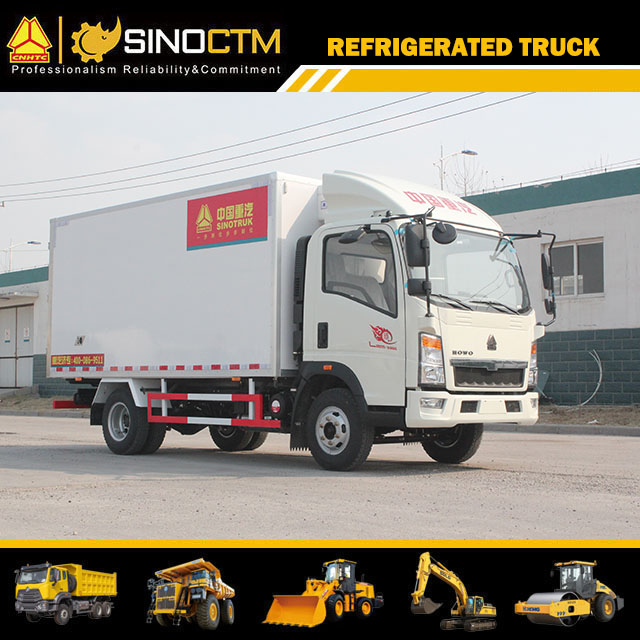

Sinotruck HOWO 4X2 5tons Refrigerated Cold Room Van Trucks Price with Aluminum Shutter Door

›

‹

›

Sinotruck HOWO 4X2 5tons Refrigerated Cold Room Van Trucks Price with Aluminum Shutter Door
SINOTRUK HOWO 4X2 Refrigerated Truck
Model: ZZ1107G4515C1
Cab:2080 extended cab,with A/C
Engine:YUCHAI brand,YC4E160-33, 160hp
Transmission: DC6J65TC,6F&1R
Steering: Left hand driving
Axles: 3.2T/8T
Tire: 8.25R20 Radial tire 6 pieces with 1 Spare tire.
Carriage Internal Dimension:5750 x2300x2300 mm
Steel thickness of Carriage:Thickness:
Bottom: 105mm
Side and rear door: 85mm
Protector Material: Q235
Thermo King refrigerator RV580
Inquiry Now →

Product Description

Sinotruck HOWO 4X2 5tons Refrigerated Cold Room Van Trucks Price with Aluminum Shutter Door

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

Sinotruck HOWO 4X2 5tons Refrigerated Cold Room Van Trucks Price with Aluminum Shutter Door


 SINOTRUK HOWO 4X2 LIGHT REFRIGERATED TRUCK SPECIFICATION
Truck ModelZZ1107G4515C1(Left Hand Drive )
Truck BrandSINOTRUK-HOWO
Dimension (LxWxH) (unloaded)mm7995×2400×3300
Cargo body5750 x2300x2300 mm,Thermo King refrigerator RV580
Cargo body thickness (mm)Thickness: Bottom: 105mmSide and rear door: 85mmProtector Material: Q235
Approaching angle/ Departure angel (°)27/20
Overhang (front/rear) (mm)1240/2255
Wheel base (mm)4500
Max. Driving speed (km/h)95
Front axle loading capacity (kg)3200
Rear axle loading capacity(kg)8000
Curb weight (kg)4745
Gross vehicle weight9890
Cab2080 extended cab,with A/C
Engine Model  ModelYUCHAI brand,YC4E160-33, 160hp,Flame preheating.
Rated Power(kw/rpm)118/2600
ClutchDiaphragm spring clutch,single plate
TransmissionModelDC6J65TC,6F&1R
Brake system  Service brakeDual circuit air brake
Parking BrakeSpring energy, compressed air operating on rear wheels
Auxiliary brakeexhaust valve
Steering systemModelPower steering,Adjustable steering wheel.(left hand driving)
Front axle(3.2T) Forging I-beam,Drum brake.
Rear axle(8T), pressed welding axle housing Drum brake.
Tire8.25R20 Radial tire 6 pieces with 1 Spare tire.
Electrical system  TypeSINOTRUK CAN bus system with VCO instrument
Voltage24V,
Batteries2*12V, 120 Ah
Alternator28V/55A
Starter6Kw
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
Oil Tank120L fuel tank
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


Sinotruck HOWO 4X2 5tons Refrigerated Cold Room Van Trucks Price with Aluminum Shutter Door

0 °C ~ + 22°C: For fruits, vegetable, packing room, medicine, communication Station
-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
-10 °C ~ -20 °C: Freezing usage, for example: fish, meat, etc.
-25 °C ~ -30 °C: Quick freezer
-35 °C ~ -40 °C: Blast Freezer, Quick-Freeze

Refrigerated truck is closed van used to transport the frozen or fresh goods,and is also kind of special

transportation vehicle equipped with refrigeration unit device and polyurethane thermal insulation box.

Transportation category:

is often used to transport frozen food, dairy products,  fruits and vegetables, vaccine and drug.

Construction:

chassis,heat insulation box body,refrigeration unit,temperature  recorders in the carriage,for special

purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel and others.

Refrigeration nuit classification:

non independent refrigeration unit,independent unit,the domestic units and imported units.Usually using

external refrigerator,for a few mini refrigerated truck,using internal refrigerator.

Choice for insulated body:

good thermal insulation property,light weight,not easy to be damaged

Sinotruck HOWO 4X2 5tons Refrigerated Cold Room Van Trucks Price with Aluminum Shutter Door
