Sinotruk HOWO 6X4 America Thermo King or Carrier Freezer Cooling Refrigerated Refrigerator Truck

›

‹

›

Sinotruk HOWO 6X4 America Thermo King or Carrier Freezer Cooling Refrigerated Refrigerator Truck

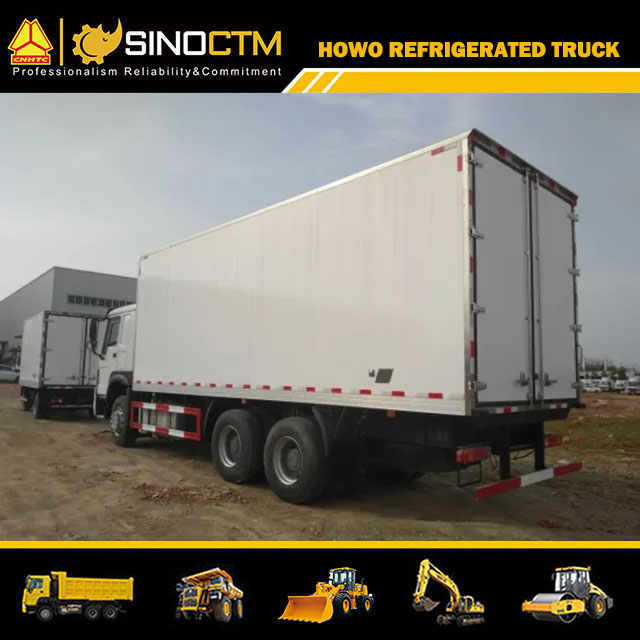

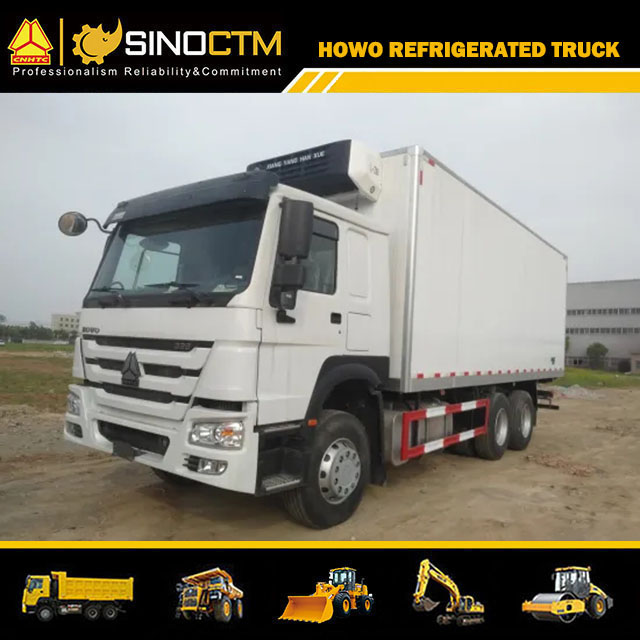

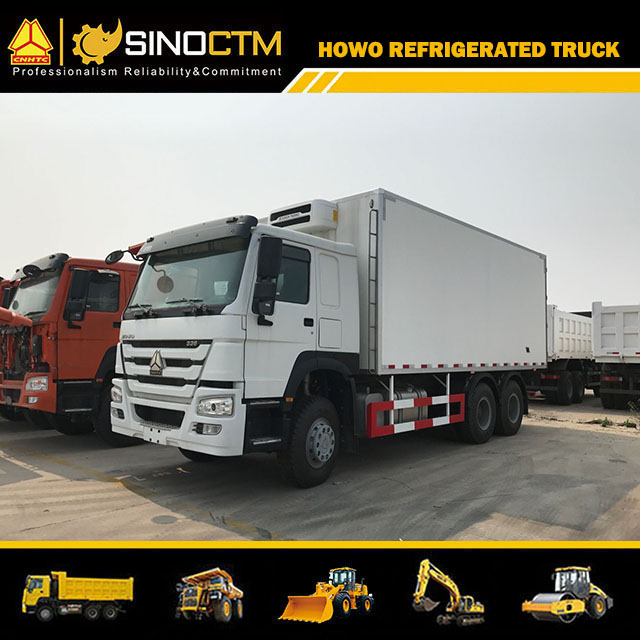

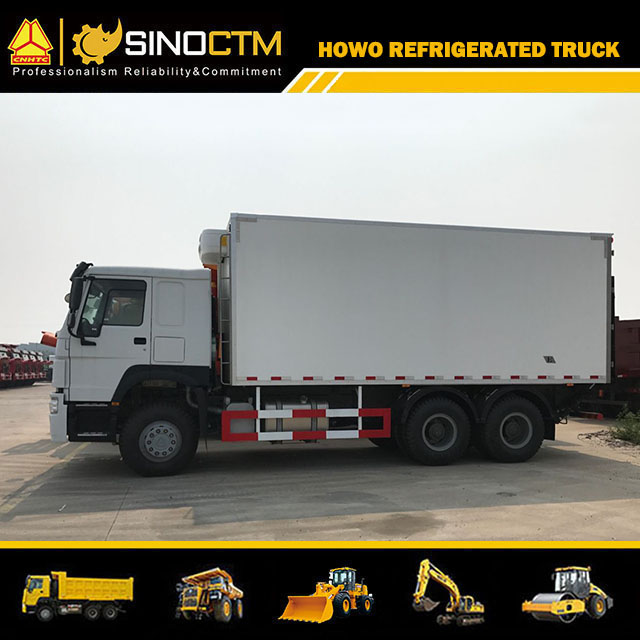

SINOTRUK HOWO 6X4 Refrigerated Truck
Model: ZZ1257N4347B1
Engine:WP10.340E22; 340hp; Euro II
Transmission: HW19710,10 forward and 2 reverse
Steering: BOSCH(Left hand driving)
Axles: Front:9500kg & Rear:2*16000
Tire: 12.00R20 radial tyre,with 1 Spare tire.
Cargo body size: 7100X2400X2300mm
With Thermo King refrigerator T-780,
Independent refrigerator, minimum temperature -18ºC.
Inquiry Now →

Product Description

Sinotruk HOWO 6X4 America Thermo King or Carrier Freezer Cooling Refrigerated Refrigerator Truck

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

Sinotruk HOWO 6X4 America Thermo King or Carrier Freezer Cooling Refrigerated Refrigerator Truck


SINOTRUK HOWO 6x4 REFRIGERATED TRUCK SPECIFICATIONS
Truck ModelZZ1257N4347B1(Left Hand Drive )
Truck BrandSINOTRUK-HOWO
Dimension (LxWxH) (unloaded)mm9900×2550×4100
Cargo body size(mm)7100X2400X2300
Refrigerator unit Thickness: Bottom: 105mmSide and rear door: 85mmProtector Material: Q235
Brand: Thermo King(American) Type: Independent
Temperature: -18 degree-0 degree
One pair door on the back side
More seals on the cryogenic insulation chamber effectively increase air-tightness
The seamless body is smooth, easy to clean, and both impact and corrosion resistant.
Approaching angle/ Departure angel (°)16/15
Overhang (front/rear) (mm)1500/2600
Wheel base (mm)4300+1400
Max. Driving speed (km/h)95
Front axle loading capacity (kg)9000
Rear axle loading capacity(kg)2*16000
Curb weight (kg)12690
Gross vehicle weight30000
Cab ModelSINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving.
Engine ModelModelWP10.340E22,EURO II,340hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Rated Power(kw/rpm)249/2200
Make WEICHAI, Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
ClutchSINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
TransmissionModelSINOTRUK HW19710 transmission ,10 forward and 2 reverse
Brake system Service brakeDual circuit compressed air brake
Parking Brake(emergency brake)Spring energy, compressed
Steering systemModelBOSCH Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
Front axleSINOTRUK VDG95 9500kg Front Axle,new 9.5-ton front axles of equipped with drum brakes.
Rear axleSINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Wheels &TireRims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.
Electrical systemElectrics Operating voltage24V,negative grounded
Starter24V,7.5 Kw
Alternator3-phase,28V,1500 W
Batteries2x12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light。
Oil TankSquare type-400L Aluminum alloy fuel tank
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


Sinotruk HOWO 6X4 America Thermo King or Carrier Freezer Cooling Refrigerated Refrigerator Truck

0 °C ~ + 22°C: For fruits, vegetable, packing room, medicine, communication Station
-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
-10 °C ~ -20 °C: Freezing usage, for example: fish, meat, etc.
-25 °C ~ -30 °C: Quick freezer
-35 °C ~ -40 °C: Blast Freezer, Quick-Freeze

Refrigerated truck is closed van used to transport the frozen or fresh goods,and is also kind of special

transportation vehicle equipped with refrigeration unit device and polyurethane thermal insulation box.

Transportation category:

is often used to transport frozen food, dairy products,  fruits and vegetables, vaccine and drug.

Construction:

chassis,heat insulation box body,refrigeration unit,temperature  recorders in the carriage,for special

purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel and others.

Refrigeration nuit classification:

non independent refrigeration unit,independent unit,the domestic units and imported units.Usually using

external refrigerator,for a few mini refrigerated truck,using internal refrigerator.

Choice for insulated body:

good thermal insulation property,light weight,not easy to be damaged
