800-1000T/H Limestone/Dolomite Aggregates Production Line

Time : 2023-11-27

800-1000T/H Limestone/Dolomite Aggregates Production Line

Features: The whole production line with simple process, small floor space. The equipments have large crushing ratio, high production efficiency, and low operating costs. The finished particles have good shape with even distribution, which can meet various requirements of aggregates used in the field of construction industry.

Crushing Process

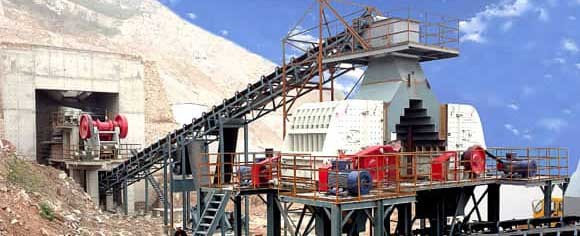

This system is applied for the limestone (dolomite) aggregates production with the production capacity of 800-1000t/h. the process flow is vibrating feeder – jaw crusher – impact crusher – vibrating screen – sand washer.

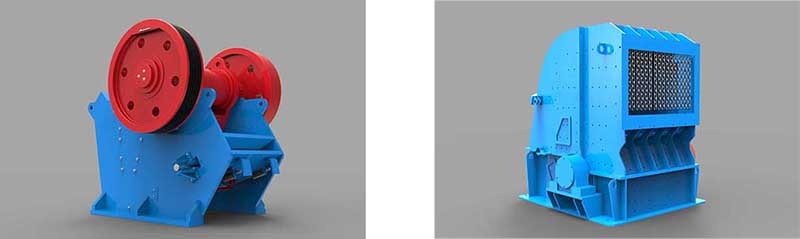

Jaw crusher Impact Crusher

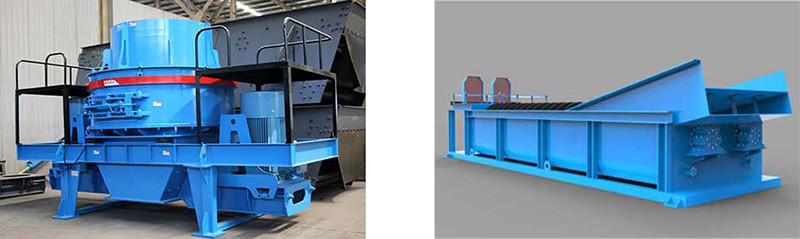

Sand Making Machine Sand Washer

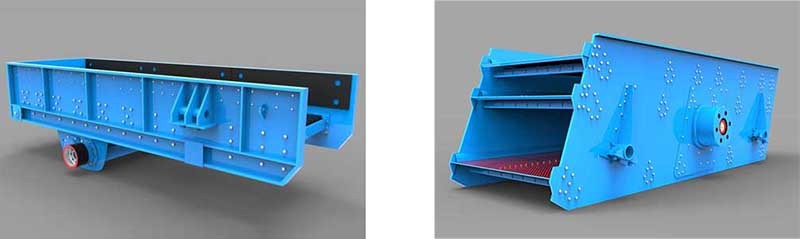

Grizzly Feeder Vibrating Screen

800t/h - Limestone/Dolomite Production Configuration Table

No.	Equipment	Model	Unit	Quantity	Power(kw)	Total Power(kw)	Output(t/h)	Weight(kg)	Remark
G1	Grizzly Feeder	ZSW600x180	pc	1	45	45	400-1000	13500
P1	Jaw Crusher	C1615	pc	1	220	220	470-1150
P2	Impact Crusher	PFQ1520	pc	2	2X250	1000	-500	42000
P3	Impact Crusher	PFQ1320	pc	1	2X160	320	-350	32700
S1	Vibrating Screen	3YKR3073	pc	2	2X30	120	150-900	22500
XL1	Sand Washer	XL914	pc	2	15	30	-100	6370	wet method
C1	Iron Separator		pc	1
G2	Vibrating Feeder	ZG200	pc	2	2×0.75	3	-200
P4	Sand Making Machine	PLS-1200	pc	2	500-630	1000-1260	300-715	19690
S2	Vibrating Screen	2YK2475	pc	2	55	110	150-900	13924
XL2	Sand Washer	2XL914	pc	1	2X15	30	-200	11300	wet method
C2	Iron Separator		pc	1

1000t/h - Limestone/Dolomite Production Configuration Table

No.	Equipment	Model	Unit	Quantity	Power(kw)	Total Power(kw)	Output(t/h)	Weight(kg)	Remark
G1	Grizzly Feeder	ZSW600x210	pc	1	45	45	550-1250	14791
P1	Jaw Crusher	C1815	pc	1	355	355	630-1300	106000
P2	Impact Crusher	PFQ1520	pc	3	2X250	1500	-500	42000
S1	Vibrating Screen	3YKR2460	pc	4	45	180	120-880	11046
XL1	Sand Washer	XL1118	pc	2	22	44	-175	12703	wet method
C1	Iron Separator		pc	1
G2	Vibrating Feeder	ZG200	pc	2	2×0.75	3	-200
P3	Sand Making Machine	PLS-1200	pc	2	500-630	1000-1260	300-715	19690
S2	Vibrating Screen	2YK3073	pc	2	55	110	150-900	15476
XL2	Sand Washer	2XL1118	pc	1	2X22	44	-350		wet method
C2	Iron Separator		pc	1

Notes: the equipment in the sheet is used for reference, the final equipment configuration should be selected due to material particle size, product particle size and grade, system capacity, working conditions and topographical features.
