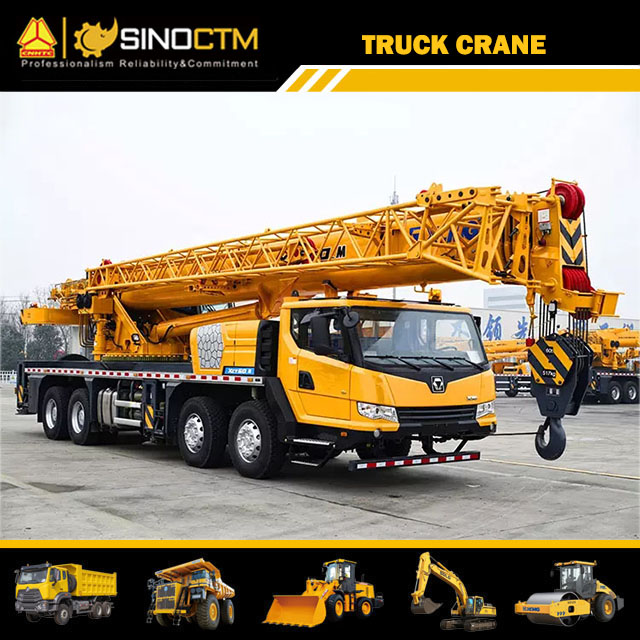

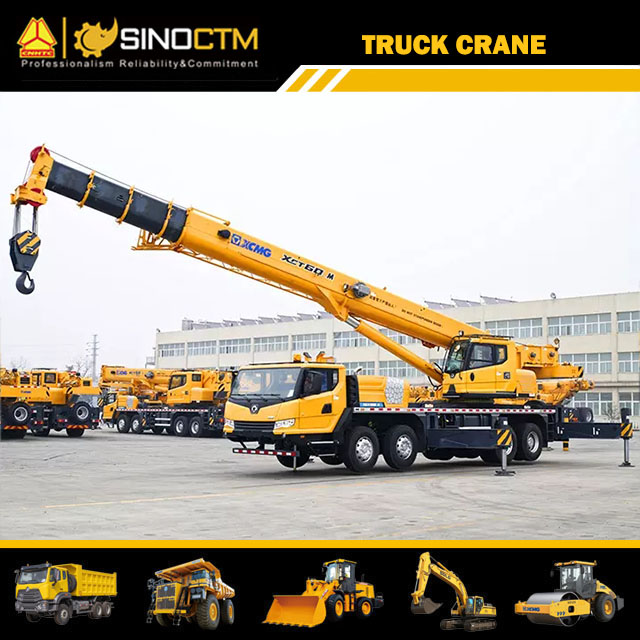

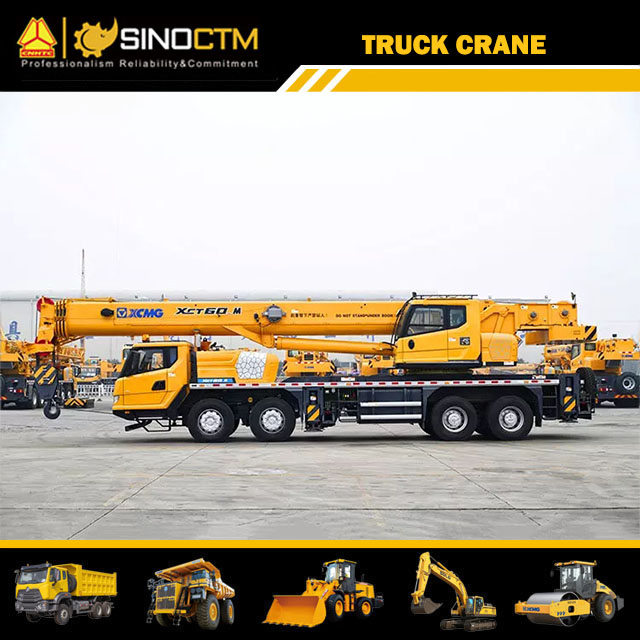

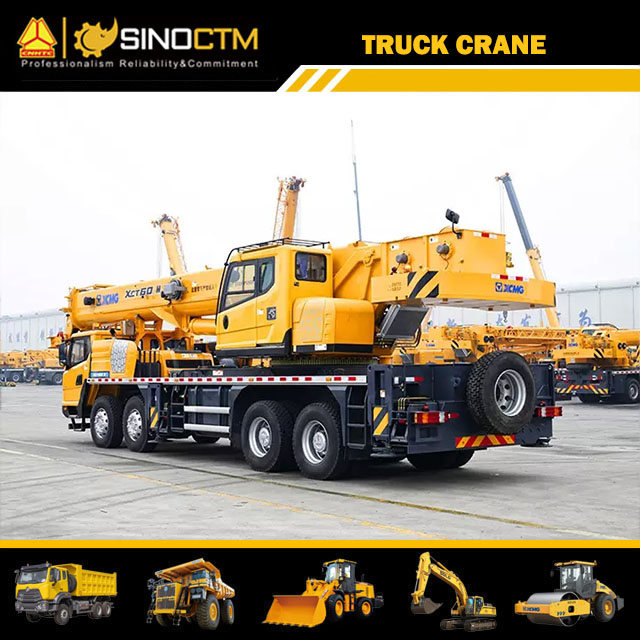

XCMG XCT60MTruck Crane 60T
XCMG XCT60MTruck Crane
Max. total rated lifting capacity:60000kg
Engine:WEICHAI WD615.334
Rated Power:247/2200kw/r/min
Max. lifting torque:2009KN.m
Max. permissible weigh:44000kg
Overall dimensions:14090×2790×3630mm
Inquiry Now →

Product Description

徐工起重机械组合 2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg

ItemUnitParameters
Dimension
Dimension(L*W*H)mm14090×2790×3630
Wheel Basemm1470+4300+1350
Track(Front/Rear)mm2304/2079
Front/Rear Overhangmm2376/2398
Front/ Rear Extensionmm2196/0
Weight
Max. permissible weightkg42200
 Axle Load1st and 2nd Axlekg16200
3rd and 4th Axlekg26000
///
Power
Engine Model/WD615.334
Engine rated powerkW/(r/min)247/2200
Max. net power/rpmkW/(r/min)245/1900
Engine rated torqueN.m/(r/min)1350/1100-1600
Travel
Max. travel speedkm/h90
Min. travel speedkm/h2~3
Min. turning diameterm≤24
Min. ground clearancemm250
Approach angle°18
Departure angle°13
Braking distance (at 30 km/h )m≤10
Max. grade ability%≥36
Fuel consumption for 100kmL36
Exterior noise leveldB(A)≤88
Noise level at seated positiondB(A)≤90
Main Performance
Max. total rated lifting capacityT60
Min. rated working radiusm3
Turning radius at turntable tailCounterweightmm3900
Auxiliary winchmm/
 Max. load momentBase boomKN.m2009
Fully-extended boomKN.m1113
Fully-extended boom + JibKN.m703
Outrigger spanLongitudinalm6.1
Lateralm7.1
 Hoist HeightBase boomm11.3
Fully-extended boomm43.6
Fully-extended boom + Jibm59.8
 Boom lengthBase boomm11.5
Fully-extended boomm44
Fully-extended boom + Jibm60
Jib offset angle°0、15、30
Working Speed
Boom raising times≤40
Boom fully extended times≤90
Max. slewing speedr/min≥2.0
Outrigger extending and retracting timeOutrigger beamRetracting  s≤30
Extendings≤35
Outrigger jackRetracting  s≤35
Extendings≤40
Hoisting speed (single line, 4th layer, no load)Main winchm/min≥130
Auxiliary winchm/min≥130
Noise
Exterior noise leveldB(A)≤122
Noise level at seated positiondB(A)≤90

新组合 2.jpg

XCT60_M Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.



Performance Characteristics:

* 5-section boom of 44m with U-type profile is adopted; the max. lifting load is 60 t; the max. lifting height is 59.8 m; The performance takes the lead comprehensively.



* The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 60℃.

* Abundant configurations suitable for various working conditions, meet the requirements of applications such as all oil fields and government projects.

徐工起重机械组合 4.jpg
