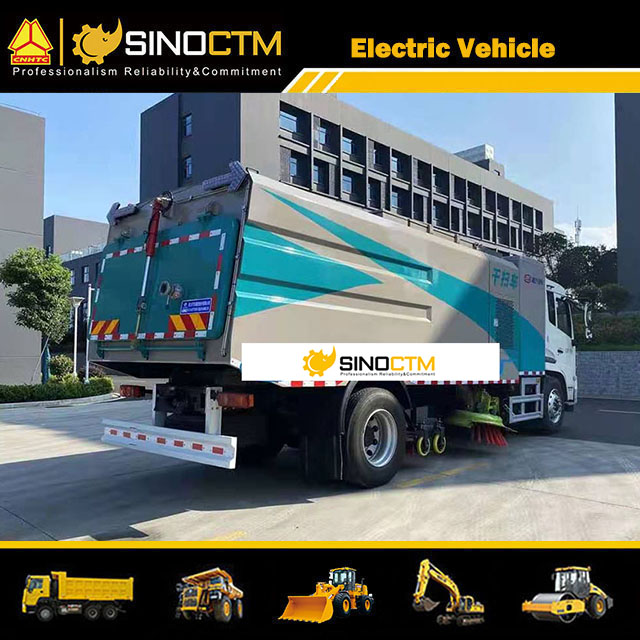

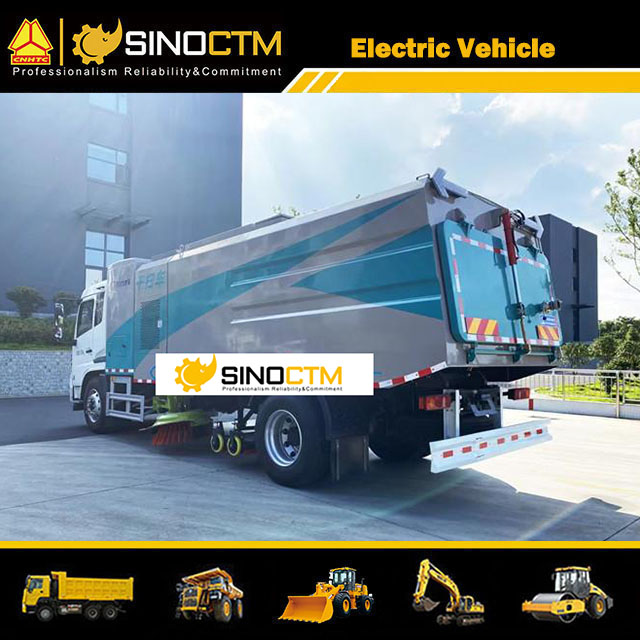

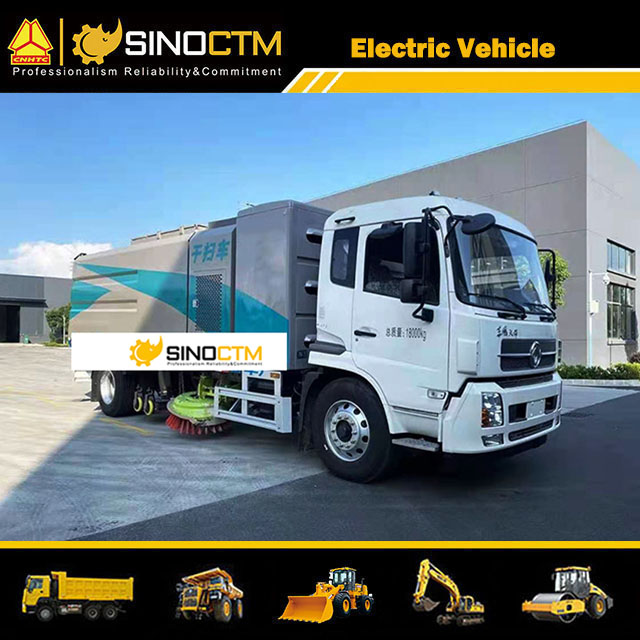

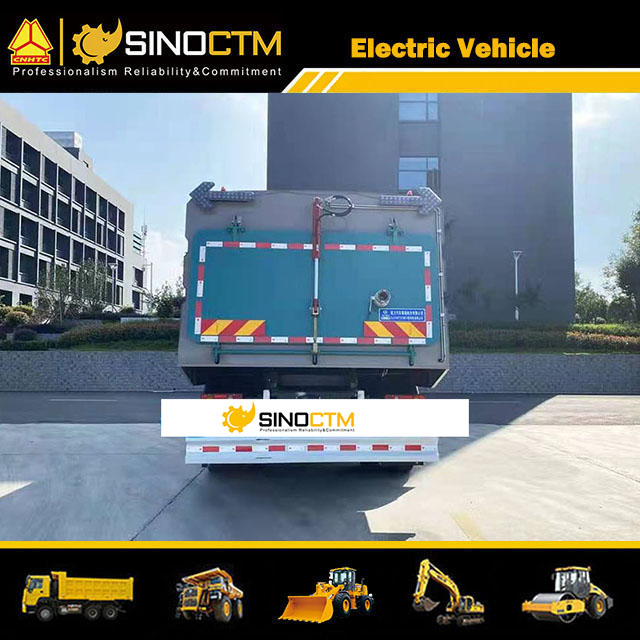

DONGFENG Electric Street Sweeping 8CBM
Model:EQ1180GEVJ1
Motor Type:Permanent magnet synchronous motor
Rated voltage of battery pack: 579.6V
Battery power: 314KWH
Max Power:160kw/rpm
Battery:Lithium Iron Phosphate Battery
Installed motor rated power: 80KW
Battery consumption per hour: 65KWH
Recommended charging pile power: 120KW
Charging Time(Quick/Slow):2.5h
Driving range:369km
Max Speed:90km/h
Tire:295/80R22.5 18PR with one spare tire.
L*W*H:8960×2550×3130mm
Curb weight:13700kg
Inquiry Now →

Product Description

新电动汽车组合 4-1.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新电动车组合 1.jpg


ELECTRIC VACUUM CLEANER STREET SWEEPING TRUCK
Truck ModelEQ1180GEVJ1(Left Hand Drive )
Truck BrandDONGFENG
Dimension (LxWxH) (unloaded)mm8960×2550×3130
Approaching angle/ Departure angel (°)16/9
Overhang (front/rear) (mm)1430/2230
Wheel base (mm)5300
Max. Driving speed (km/h)95
Front axle loading capacity (kg)7000
Rear axle loading capacity(kg)11000
Curb weight (kg)13700
Gross vehicle weight (kg)18000
Tire295/80R22.5 18PR with one spare tire.
Tank Volume (m³)8
Sweeping Width (m)3.5
2 swept disc in the middle, maintension-free centrifugal fan, Anhui liquid gear pump, Heapris hydraulic cylinder, Heapris solenoid valve group, stainless steel water tank, dustbin, Schneider control switch, tail LED arrow lamp; Water tank low water level alarm device, indoor monitoring system for reversing and working conditions, maximum cleaning width 3.5m.Tail with electronic control operating system, suction nozzle suspended between the rear wheel of the chassis car, composed of suction nozzle, roller, straw, suction nozzle body can be moved, suction nozzle lift oil cylinder control double suction mouth wide suction nozzle, suction nozzle body and road follow. Hydraulic drive electrical automatic control suction nozzle lifting, spring floating suspension. The electrical system consists of a special working device operation and control circuit for chassis and car circuits.
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Chassis battery provides the power, permanent magnet synchronous motor drive, according to the need for real-time speed regulation, force extraction operation and chassis driving system has no correlation, excellent car experience.


Two swept disc in the middle, maintension-free centrifugal fan, Anhui liquid gear pump, Heapris hydraulic cylinder, Heapris solenoid valve group, stainless steel water tank, dustbin, Schneider control switch, tail LED arrow lamp; Water tank low water level alarm device, indoor monitoring system for reversing and working conditions, maximum cleaning width 3.5m.

Tail with electronic control operating system, suction nozzle suspended between the rear wheel of the chassis car, composed of suction nozzle, roller, straw, suction nozzle body can be moved, suction nozzle lift oil cylinder control double suction mouth wide suction nozzle, suction nozzle body and road follow. Hydraulic drive electrical automatic control suction nozzle lifting, spring floating suspension. The electrical system consists of a special working device operation and control circuit for chassis and car circuits.

新电动车组合 4.jpg

Other products:

1. Dump Truck / Tipper Truck

2. Hohan tractor Truck/ prime mover truck

3. Truck with crane / Truck mounted crane

4. Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement trailer

10. High-altitude operation truck

11. Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )

新电动车组合 5.jpg
