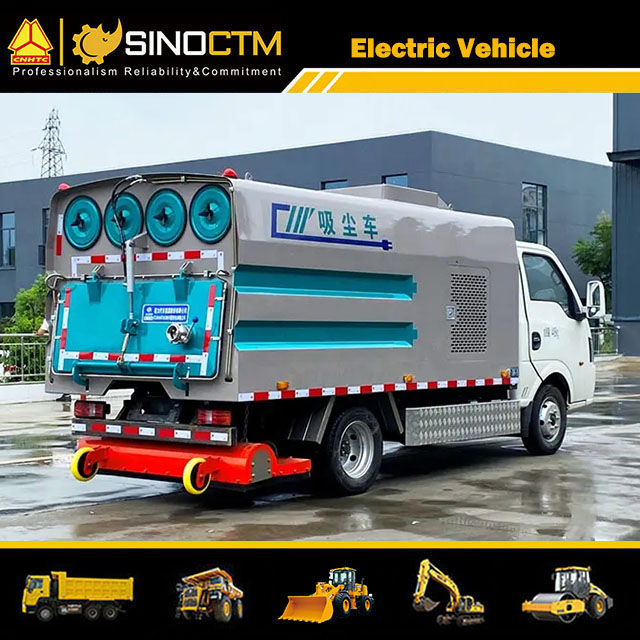

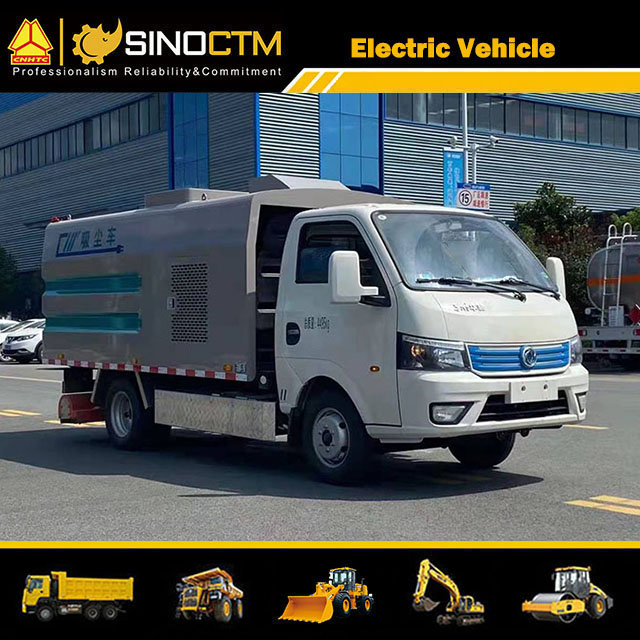

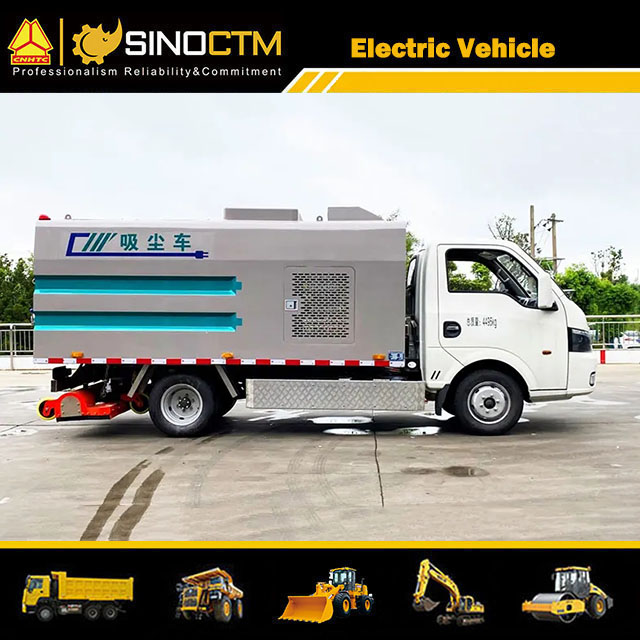

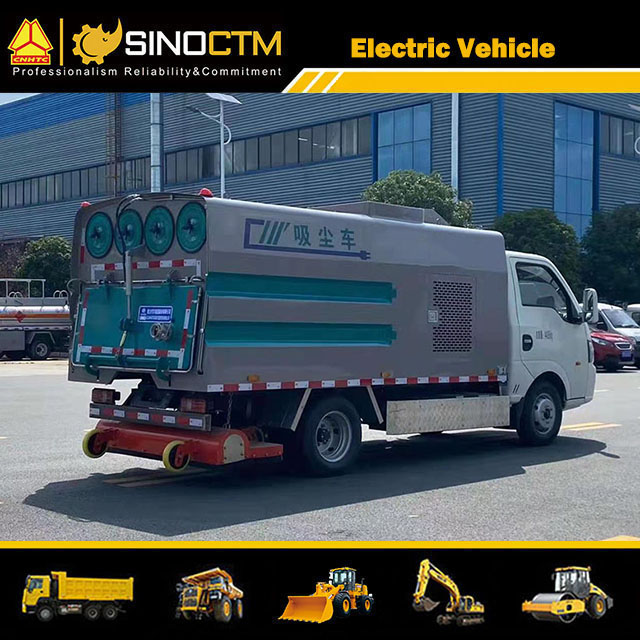

Electric Vacuum Sweeper Truck 3.5CBM
Model:EQ1040BTZEVJ
Motor Type:Permanent magnet synchronous motor
Rated voltage of battery pack: 322V
Battery power: 55KWH
Max Power:100kw/rpm
Battery:Lithium Iron Phosphate Battery
Installed motor rated power: 20KW
Battery consumption per hour: 15KWH
Recommended charging pile power: 120KW
Charging Time(Quick/Slow):0.5-2h
Driving range:200km
Max Speed:90km/h
Tire:185R15LT 8PR with one spare tire.
L*W*H:5780×1810×2320mm
Curb weight:3940kg
Inquiry Now →

Product Description

新电动汽车组合 4-1.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新电动车组合 1.jpg


ELECTRIC VACUUM SWEEPER TRUCK SPECIFICATION
Truck ModelEQ1040BTZEVJ(Left Hand Drive )
Truck BrandDONGFENG
Dimension (LxWxH) (unloaded)mm5780×1810×2320
Approaching angle/ Departure angel (°)21/24
Overhang (front/rear) (mm)1180/1600
Wheel base (mm)3200
Max. Driving speed (km/h)90
Front axle loading capacity (kg)1495
Rear axle loading capacity(kg)3000
Curb weight (kg)3940
Gross vehicle weight (kg)4495
Tire185R15LT 8PR with one spare tire.
Clean Water Tank Volume (m³)0.5
Garbage Tank Volume (m³)3.0
Sweeping Width (m)2.2
Central suction cup, maintenace free centrifugal fan, Anhui hydraulic gear pump, Heapris hydraulic cylinder, Heapris solenoid valve group, stainless steel water tank, dustbin, Schneider control switch, rear LED arrow lamp, water tank low water alarm device, reversing and working state indoor monitoring system, the maximum cleaning width of 2m-2.2m. Tail with electric control operating system, hydraulic drive electrical automatic control suction nozzle lifting, spring floating suspension.The electrical system consists of a special working device operation and control circuit for chassis and car circuits.
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Chassis battery provides the power, permanent magnet synchronous motor drive, according to the need for real-time speed regulation, force extraction operation and chassis driving system has no correlation, excellent car experience.


Central suction cup, maintenace free centrifugal fan, Anhui hydraulic gear pump, Heapris hydraulic cylinder, Heapris solenoid valve group, stainless steel water tank, dustbin, Schneider control switch, rear LED arrow lamp, water tank low water alarm device, reversing and working state indoor monitoring system, the maximum cleaning width of 2m-2.2m. Tail with electric control operating system, hydraulic drive electrical automatic control suction nozzle lifting, spring floating suspension.

The electrical system consists of a special working device operation and control circuit for chassis and car circuits.

新电动车组合 4.jpg
