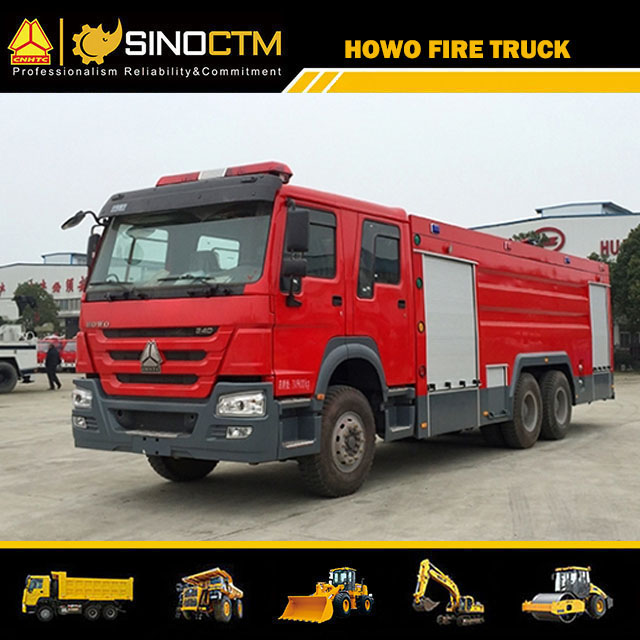

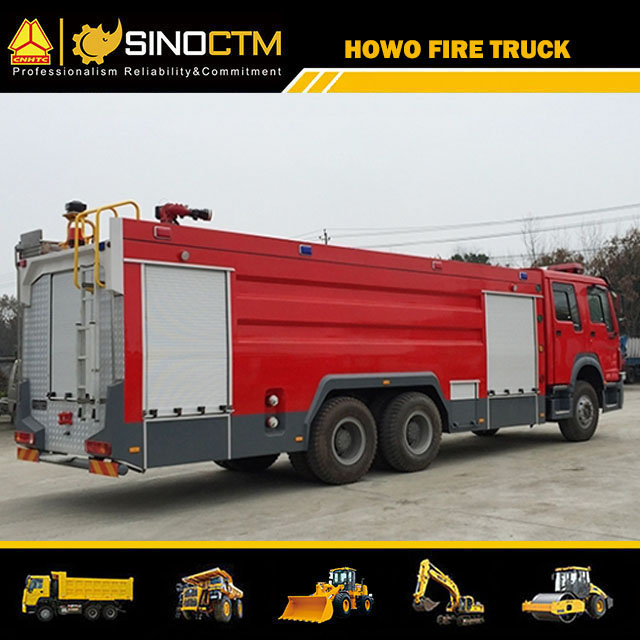

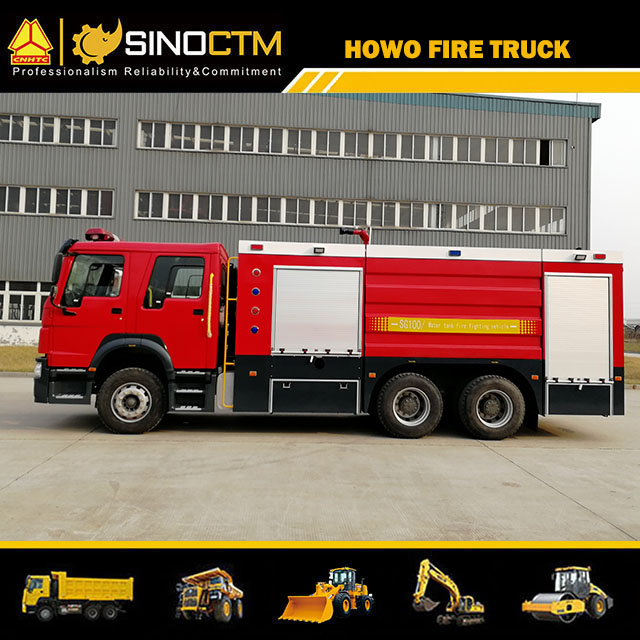

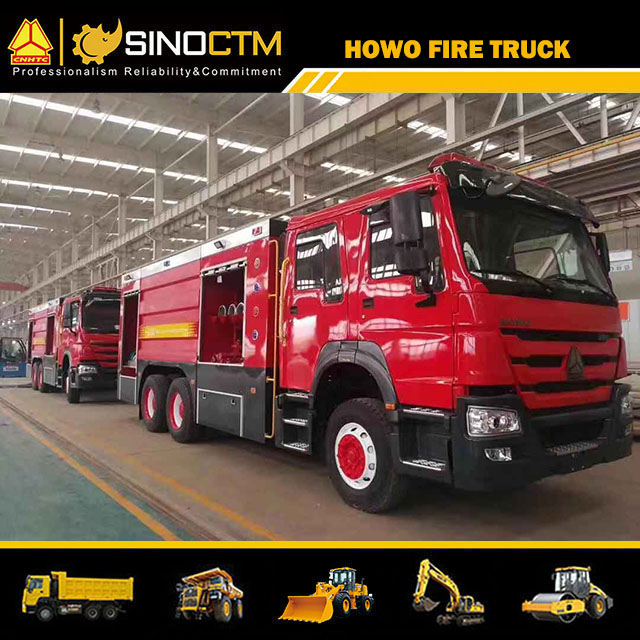

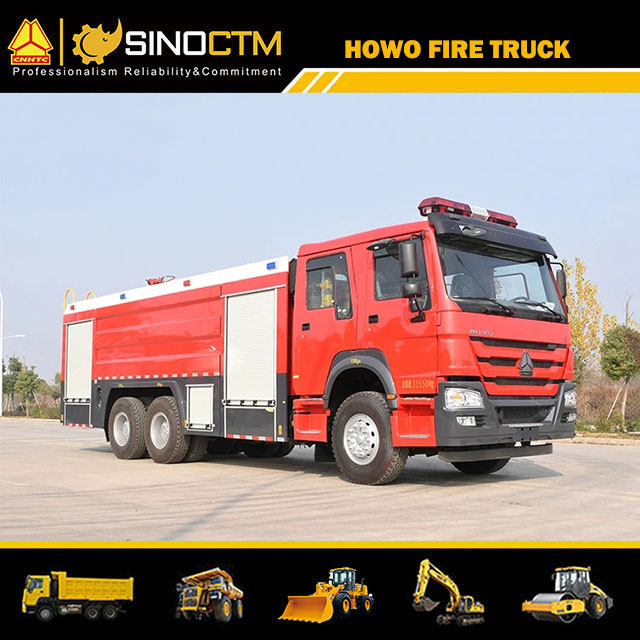

HOWO 6X4 Water fire Truck 10cbm
SINOTRUK HOWO 6X4 Water fire Truck
Model: ZZ1257N4347B1
Engine:WP10.340E22; 340hp; Euro II
Transmission: HW19710,,10 forward and 2 reverse.
Steering: BOSCH (Left hand driving)
Axles: Front:9000kg & Rear:2*16000
Tire: 12.00R20 radial tyre
Water tank :10000kg
Inquiry Now →

Product Description

新重汽 32.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新重汽 34.jpg


SINOTRUK HOWO 6x4 WATER FIRE TRUCK SPECIFICATIONS
Truck ModelZZ1257N4347B1(Left Hand Drive )
Truck BrandSINOTRUK-HOWO
Dimension (LxWxH) (unloaded)mm9300×2550×3750
Wheel base (mm)4300+1400
Max. Driving speed (km/h)90
Front axle loading capacity (kg)9000
Rear axle loading capacity(kg)2*16000
Gross vehicle weight25000
Vehicle parameters External dimensions9300×2550×3750mm
Maximum total mass25000kg
Liquid carrying capacity10000kg
Maximum speed90km/h
Rated flow of fire pump60L/s  1.0MPa
Engine ModelWEICHAI
Haoserpower340 hp
power249 KW
Engine displacement9726ml
Engine emission standard Euro 2
Chassis Driving form6X4
Wheelbase4300mm
Maximum permissible gross weight25000kg
Minimum turning radius≤18m
Transmission caseHand gearbox.
Cabin structureFlat head, four doors, original double row
Number of drivers and passengers2+4 persons
Driver's positionLeft  side
EquipmentThe instrument panel of the vehicle is equipped with fire control operation instrument panel and alarm light control box, and is equipped with1. Alarm;2. Power take-off control switch and indicator light;3. Additional power switch;
NoName
unitqty
1Suction pipeΦ150(2m)pcs4
2Water filterFLF150pcs1
3Fire hose type 1613-80-20mset4
4Fire hose type 1613-65-20mset4
5Water separatorFFS80pcs1
6manifoldFJ150-2B-1.3pcs1
7InterfaceKJ65/80pcs2
8Special reducerKY150/KT100pcs1
9Hose blanketFP470pcs4
10Hose BridgeFH80pcs1
11Hose hangerFG600pcs4
12Ground hydrant wrenchFB450pcs1
13Underground fire hydrant wrenchFBA800pcs1
14Suction pipe wrenchFS150pcs4
15Dry powder fire extinguisherMFZ2pcs1
16DC switch water gunQZG19pcs1
17DC spray water gunQWJ16pcs1
18Air foam gun PQ4(4L/S)pcs1
19Air foam gun PQ8(8L/S)pcs1
20Fire axeGFP890pcs1
21Spade2#pcs1
22Iron collarGT06pcs1
23Pick pick4kgpcs1
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


新重汽 33.jpg

Fire fighting truck can be divided into many types:

a. According to vehicle size ,there are mini fire fighting truck ,light fire fighting truck ,medium fire fighting truck ,heavy-duty fire fighting truck;

b. According to chassis drive type ,there are 4x2 fire fighitng truck ,6x4 fire fighting truck ,8x4 fire fighitng truck and off-road type 4x4,6x6 fire truck;

c. According to chassis brand,ther are ISUZU ,Dongfeng,FOTON,FAW ,SINOTRUCK ,etc.

d. According to fire agent,there are water tank fire fighting truck ,water/foam fire fighting truck ,dry powder fire fighting truck

新重汽 38.jpg

Other products:

1. Dump Truck / Tipper Truck

2. Hohan tractor Truck/ prime mover truck

3. Truck with crane / Truck mounted crane

4. Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement trailer

10. High-altitude operation truck

11. Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )
