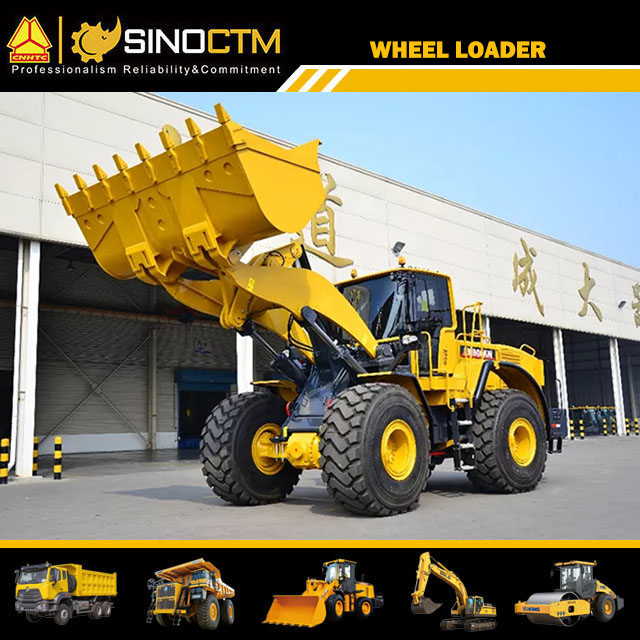

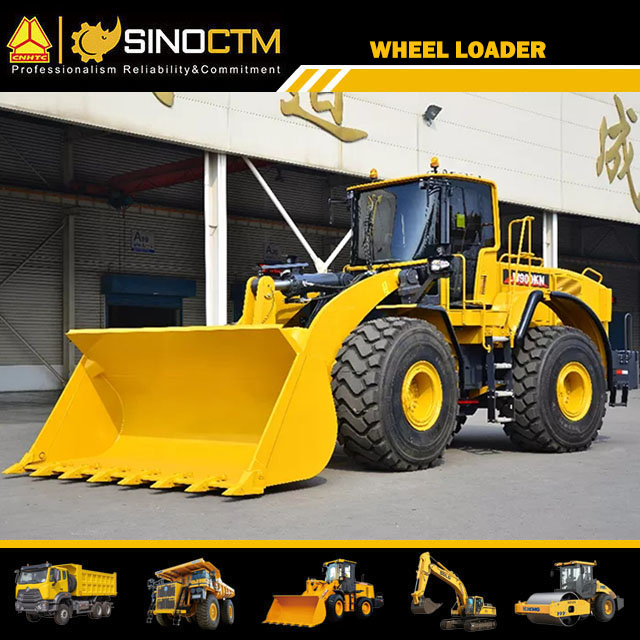

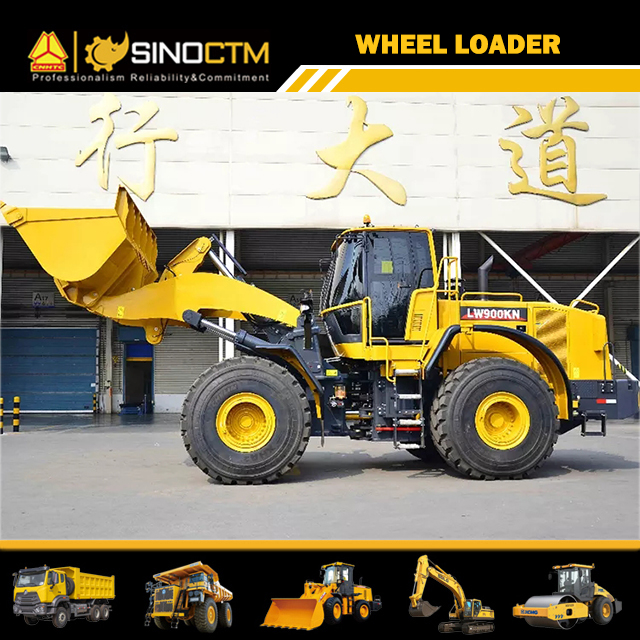

LW900KN Wheel Loader 9T
LW900KN Wheel Loader
Standard bucket: 5m³
Rated operating load :9000kg
Engine Model:CUMM-INS QSM11-C335(CUMMINS)
Gross Power:250/2100kW
Inquiry Now →

Product Description

新组合(23) 1.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg


XCMG LW900KN WHEEL LOADER SPECIFICATIONS
Wheel base3600mm
Tread2460mm
Dump clearance at maximum lift3400mm
Reach at maximum lift1400mm
Height of hinge at maximum lift height4600mm
Working height(fully lifted)6415mm
Overall machine dimension L×W×H9500×3500×3845mm
Rated operating load9000kg
Bucket capacity5m³
Machine weight31000kg
Max.breakout force260kN
Max.horse power245kN
Lifting time of boom≤6.5s
Total cycle time≤11.5s
Minimum turning radius (at tire center)6200mm
Articulation angle±38°
Gradeability25°
Tyre size29.5R25
EngineModelCUMM-INS QSM11-C335
Rated Power/Speed250/2100kW/rpm
Travel Speed I-gear(F/R)7/7km/h
II-gear(F/R)11.6/11.6km/h
III-gear(F/R)24.5/24.5km/h
IV-gear(F)35km/h
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


新组合 2.jpg

XCMG Official 9 ton New Wheel Loader Construction Equipment LW900KN

LW900KN wheel loader is the latest generation product of world's advanced level built with all efforts by XCMG with the globalized R&D platform. Featuring strong power, high firmness and reliability, high energy-conservation and efficiency, high driving/riding comfort, and high operation safety, it's the first-choice production equipment for ports, logistics.

* The scientifically matched and in-depth optimized drive system and the transmission and drive axle of international advanced quality achieve higher efficiency and reliability.

* The extended wheelbase heavy-load design and the structural parts analyzed and optimized by 3D simulation meet the operation needs under severe working conditions.

* The load-sensing variable technology is applied to supply the oil pressure and flow depending on the working needs, which greatly improves the utilization efficiency of fuel.

* The independent single-row radiator system with large fin spacing is applied to thoroughly solve the thermal balance difficult during operations under diversified severe environments.
