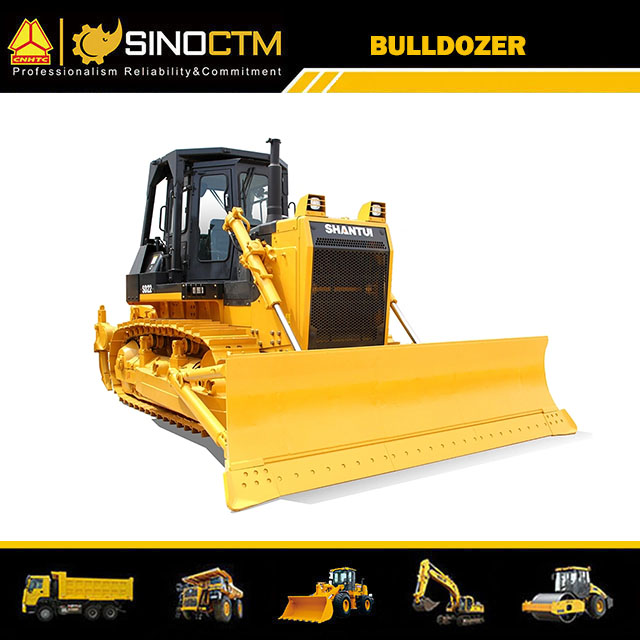

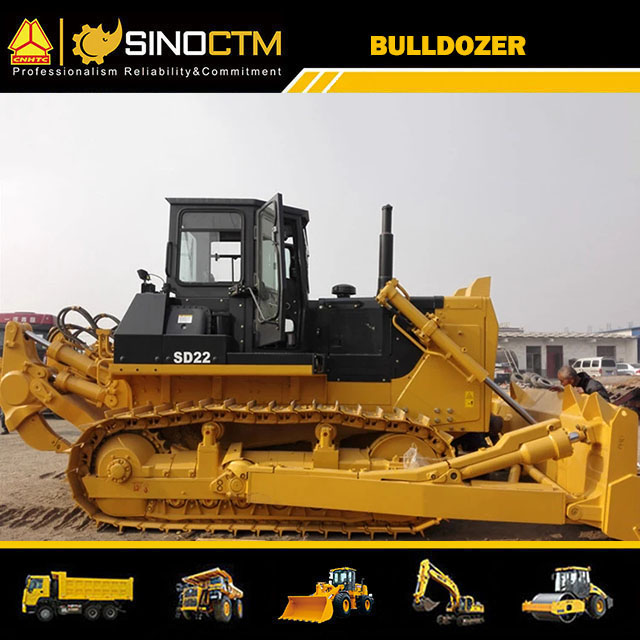

SHANTUI SD22 BULLDOZER 220hp
SHANTUI SD22 BULLDOZER
Operating weight: 23400kg
Engine model: Cummins NT855-C280S10
Rated power: 162kw / 1800rpm
Blade width:4200mm
Blade height:1350mm
Scraper capacity:6.4m³
Overall dimensions:6805x3725x3332mm
( with ripper )
Inquiry Now →

Product Description

企业横幅 6-2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg


SHANTUI SD22 BULLDOZER SPECIFICATIONS
ENGINE
ModelCummins NT855-C280S10; In-line, water cooled 4-cycle, overhead valve direct injection, turbocharged diesel
Rated power162kw / 220hp
Number of cylinders6—139.7 x 152.4 mm (bore x stroke)
Piston displacement14.01L
Min. Fuel consumption205g/kW.h
Maximum torque1030N.m@1300rpm
     POWER TRANSMISSION SYSTEM
Torque converter3-element, 1 stage, 1 phase
TransmissionPlane tary type, power-shift, forced lubrication
Main driveSpiral bevel gear, single-stage speed reduction, splash lubrication
Steering clutchWet, multi-disc, spring loaded, hydraulically separated, hydraulic control
Steering brakeWet, floating, direct on-off hydraulic inter-linking operation
Final drive3-stage speed reduction of spur gear, splash lubrication
         TRAVEL SPEED
Gear1st2nd3rd
Forward0-3.6km/h0-6.5km/h0-11.2km/h
Reverse0-4.3km/h0-7.7km/h0-13.2km/h
UNDERCARRIAGE SYSTEM
TypeSwing type of sprayed beam, suspended structure of equalizer bar
Carrier rollers2 each side
Track rollers6 each side
Track typeAssembled, single-grouser
Width of track shoes560mm
Pitch216mm
HYDRAULIC SYSTEM
Maximum pressure14Mpa
Pump typeGear pump
Discharge262L/min
Bore of working cylinder * no120mm * 2
BLADE
Blade typeStraight tilt ( STANDARD )AngleU blade
Dozing capacity6.4m34.7m37.5m3
Efficiency( theoretical value 40m )330m3/h245m3/h365m3/h
Blade width3725mm4365mm3725mm
Blade height1315mm1055mm1374mm
Maximum drop below ground538mm535mm540mm
Maximum tilt adjustment>735 mm>500mm>755mm
Weight of blade2830 kg3254 kg3419 kg
RIPPER ( OPTIONAL )
Max digging depth of 3 shank ripper666mmMaximum digging depth of single ripper695 mm
Max lift above ground555mmMaximum lift above ground515 mm
Weight of 3 shank ripper2495kgWeight of single ripper2453 kg
DIMENSIONS
Dimension6805x3725x3332mm( with ripper )
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


新组合 2.jpg

The SD22 is a large horsepower, advanced technology bulldozer with a Cummins 855C engine delivering high torque yet low fuel consumption. An exhaust turbocharger ensures uninterrupted performance at altitudes up to 3200m. Hydraulic drive and control technology deliver reliable performance and easy control.

新推土机组合 1.jpg
