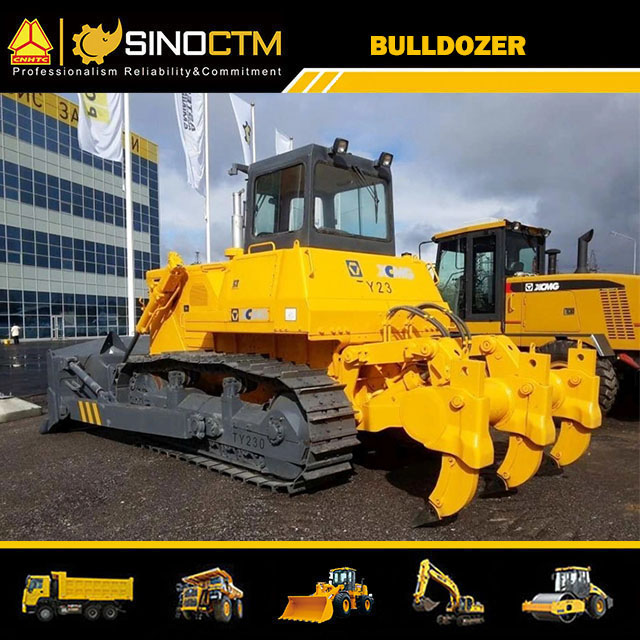

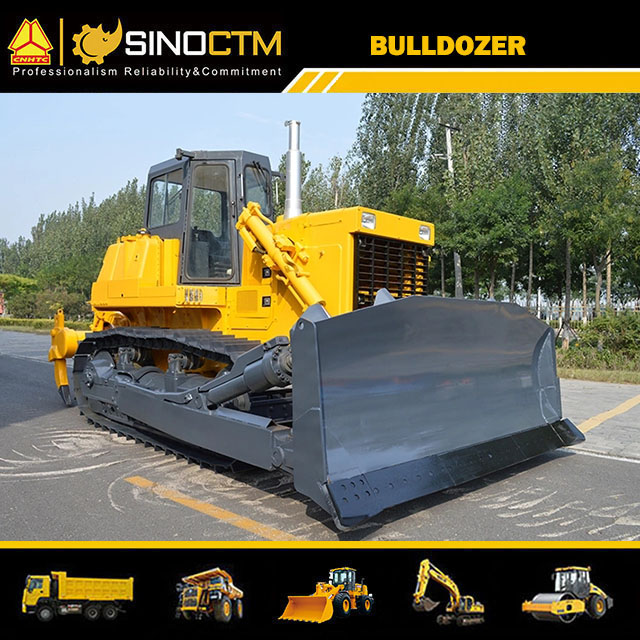

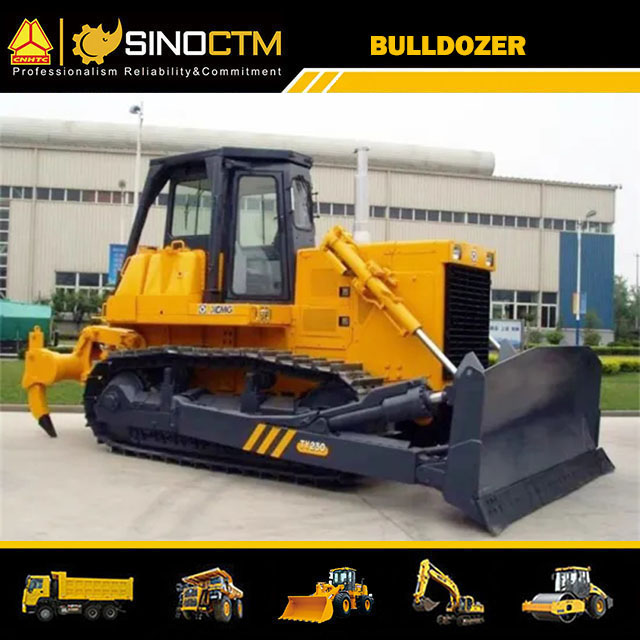

XCMG TY230 BULLDOZER 240hp 25T
XCMG TY230 BULLDOZER
Operating weight: 25740kg
Engine model: CUMMINS NT855-C280S10
Rated power: 179kw/2000rpm
Blade width:3725mm
Max digging depth:538mm
Scraper capacity:7.8m³
Overall dimensions:7043x3725x3471mm
( with ripper )
Inquiry Now →

Product Description

企业横幅 6-2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg


XCMG TY230 BULLDOZER SPECIFICATIONS
ENGINE
ModelCummins NT855-C280S10; In-line, water cooled 4-cycle, overhead valve direct injection, turbocharged diesel
Rated power179kw / 2000rpm
Number of cylinders6—139.7x 152.4 mm (bore x stroke)
Piston displacement14L
Maximum torque1033N.m@1400rpm
     POWER TRANSMISSION SYSTEM
Torque converter3-element, 1 stage, 1 phase
TransmissionPlanetary type, multi-late clutch, forced lubrication
Main driveSpiral bevel gear, single-stage speed reduction, splash lubrication
Steering clutchWet, multi-disc, spring loaded, hydraulically separated, hydraulic control
Steering brakeWet, floating, direct on-off hydraulic inter-linking operation
Final drive2-stage speed reduction of spur gear, splash lubrication
         TRAVEL SPEED
Gear1st2nd3rd
Forward0-3.8km/h0-6.8km/h0-11.3km/h
Reverse0-4.9km/h0-8.2km/h0-13.6km/h
UNDERCARRIAGE SYSTEM
TypeEight-beam swing,balanced beam suspension structure
Carrier rollers(each side)2 each side
Track rollers(each side)7 each side
Width of track shoes560mm
Grouser height72mm
Track gauge2000mm
HYDRAULIC SYSTEM
Maximum pressure13.7Mpa
Pump typeGear pump CBJ70-E160
Discharge90L/min
Bore of working cylinder * no120mm * 2  200mm*1
BLADE
Blade typeStraight tilt ( STANDARD )
Dozing capacity7.8m3
Blade width3725mm
Blade height1390mm
Maximum drop below ground538mm
Maximum tilt adjustment>735 mm
Weight of blade1500 kg
DIMENSIONS
Dimension7043x3725x3471( with ripper )
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


新组合 2.jpg

XCMG bulldozer which has excellent power, reliability and a long service life. Through the introduction of Japanese D65A-8 bulldozer technology, at the same time absorb the advantages of D60A-8. XCMG crawler bulldozer has been developed by the domestic design.



Technical Characteristics:

* The appearance of the vehicle is based on optimization design.

* High engine power reserve, strong torque output, low fuel consumption, reliable controls.

* Hydraulically powered, automatic speed change, shift the gears without stop the vehicle.

* Features high efficiency and capacity.

* Improve more stability, prolong the lifetime.

* New blade is more durable and capacious.

* Alarming & monitoring system is reliable.

* Reliable manual- operated spool valve and external mounted valve for easy maintenance.

新推土机组合 1.jpg
