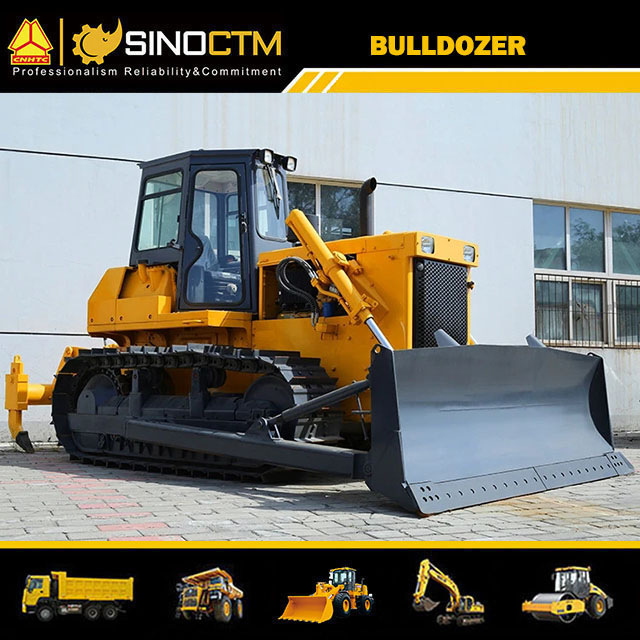

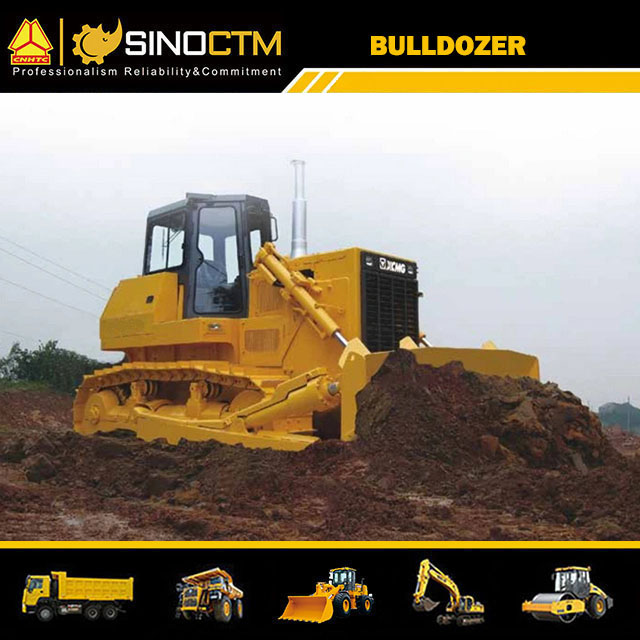

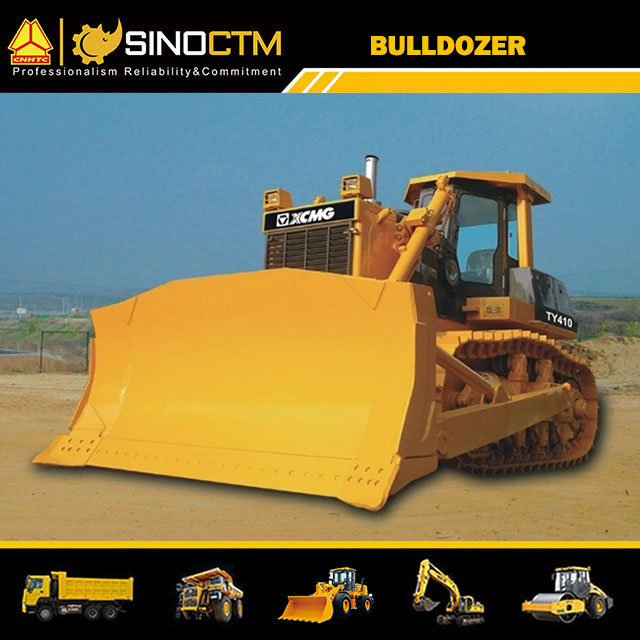

XCMG TY410 BULLDOZER 400hp 50T
XCMG TY410 BULLDOZER
Operating weight: 49500kg
Engine model: CUMMINS KTA19-C525
Rated power: 306kw /2000rpm
Blade width:4314mm
Max digging depth:749mm
Scraper capacity:14.6m³
Overall dimensions:9716x4314x3928mm
( with ripper )
Inquiry Now →

Product Description

企业横幅 6-2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg


XCMG TY410 BULLDOZER SPECIFICATIONS
ENGINE
ModelCUMMINS KTA19-C525; turtbocharged vertical four-stroke,PT pump injection
Rated power306kw /2000rpm
Number of cylinders6—159 x 159 mm (bore x stroke)
Piston displacement19L
Maximum torque1900N.m@1400rpm
     POWER TRANSMISSION SYSTEM
Torque converter3-element, 1 stage, 1 phase
TransmissionHand-operated,hydraulic shift,planetary gear,multiple-disc clutch,hydraulic-actuated,forced lubrication by gear pump,3 forward and 3 reverse speeds.
Main driveHelical bevel gear,splash lubricated
Steering clutchWet, multiple-disc, spring loaded, hand-operated with booster and hydraulic-released
Steering brakeWet, band brake,operated with hydraulic booster.
Final driveOne reduction,interplanetary gear, one reduction,splash lubrication
         TRAVEL SPEED
Gear1st2nd3rd
Forward0-3.4km/h0-6.7km/h0-12.2km/h
Reverse0-4.2km/h0-8.0km/h0-14.8km/h
UNDER CARRIAGE SYSTEM
Sprocketsegmented
No. Of carrier roller(each side)7(4 single,3 double)
Take tensionHydraulic-adjusted
HYDRAULIC SYSTEM
Maximum pressure20Mpa
Pump typeGear pump CBZb4160T
Rated flow264L/min
PumpOperated plungre,load response,pilot control.
Cylinder,Bore*Rod*Strokeφ140*φ90*1440mm
TRACK SYSTEM
TypeLubricated track
Track pitch260.35mm
Track width610mm
No. Of track shoes(each side)40
Length of track on ground3425mm
Track gauge2260mm
WORK EQUIPMENT
Blade typeSemi-U blade
Width* Height4314*1841mm
Max.lift above ground1620mm
Max.drop below ground749mm
Pitch adjustment52°
Max. Tilt1000mm
Blade capacity14.6m³
DIMENSIONS
Dimension9716x4314x3928 ( with ripper )
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


新组合 2.jpg

Performance Characteristics:

* Equipped with Cummins KTA19-C525 engine, more powerful and more reliable.

* Hydraulic gearshift transmission for easier gear shifts and lower impacts.

* 3-element, single stage, single phase torque converter for higher efficiency and bigger capacity.

* Newly cab for a wide view, ROPS-FOPS structure for safety.

* Three-stage alarm electron monitor system effectively monitors the movement of the machine.

* Implement control is piloted for less operating efforts. Hydraulic system effects according to the load feedback to save fuel.

* More pleased appearance; Improved operating comfort.

* New elastic and shock absorption track frame for increased adhesion force and added wheel life.

* Centralized lubrication for easy maintenance.

* Electric fuel feeder for easy fuel feeding.

新推土机组合 1.jpg
