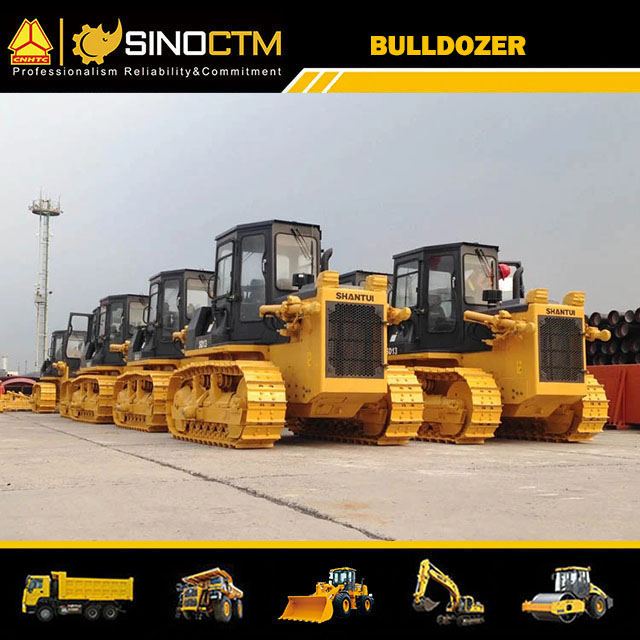

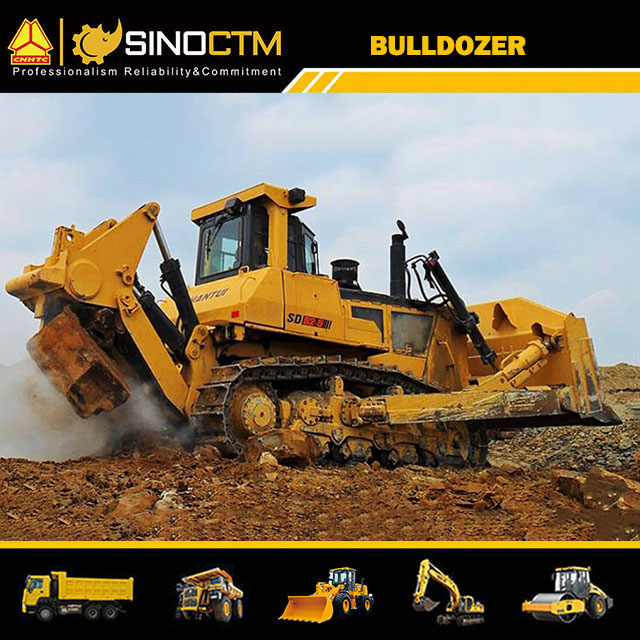

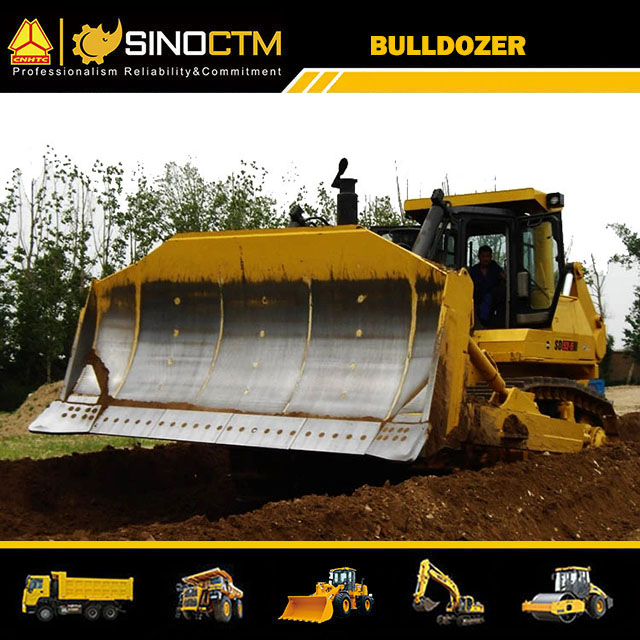

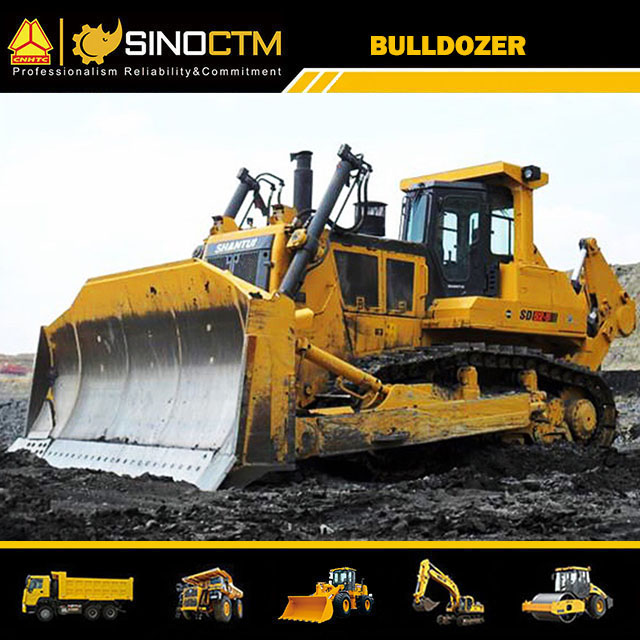

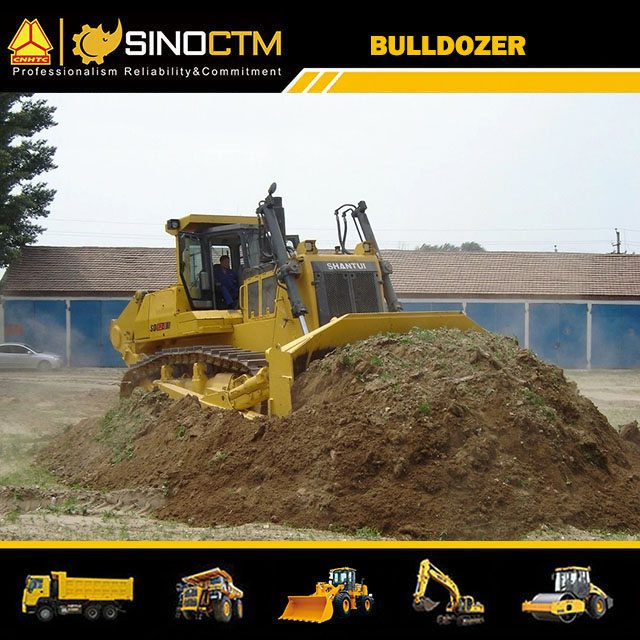

SHANTUI SD52-5 BULLDOZER 520hp
SHANTUI SD52-5 BULLDOZER
Operating weight: 70600kg
Engine model: Cummins QSK19
Rated power: 392kw / 1800rpm
Blade width:4690mm
Blade height:2250mm
Scraper capacity:18.5m³
Overall dimensions:10420x4690x4470mm
( with ripper )
Inquiry Now →

Product Description

企业横幅 6-2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg


SHANTUI SD52-5 BULLDOZER SPECIFICATIONS
ENGINE
ModelCummins QSK19Four-stroke, in-line,water-cooled electronic control, turbocharged air-air inter cooling diesel engine.
Rated power392kW
Number of cylinders6—159 x 159 mm (bore x stroke)
Piston displacement19L
Operating weight67.5t ( Ripper included)
     POWER TRANSMISSION SYSTEM
Torque converter3-element, 1 stage, 1 phase, torque converter with lockup clutch
TransmissionPlanetary type, multiple-disc clutch, hydraulically-actuated and forced lubricated
Main driveSpiral bevel gear, single- reduction, splash lubrication
Steering clutchLevel controlled steering clutches. Wet, multiple-disc, spring loaded, hydraulically released. Steering clutches and brakes are interconnected.
Steering brakePedal/level controlled steering brake.Wet,multiple-disc, spring loaded, hydraulically released and normally engaged. Steering clutches and brakes are interconnected.
Final driveSpur and planetary gear sets double-reduction, splash lubrication
         TRAVEL SPEED
Gear1st2nd3rd
Forward0-3.8km/h0-6.8km/h0-11.8km/h
Reverse0-5.1km/h0-9.2km/h0-15.8km/h
UNDERCARRIAGE SYSTEM
Minimum turning radius4200mm
Gradeability30°
Stability35°
Track gauge2500mm
Ground length3490mm
Min.ground clearance609mm
Number of carrier rollers2(each side)
Number of track rollers7( each side)
Number of carriers2 ( each side)
Track typeMaster link, single grouser, sealed and lubricated.
Width of track shoes610mm
Pitch218.0mm
Number of track shoes40( each side)
BLADE
Blade typeSemi-U blade
Dozing capacity18.5m3
Blade width4680x2260mm
Maximum drop below ground of blade720mm
Maximum lift height1860mm
Maximum tilt730mm
RIPPER ( OPTIONAL )
Ripper typeSingle-shank ripper
Ripping depth of ripper1435mm
Lifting height of ripper1105mm
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


新组合 2.jpg

The SD52-5 is the largest bulldozer ever produced in China.You’ve got to see its size and power with your own eyes to believe it ! SD52-5 features modular design for easy disassembly and speed repair. Its powerful air-cooled, electronically control low fuel consumption engine compiles with euro III emission standards and delivers world- class fail-safe systems testing, noise isolation, control and comfort features for operator safety and productivity.

新推土机组合 1.jpg
