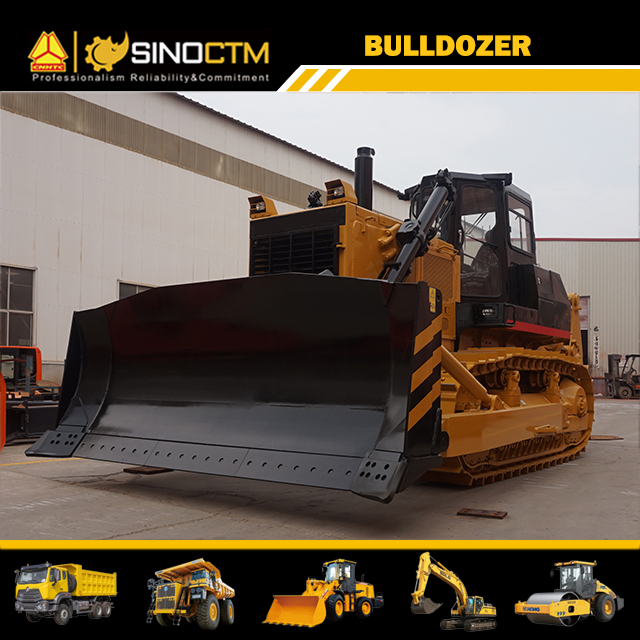

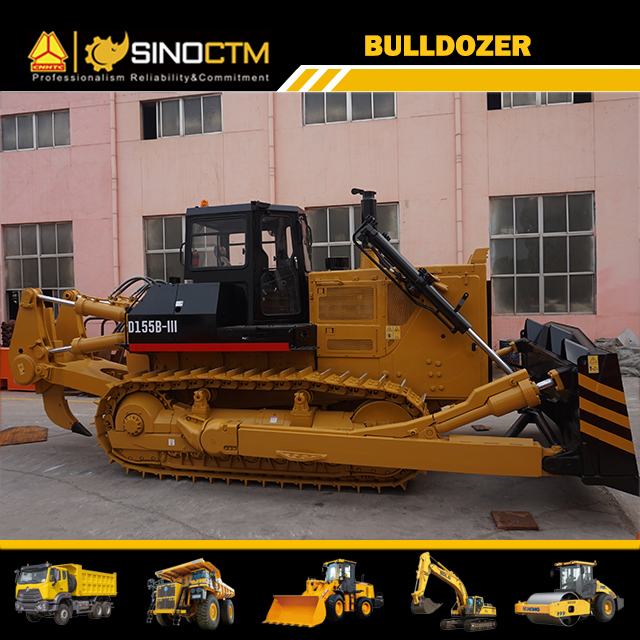

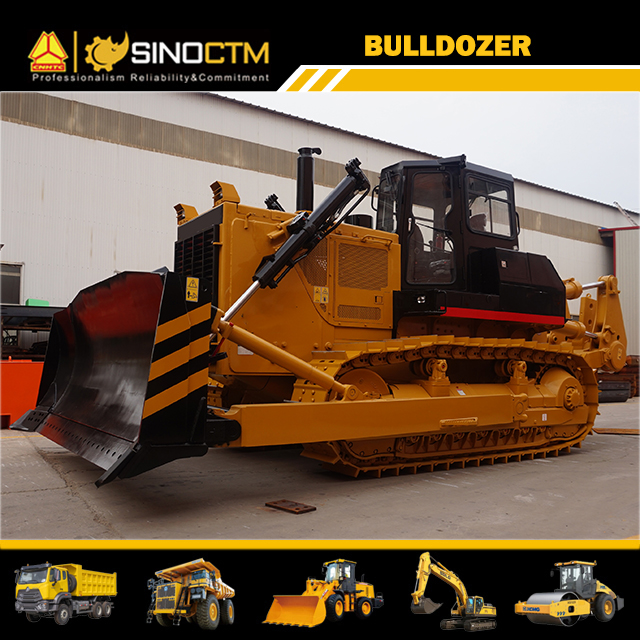

D155B-15 BULLDOZER
D155B-15 BULLDOZER
Operating weight: 38000kg
Engine model: CUMMINS NTA855-C360S10
Rated power:257kw (345 HP)/2000 rpm
Blade width:4130mm
Blade height:1590mm
Scraper capacity:10.5m³
Overall dimensions:8650x4130x3725mm
( with ripper )
Inquiry Now →

Product Description

企业横幅 6-2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg

D155B-15 BULLDOZER SPECIFICATIONS
WEIGHT
Operating weight38000 kg
With ripper attachment41800 kg
ENGINE
ModelCUMMINS NTA855-C360S10 4-stroke cycle, turbocharged,intercooled, in-line
Rated power257 kW (345 HP) @ 2000 rpm
Number of cylinders6—Ø139.7 mm x 152.4 mm(bore x stroke)
Piston displacement14.01L
Min. Fuel consumption245g / kW.h
Maximum torque1440 N.m @ 1400 rpm
     POWER TRANSMISSION SYSTEM
Torque converter3-element, 1 stage, 1 phase
TransmissionPower-shift, planetary gear, multiple-disc clutch, hydraulically forced lubrication driven by gear
Central drive shaftSpiral bevel gear, single-stage speed reduction, splash lubrication
Final drive2-stage spur gear speed reduction,splash lubrication
         TRAVEL SPEED
Gear1st2nd3rd
Forward0-4.0km/h0-6.8km/h0-11.8km/h
Reverse0-4.6km/h0-8.2km/h0-14.1km/h
UNDERCARRIAGE SYSTEM
TypeOscillation-type with equalizer bar and forward mounted pivot shafts
Carrier rollers2 each side
Track rollers7 each side
Track typesingle-grouser
Width of track shoes560mm
Pitch228.6mm
HYDRAULIC SYSTEM
Maximum pressure14Mpa
Pump typeGear pump
Discharge336L/min
Bore of working cylinder * no140mm * 2
STEERING SYSTEM
Steering clutchWet type, multiple-disc, spring loaded,hydraulically separated, hand-operated hydraulic controls
Steering brakeWet type, band brake, foot pedal-operated(with hydraulic booster and clutch linkage)

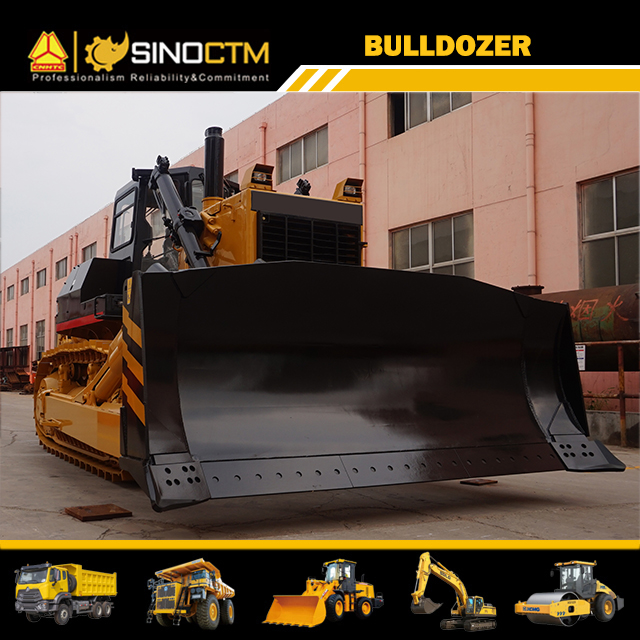

WORKING EQUIPMENT AND ATTACHMENT
Straight-tilt dozerHydraulically-actuated with servo valve
Blade supportBrace type with tilt cylinder on the right side
Width4130mm
Height1590mm
Blade capacity10.8 m³
Max. lift above ground1560 mm
Max. drop below ground560 mm
Max. tilt adjustment1000 mm
Blade weight4520 kg
COOLANT AND LUBRICANT CAPACITY
Coolant  121 L
Fuel tank600 L
Engine oil47 L
Hydraulic oil tank164 L
Bevel gear case185 L
Final drive case55 L (each side)

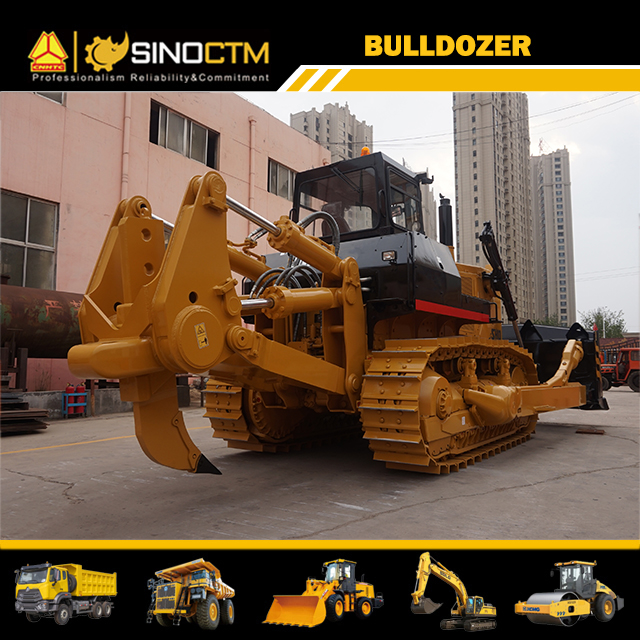

Ripper
For multi-shank ripper
Max. digging depth842 mm
Max. lift above ground883 mm
No. of shank(s)3
For single-shank ripper
Max. digging depth1250 mm
Max. lift above ground965 mm
No. of shank(s)1
DIMENSIONS
Dimension8650x4130x3725mm ( with ripper )
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

新组合 2.jpg

Our range of bulldozers are constructed with the finest craftsmanship to withstand the most extreme climatic conditions that Mother Nature has to offer. Through years of research and data analysis, We has perfected the finer details of its bulldozers by achieving excellent ground holding capability and superior mobility through rough terrains.



Besides incorporating the best of components such as engines, transmissions, undercarriages and hydraulic parts available in today’s marketplace, We also adopts a minimalistic approach during the design process of its bulldozers. By keeping its configuration simple, it has enabled users regardless of their skill levels to operate the bulldozer effectively.



What differentiates a great bulldozer from a regular one is its structural frame. We prides itself on using a highly reinforced hull frame that is welded together by robots as its core. The frame is then tested by a five-axis measuring device to ensure its quality and fit. This extensive process ensures that all other components fits onto the frame perfectly resulting in a flawless machine.


新组合 3.jpg
