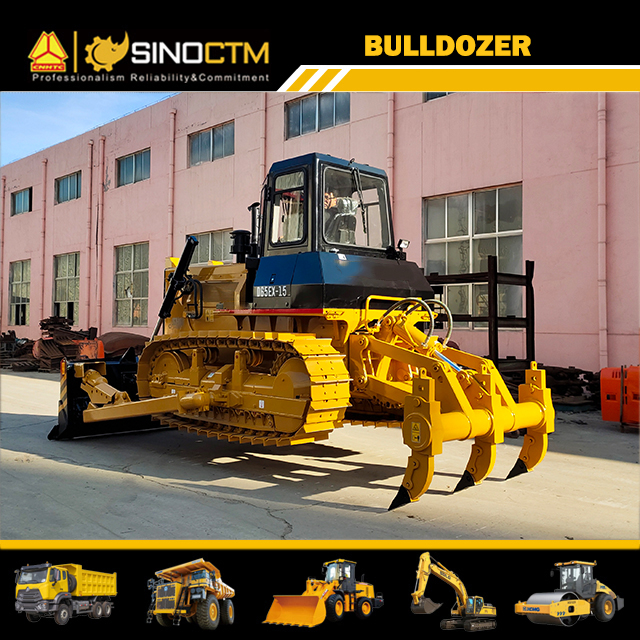

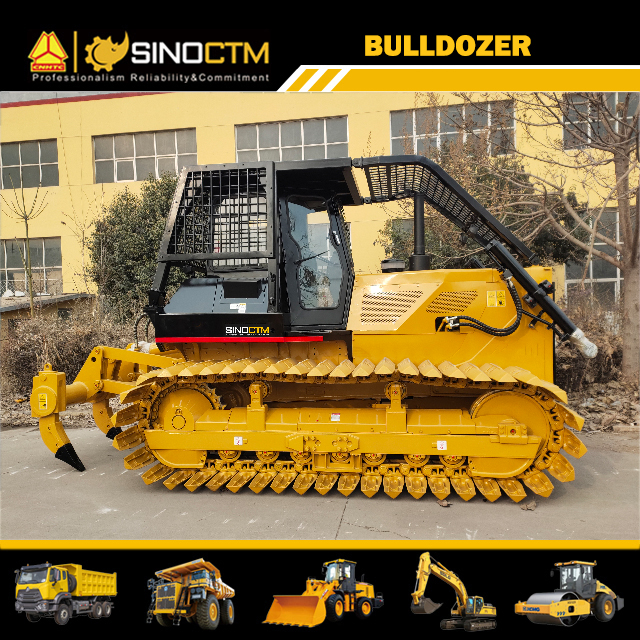

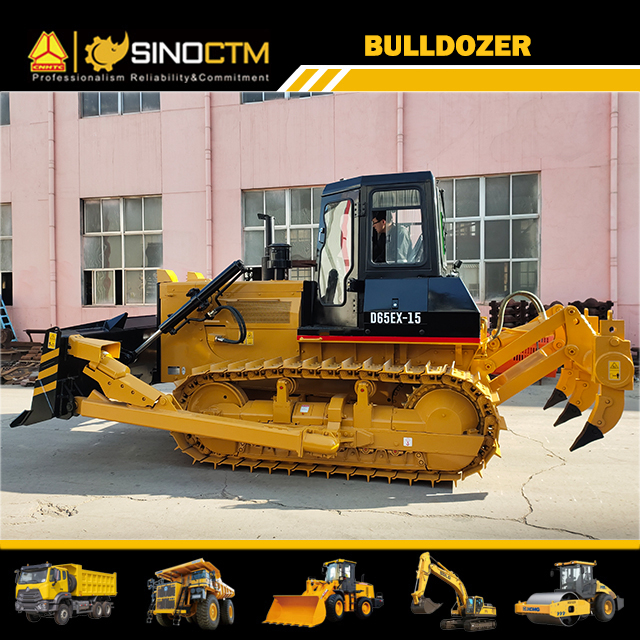

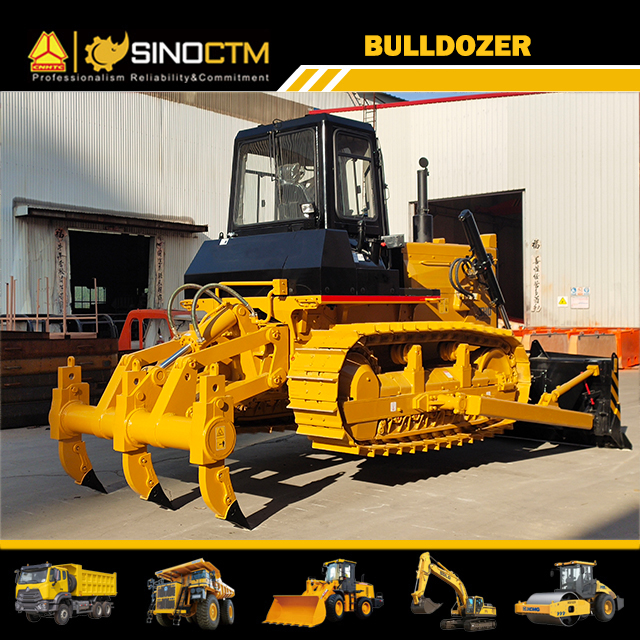

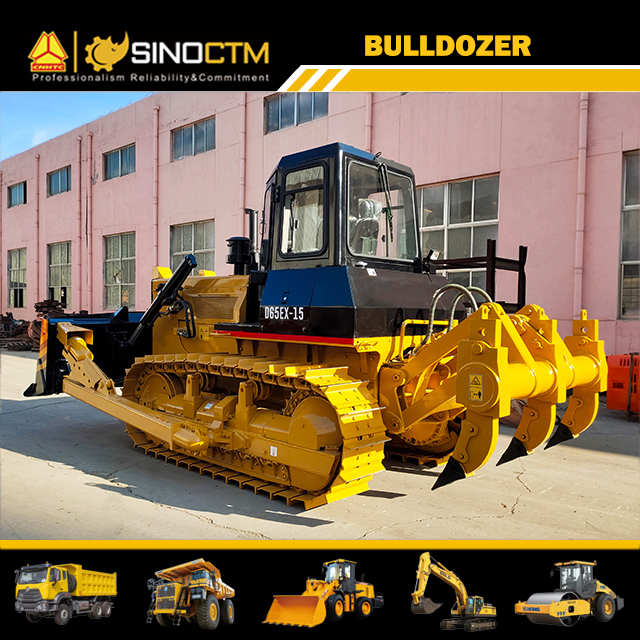

D65EX-15 BULLDOZER
D65EX-15 BULLDOZER
Operating weight: 18300kg
Engine model: Shangchai SC11CB184G2B1
Rated power:130 kw (178 HP)/1850 rpm
Blade width:3388mm
Blade height:1150mm
Scraper capacity:5.0m³
Overall dimensions:6360x338x3100mm
( with ripper )
Inquiry Now →

Product Description

企业横幅 6-2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg

D65EX-15 BULLDOZER SPECIFICATIONS
WEIGHT
Operating weight18300 kg
With ripper attachment19800 kg
ENGINE
ModelShangchai SC11CB184G2B1 4-stroke cycle, turbocharged,intercooled, in-line
Rated power130 kW (178 HP) @ 1850 rpm
Number of cylinders6—Ø126 mm x 130 mm (bore x stroke)
Piston displacement9.73L
Min. Fuel consumption214g / kw.h
Maximum torque764 N.m @ 1400 rpm
     POWER TRANSMISSION SYSTEM
Torque converter3-element, 1 stage, 1 phase
TransmissionPower-shift, planetary gear, multiple-disc clutch, hydraulically forced lubrication driven by gear
Central drive shaftSpiral bevel gear, single-stage speed reduction, splash lubrication
Final drive2-stage spur gear speed reduction,splash lubrication
         TRAVEL SPEED
Gear1st2nd3rd
Forward0-3.6km/h0-6.1km/h0-10.3km/h
Reverse0-4.7km/h0-8.0km/h0-12.9km/h
UNDERCARRIAGE SYSTEM
TypeOscillation-type with equalizer bar and forward mounted pivot shafts
Carrier rollers2 each side
Track rollers6 each side
Track typesingle-grouser
Width of track shoes510mm
Pitch203mm
HYDRAULIC SYSTEM
Maximum pressure14Mpa
Pump typeGear pump
Discharge243L/min
Bore of working cylinder * no110mm * 2
STEERING SYSTEM
Steering clutchWet type, multiple-disc, spring loaded,hydraulically separated, hand-operated hydraulic controls
Steering brakeWet type, band brake, foot pedal-operated(with hydraulic booster and clutch linkage)
WORKING EQUIPMENT AND ATTACHMENT
Straight-tilt dozerHydraulically-actuated with servo valve
Blade supportBrace type with tilt cylinder on the right side
Width3388mm
Height1150mm
Blade capacity5.0 m³
Max. lift above ground1110 mm
Max. drop below ground540 mm
Max. tilt adjustment400 mm
Blade weight2454 kg
COOLANT AND LUBRICANT CAPACITY
Coolant  60 L
Fuel tank300 L
Engine oil20 L
Hydraulic oil tank108 L
Bevel gear case35 L
Final drive case24 L (each side)
Ripper
For multi-shank ripper
Max. digging depth510 mm
Max. lift above ground550 mm
No. of shank(s)3
For single-shank ripper
Max. digging depth510 mm
Max. lift above ground550 mm
No. of shank(s)1
DIMENSIONS
Dimension6360x3388x3100mm ( with ripper )
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

新组合 2.jpg

Our range of bulldozers are constructed with the finest craftsmanship to withstand the most extreme climatic conditions that Mother Nature has to offer. Through years of research and data analysis, We has perfected the finer details of its bulldozers by achieving excellent ground holding capability and superior mobility through rough terrains.



Besides incorporating the best of components such as engines, transmissions, undercarriages and hydraulic parts available in today’s marketplace, We also adopts a minimalistic approach during the design process of its bulldozers. By keeping its configuration simple, it has enabled users regardless of their skill levels to operate the bulldozer effectively.



What differentiates a great bulldozer from a regular one is its structural frame. We prides itself on using a highly reinforced hull frame that is welded together by robots as its core. The frame is then tested by a five-axis measuring device to ensure its quality and fit. This extensive process ensures that all other components fits onto the frame perfectly resulting in a flawless machine.
