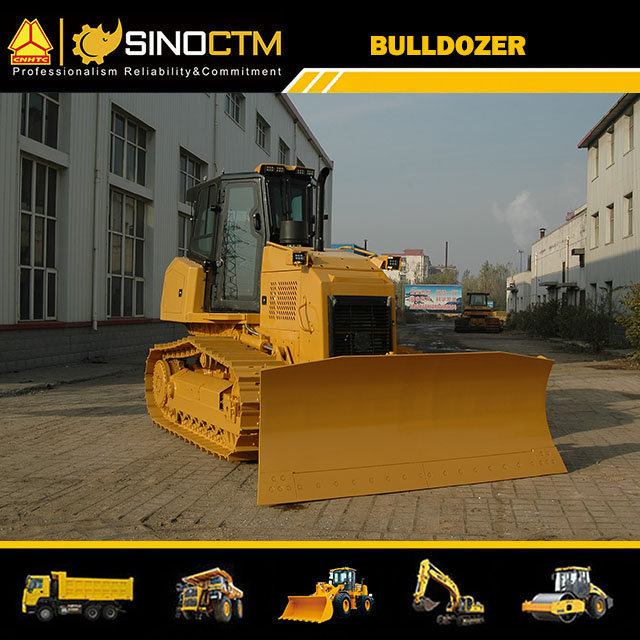

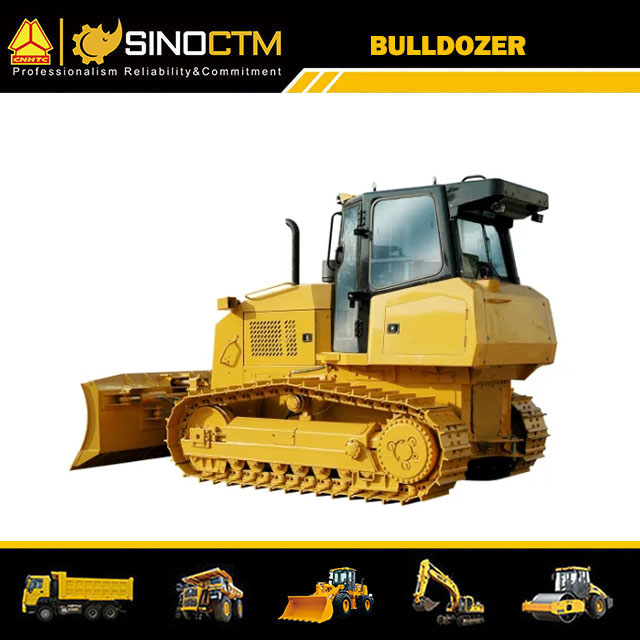

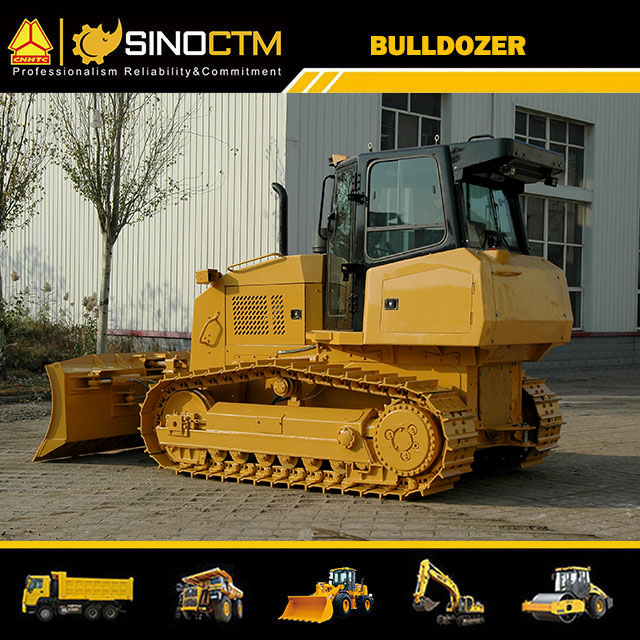

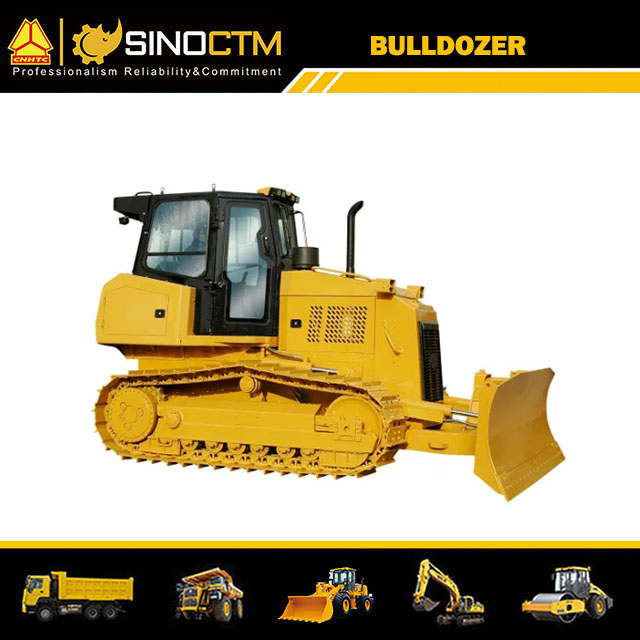

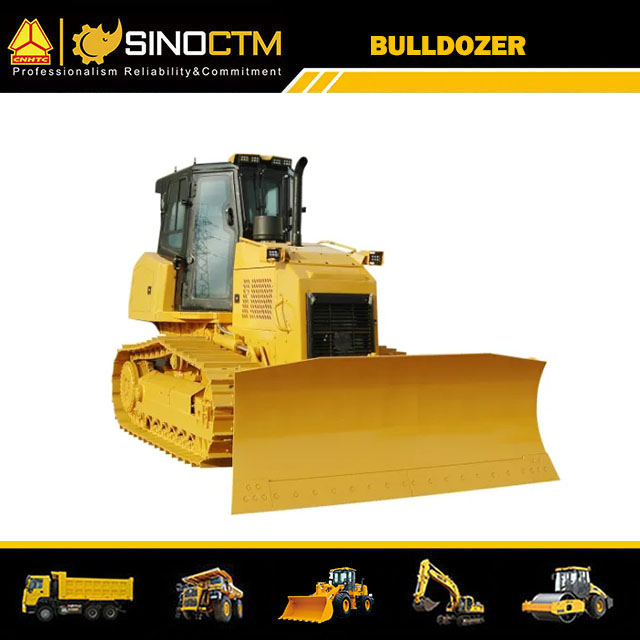

HBXG SD5K BULLDOZER
HBXG SD5K BULLDOZER
Operating weight:13100kg
Engine model: WEICHAI WP6G125E332
Rated power: 97kw /2200rpm
Blade width:3060mm
Max digging depth:460mm
Scraper capacity:3.1m³
Overall dimensions:4922x3060x3000mm
( without ripper )
Inquiry Now →

Product Description

企业横幅 6-2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg


HBXG SD5K BULLDOZER SPECIFICATIONS
SPECIFICATIONS
DozerPAT ( Power Angel Tilting Blade )Operating weight (without ripper)13100kg
Ground pressure45KpaTrack gauge1790mm
Gradient30°/25°Min ground clearance315mm
Dozing capacity3.1m3Blade width3060mm
Max digging depth460Overall dimension without ripper4922x3060x3000mm
ENGINE
TypeWEICHAI WP6G125E332Flywheel power97kw/132hp
Rated revolution2200rpmMax torque570N.m/1450rpm
Rated fuel consumption≤190g/kw.h----
UNDERCARRIAGE SYSTEM
TypeNormal track type semi suspendedNumber of track rollers ( each side )7
Number of carrier rollers ( each side )1Pitch190mm
Width of shoe510mm----
GEAR
Forward0-10.5km/hBackward0-10.5km/h
Implement hydraulic system
Max system pressure19MpaPump typeVariable displacement piston pump
System output125L/min----
DRIVING SYSTEM
Dual circuits electronic control hydrostatic system
Wet type multi-disc brake
Modularize one-stage planetary + one stage spur reduction gear mechanism
Palm dictate electric joystick
Intelligent services system
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


新组合 2.jpg

SD5K is the track-type total hydraulic bulldozer with semi-rigid suspended, electronic control tier Ⅲ, dual-circuits electronic control hydrostatic driving system, electric control closed center load sending implement hydraulic system. Power–Angle-Tilting blade, automatic control independent cooling system. This model is equipped with electrical controlled engine of full power matching pattern, with continuously variable transmission and pivot steering function, modular design and easy to repair and maintenance; the electro-hydraulic proportional control walking system and work device make the operating precise and comfortable; Human-computer interaction instrument display, intelligent service system, fully sealed air conditioning cab. It can be equipped with three shanks ripper. It is an ideal machine used in exquisite or heavy load working such as harbor construction, communication construction, stadium, electric power project, city and town earth moving, backfill modeling and leveling working.

新推土机组合 1.jpg
