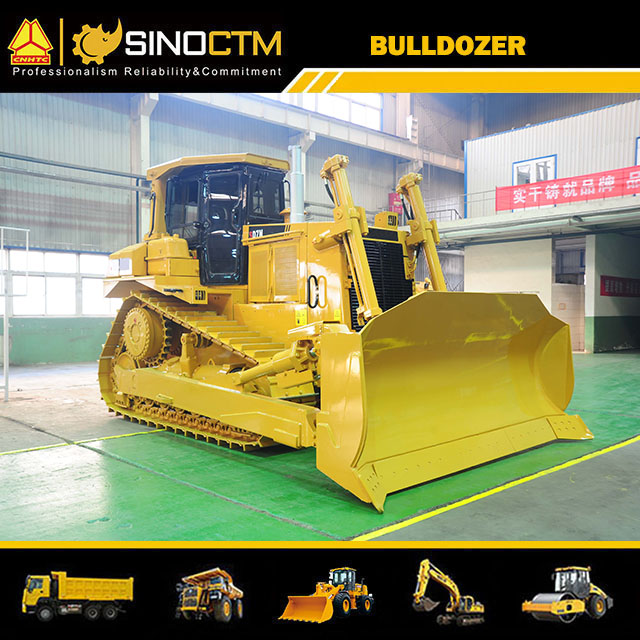

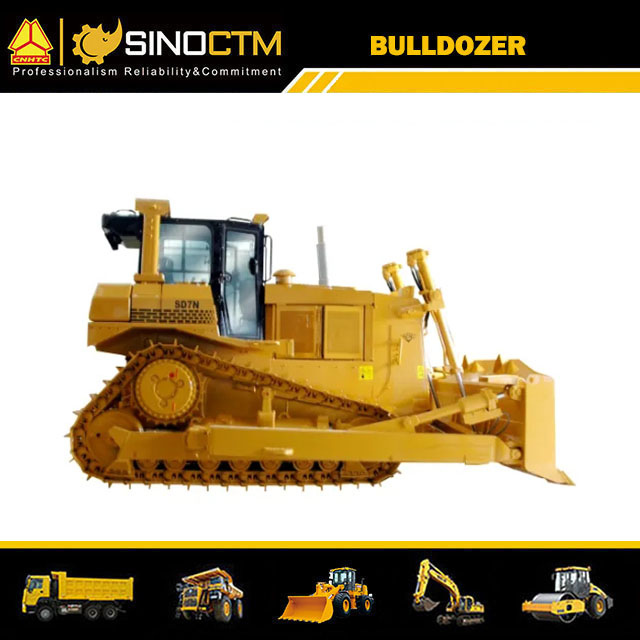

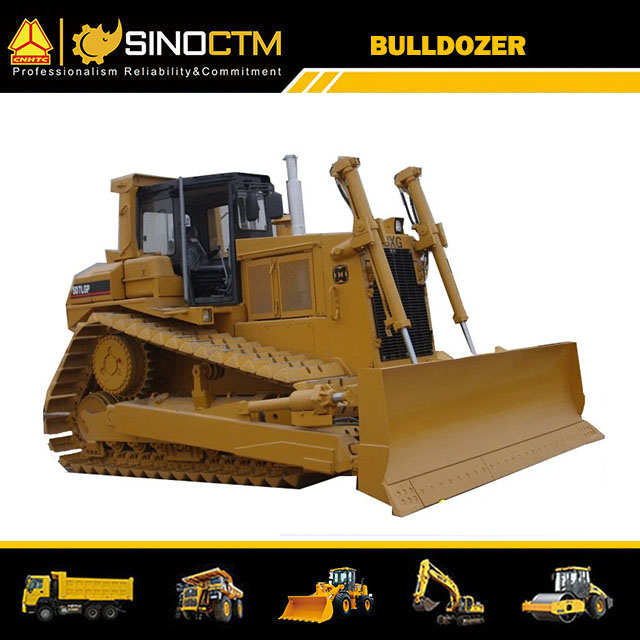

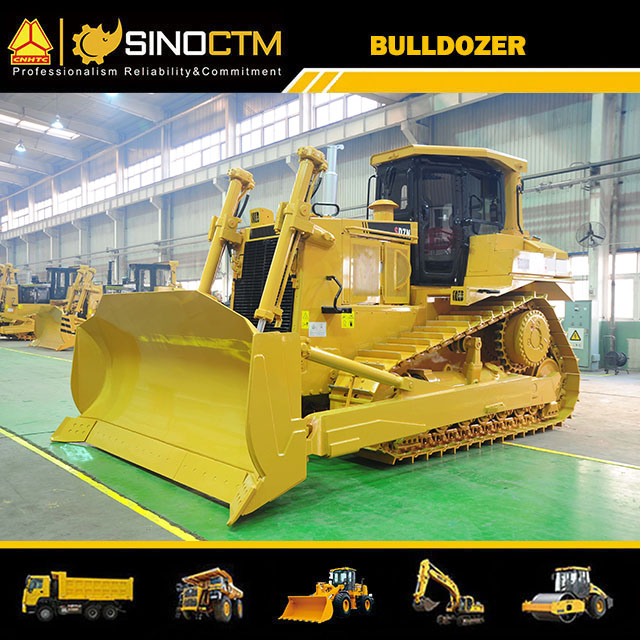

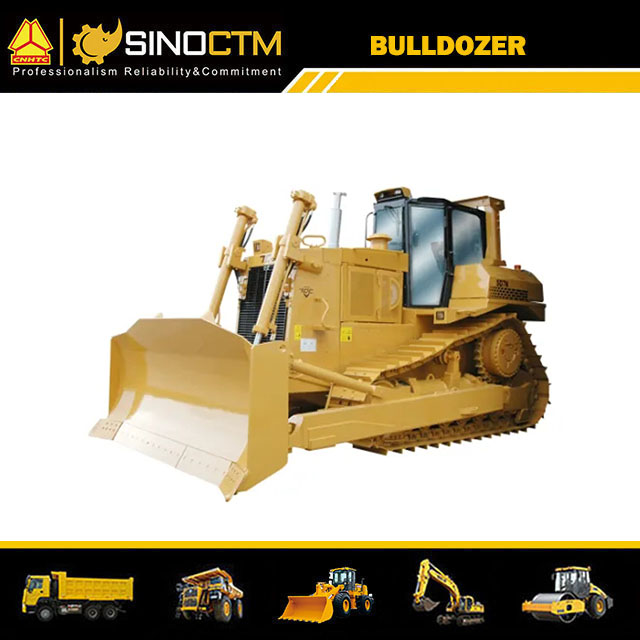

HBXG SD7N BULLDOZER 25T
HBXG SD7N BULLDOZER
Operating weight:23800kg
Engine model: Cummins NTA855-C280S10
Rated power: 169kw /2100rpm
Blade width:3500mm
Max digging depth:498mm
Scraper capacity:8.4m³
Overall dimensions:5677x3500x3402mm
( without ripper )
Inquiry Now →

Product Description

企业横幅 6-2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg



HBXG SD7N BULLDOZER SPECIFICATIONS
SPECIFICATIONS
DozerTiltOperating weight (without ripper)23800
Ground pressure71.9KpaTrack gauge1980mm
Gradient30°/25°Min ground clearance404mm
Dozing capacity8.4m3Blade width3500mm
Max digging depth498mmOverall dimension without ripper5677x3500x3402mm
Overall dimension with ripper7616x3500x3402mm----
ENGINE
TypeCummins NTA855-C280S10Flywheel power169kw/230hp
Rated revolution2100rpmMax torque1097N.m/1500rpm
Rated fuel consumption≤235g/kw.h----
UNDERCARRIAGE SYSTEM
TypeThe track is triangle shape, the sprocket is elevated elastic suspendedNumber of track rollers ( each side )7
Pitch216mmWidth of shoe560mm
GEAR
Gear1st2nd3rd
Forward0-3.9km/h0-6.5km/h0-10.9km/h
Backward0-4.8km/h0-8.2km/h0-13.2km/h
Implement hydraulic system
Max system pressure18.6MpaPump typeHigh pressure gears pump
System output194L/min----
DRIVING SYSTEM
Torque converterTorque converter is power separating hydraulic mechanic type
TransmissionPlanetary,power shift transmission with three speeds forward and three reverse, speed and direction can be quickly shifted
Steering clutchThe steering clutch is hydraulic pressed, usually separated clutch
Braking clutchThe braking clutch is pressed by spring, separated hydraulic, meshed type
Final driveThe final drive is two-stage planetary reduction gear mechanism, splash lubrication
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


新组合 2.jpg

SD7N bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and

hydraulic controls.

SD7 bulldozer 230 horsepower, it’s track type bulldozer with elevated sprocket power shift drive, semi-rigid suspended and hydraulic controls. It’s with modular design is easy to repair & maintenance, It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.

It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROPS, FOPS, forest defence cabin etc.. It is can ideal machine used in communication, oil field, power, mining etc. large earth moving program.

新推土机组合 1.jpg
