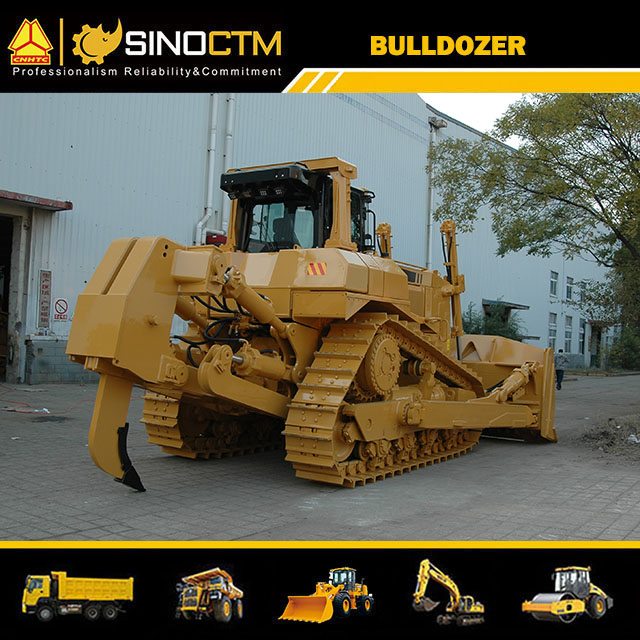

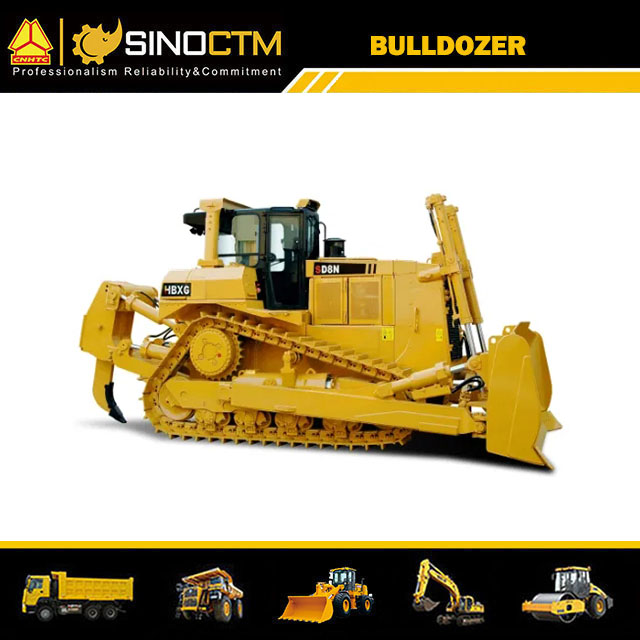

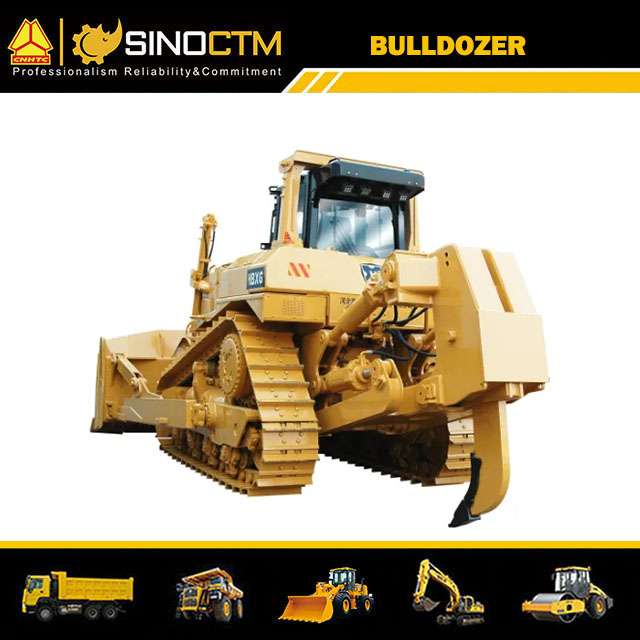

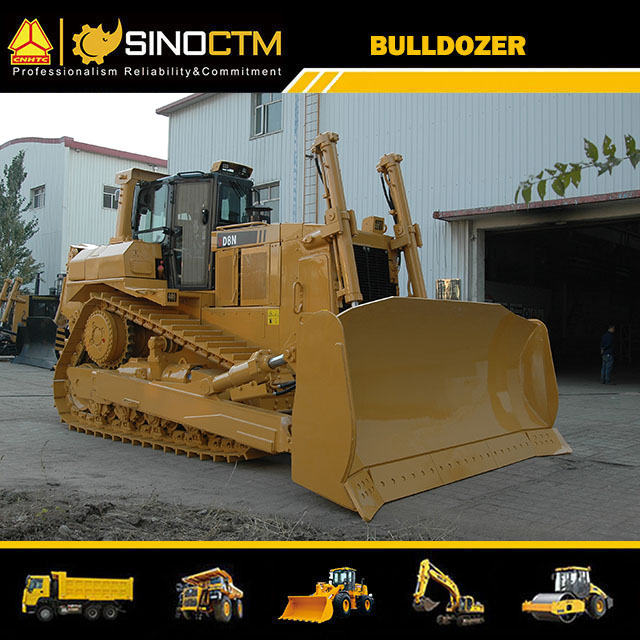

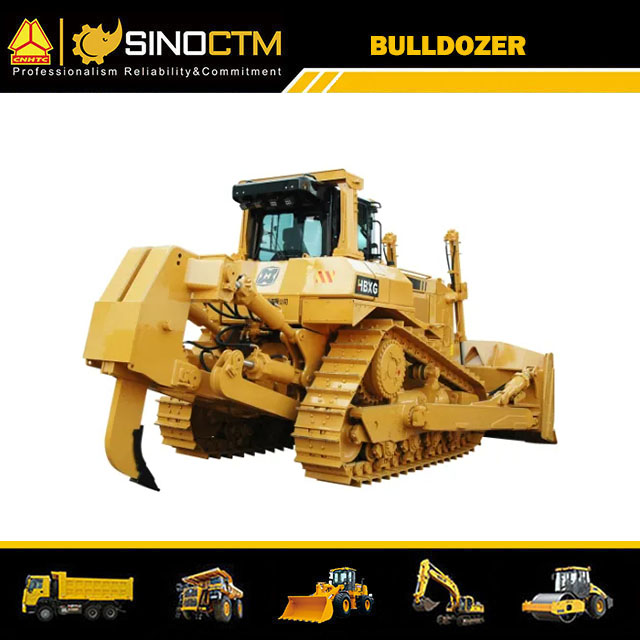

HBXG SD8N BULLDOZER 37T
HBXG SD8N BULLDOZER
Operating weight: 36800kg
Engine model: Cummins NTA855-C360S10
Rated power: 235kw /2100rpm
Blade width:3940mm
Max digging depth:582mm
Scraper capacity:11.24m³
Overall dimensions:7751x3940x3549mm
( without ripper )
Inquiry Now →

Product Description

企业横幅 6-2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg


HBXG SD8N BULLDOZER SPECIFICATIONS
SPECIFICATIONS
DozerTiltOperating weight (without ripper)36800
Ground pressure93KpaTrack gauge2083mm
Gradient30°/25°Min ground clearance556mm
Dozing capacity11.24m3Blade width3940mm
Max digging depth582Overall dimension with ripper7751x3940x3549mm
ENGINE
TypeCummins NTA855-C360S10Flywheel power235kw/320hp
Rated revolution2100rpmTorque storage coefficient20%
UNDERCARRIAGE SYSTEM
TypeThe track is triangle shape, the sprocket is elevated elastic suspendedNumber of track rollers ( each side )8
Pitch216mmWidth of shoe560mm
GEAR
Gear1st2nd3rd
Forward0-3.5km/h0-6.2km/h0-10.8km/h
Backward0-4.7km/h0-8.1km/h0-13.9km/h
Implement hydraulic system
Max system pressure20MpaPump typeHigh pressure gears pump
System output220L/min----
DRIVING SYSTEM
Torque converterTorque converter is power separating hydraulic mechanic type
TransmissionPlanetary,power shift transmission with three speeds forward and three reverse, speed and direction can be quickly shifted
Steering clutchThe steering clutch is hydraulic pressed, usually separated clutch
Braking clutchThe braking clutch is pressed by spring, separated hydraulic, meshed type
Final driveThe final drive is two-stage planetary reduction gear mechanism, splash lubrication
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


新组合 2.jpg

SD8N bulldozer is track-type dozer with elevated sprocket, hydraulic direct drive, semi-rigid suspended and hydraulic controls. Equipped with power separating hydraulic-mechanic type Torque converter, planetary, power shift and one lever control transmission. SD8N bulldozer equipped with integrated hydraulic system, electric monitoring, SD8N bulldozer can be quipped with many optional equipment and attachment, it can be used in road building, hydro-electric construction, land clearance, port and mine development and other construction field.

新推土机组合 1.jpg


Other products:

1. Dump Truck / Tipper Truck

2. Hohan tractor Truck/ prime mover truck

3. Truck with crane / Truck mounted crane

4. Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement trailer

10. High-altitude operation truck

11. Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )

新组合 3.jpg

挖掘机组合(23) 1.jpg
