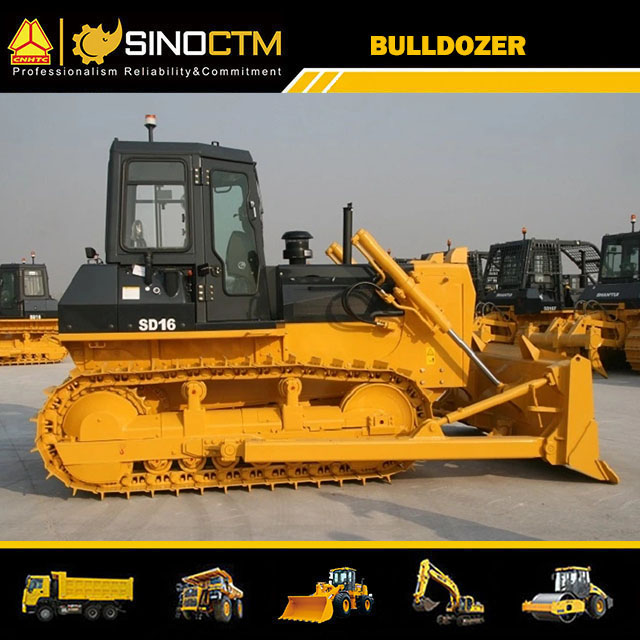

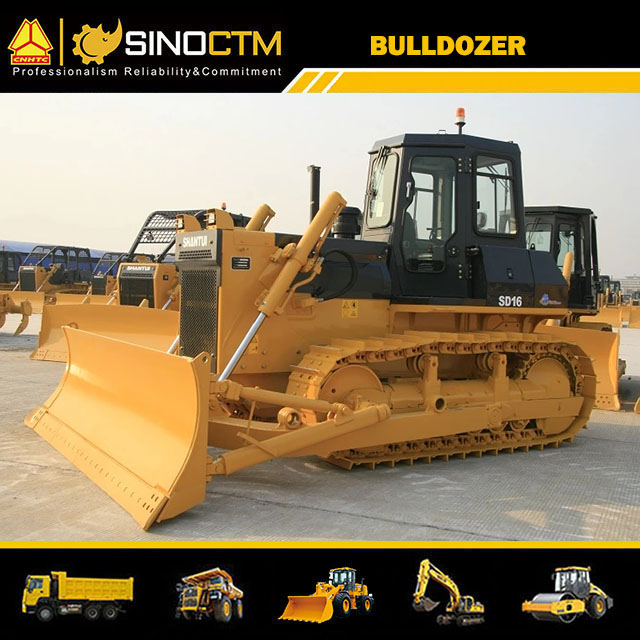

SHANTUI SD16 BULLDOZER 160hp
SHANTUI SD16 BULLDOZER
Operating weight: 17500kg
Engine model: Shangchai SC11CB184G2B1
Rated power: 120 kW/1850 rpm
Blade width:3388mm
Blade height:1149mm
Scraper capacity:3.7m³
Overall dimensions:6845x3388x3032mm
( with ripper )
Inquiry Now →

Product Description

企业横幅 6-2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg



SHANTUI SD16 BULLDOZER SPECIFICATIONS
ENGINE
ModelShangchai SC11CB184G2B1 / Weichai WD10G178E25; water-cooled, in-line, 4-stroke injection direct
Rated power120kw / 160hp
Number of cylinders6-126x130mm ( bore x stroke )
Piston displacement9.726L
Min. Fuel consumption214g/kW.h
Maximum torque765N.m@1300rpm
POWER TRANSMISSION SYSTEM
Torque converter3-element, 1 stage, 1 phase
TransmissionPlane tary type, power-shift, forced lubrication
Main driveSpiral bevel gear, single-stage speed reduction, splash lubrication
Steering clutchLubricated, multi-disc, spring loaded, hand hydraulically separated, inter-linking with steering brake
Steering brakeLubricated, floating band structure, foot brake with hydraulic booster
Final drive2-stage speed reduction of spur gear, splash lubrication
TRAVEL SPEED
Gear1st2nd3rd
Forward0-3.29km/h0-5.82km/h0-9.63km/h
Reverse0-4.28km/h0-7.59km/h0-12.53km/h
UNDERCARRIAGE SYSTEM
TypeSprayed beam, suspended structure of equalizer
Carrier rollers2 each side
Track rollers6 each side
Track typeAssembled, single-grouser
Width of track shoes510mm
Pitch203.2mm
HYDRAULIC SYSTEM
Maximum pressure14Mpa
Pump typeGear pump
Discharge243L/min
Bore of working cylinder * no110mm * 2
BLADE
Blade typeStraight tilt ( STANDARD )AngleU blade
Dozing capacity4.5m34.3m35.0m3
Efficiency( theoretical value 40m )225m3/h225m3/h250m3/h
Blade width3388mm3970mm3556mm
Blade height1149mm1040mm1120mm
Maximum drop below ground540mm540mm530mm
Maximum tilt adjustment400mm--400mm
RIPPER ( OPTIONAL )
Max digging depth of 3 shank ripper572mm
Max lift above ground592mm
Weight of 3 shank ripper1667kg


新组合 2.jpg

Shantui’s best-seller worldwide, this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g., desert, swamp, forest, high altitude, etc. It has a Tier II Cummins engine for European markets and optional engines (Weichai and Shangchai) for other markets.

The SD16 provides high performance with strong reliability, with Shantui’s trademark value.

新推土机组合 1.jpg
